GJN-06A

GJN-06A

  1. Analog output
  2. Excellent repeatability indicators
  3. Wide load resistance range
  4. Triangle precise mounting flange
  5. Successfully used in satellite control, microgravity measurement, main inertial navigation of the spacecraft re-entry module.
Categories: ,

Description

GJN-06A-I GJN-06A-II
Measurement range (g) ±20 ±25
Partial value (mg) ≤1 ≤5
Temperature coefficient (μg/°C) ≤10 ≤50
Monthly comprehensive error (1σ) (μg) ≤10 ≤60
Half year comprehensive error (1σ) (μg) ≤30 —
Scale factor (mA/g) 1.2 to 1.6 1.2 to 1.6
Temperature coefficient (10-6/°C) ≤10 ≤80
Monthly comprehensive error (1σ) (10-6) ≤10 ≤80
Half year comprehensive error (1σ) (10-6) ≤50 —
Second-order nonlinear coefficient (μg/g2) ≤10 ≤40
Threshold (μg) better than 1 better than 5
Resolution (μg) better than 1 better than 5
Input voltage (V) ± (12 ~ 18) ± (12 ~ 18)
Working temperature (°C) -45～+70 -45～+70
Weight (g) ≤70 ≤70

Environmental specification

Sinusoidal vibration Shock Storage temperature
15g (peak), 20Hz ~ 2000Hz; 100g, half sine, 8ms~12ms -55 ° C ~ +80 ° C



GJN-06A Drawings GJN-06A Wiring diagram

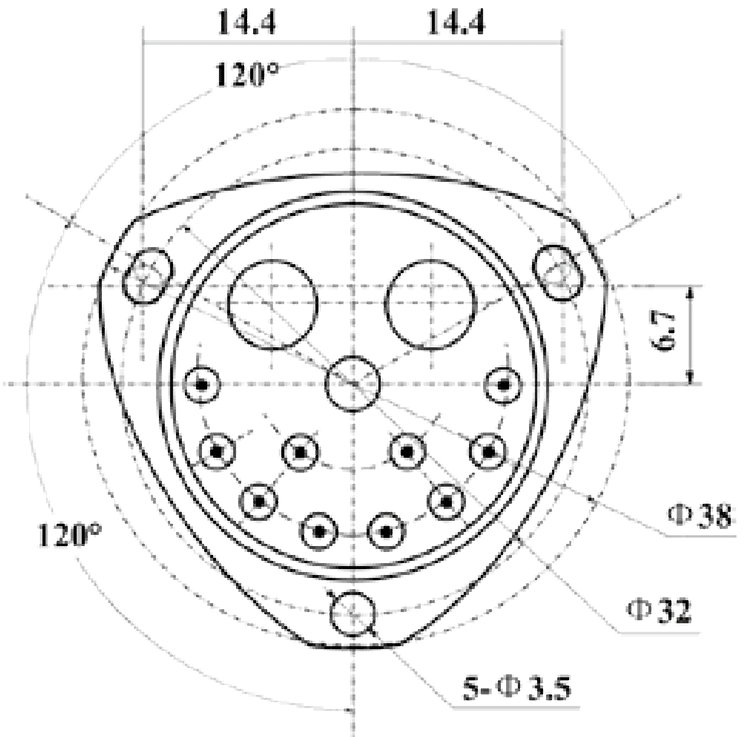

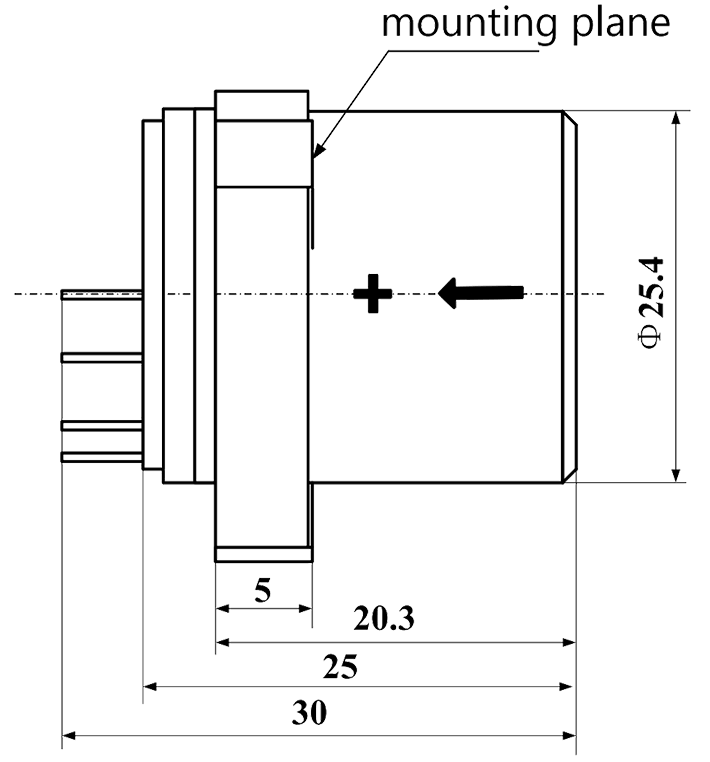

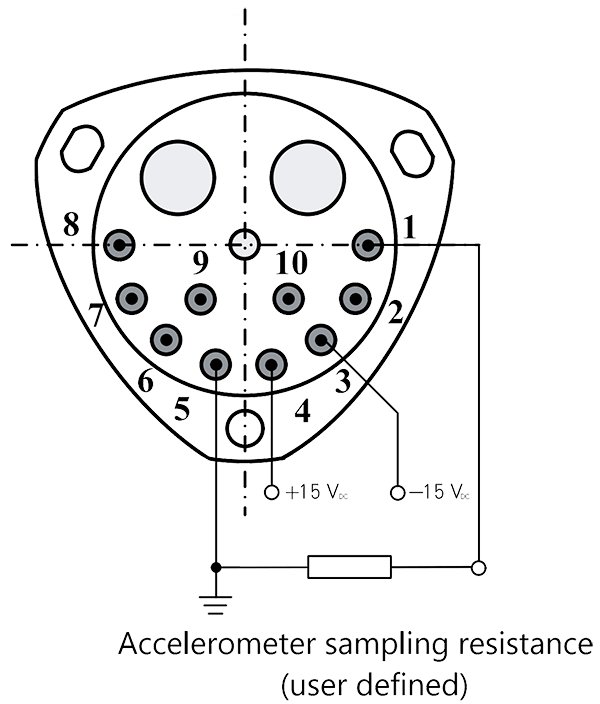

GJN 06A Drawings 03 - GJN-06A GJN 06A Drawings 06 - GJN-06A GJN 06A Wiring diagram - GJN-06A Pinout
1 Signal output
3 -15 Vdc power input
4 +15 Vdc power output
5 Signal and power supply
