GJN-06F

  1. Small size and light weight
  2. Analog output
  3. Shock and high temperature resistance
  4. Wide load resistance range
  5. Square precise mounting flange
  6. Successful inclination measurement system for oil Wells

Description

GJN-06F
Measurement range (g) ±10
Partial value (mg) ≤8
Temperature coefficient (μg/°C) ≤150
2h comprehensive error (1σ) (μg) ≤100
Scale factor (mA/g) 2.3 to 3.5
Temperature coefficient (10-6/°C) ≤150
2h comprehensive error (1σ) (10-6) ≤100
Input voltage (V) ± (12 ~ 18)
Working temperature (°C) -40~+100
Weight (g) ≤60

Environmental specification

Shock Storage temperature
500g, half sine, 1ms~3ms -55 ° C ~ +120 ° C

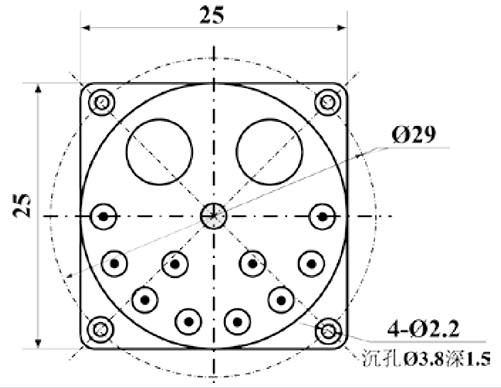

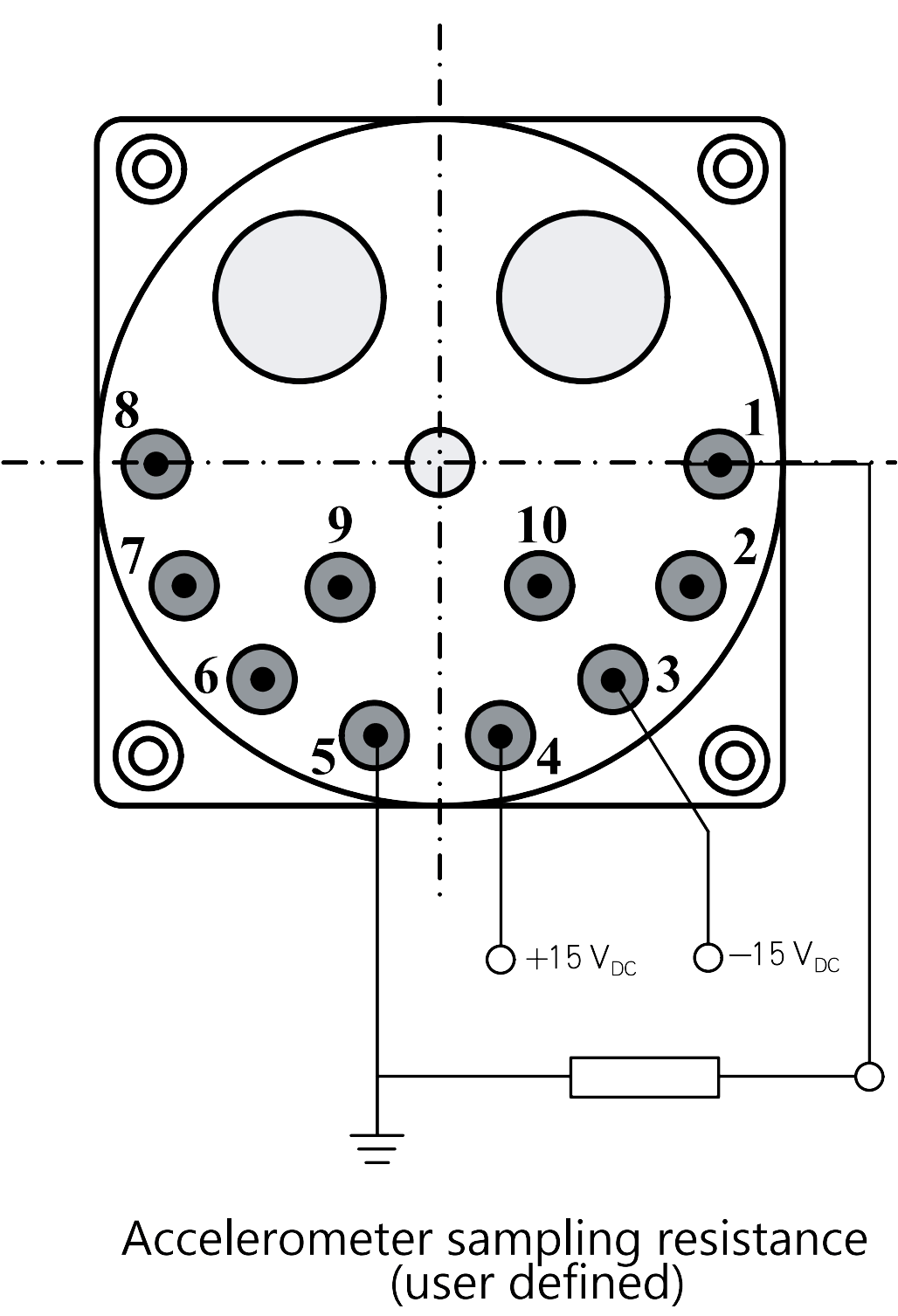

GJN-06F Drawings GJN-06F Wiring diagram
GJN 06F Drawings 03 1 - GJN-06F GJN 06F Drawings 07 1 - GJN-06F GJN 06F Wiring diagram 1 - GJN-06F Pinout
1 Signal output
3 -15 Vdc power input
4 +15 Vdc power output
5 Signal and power supply
