GJN-06K

  1. Small size and light weight
  2. Analog output
  3. Resistance to harsh environment
  4. Wide load resistance range
  5. Square precise mounting flange
  6. Successful measurement system for oil drilling

Description

GJN-06K
Measurement range (g) ±10
Partial value (mg) ≤10
Temperature coefficient (μg/°C) ≤150
2h comprehensive error (1σ) (μg) ≤100
Scale factor (mA/g) 2.3 to 3.5
Temperature coefficient (10-6/°C) ≤150
2h comprehensive error (1σ) (10-6) ≤100
Input voltage (V) ± (12 ~ 18)
Working temperature (°C) -40~+125
Weight (g) ≤60

Environmental specification

Shock Storage temperature
1000g, half sine, 0.5ms~3ms -55 ° C ~ +130 ° C



GJN-06K Drawings GJN-06K Wiring diagram

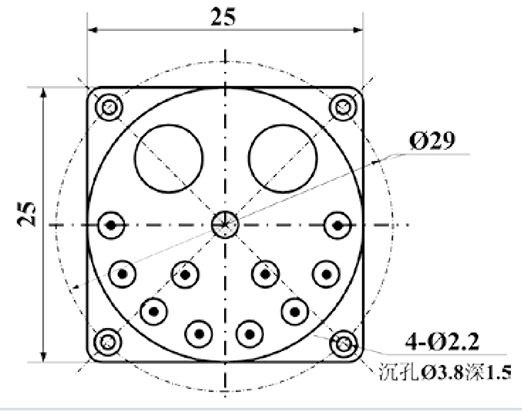

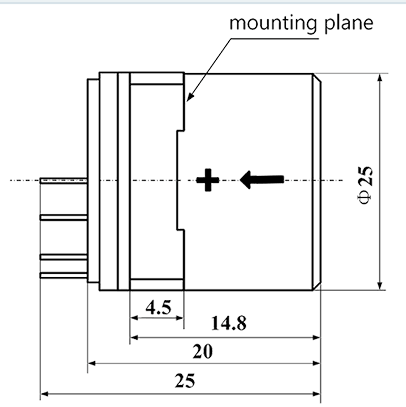

GJN 06F Drawings 03 - GJN-06K GJN 06F Drawings 07 - GJN-06K GJN 06F Wiring diagram - GJN-06K Pinout
1 Signal output
3 -15 Vdc power input
4 +15 Vdc power output
5 Signal and power supply
