GJN-06M

GJN-06M

  1. Built-in temperature sensor for error compensation through temperature modeling
  2. Analog output
  3. Good repeatability indicators
  4. Wide load resistance range
  5. Triangle precise mounting flange
  6. Successful implementation of engineering applications
Categories: ,

Description

GJN-06M-I GJN-06M-II
Measurement range (g) ±25 ±15
Partial value (mg) ≤3 ≤5
Temperature coefficient (μg/°C) ≤20 ≤50
Monthly comprehensive error (1σ) (μg) ≤20 ≤60
Scale factor (mA/g) 1.2 to 1.6 1.2 to 1.6
Temperature coefficient (10-6/°C) ≤40 ≤80
Monthly comprehensive error (1σ) (10-6) ≤30 ≤80
Second-order nonlinear coefficient (μg/g2) ≤15 ≤40
Threshold (μg) better than 5 better than 5
Resolution (μg) better than 5 better than 5
Temperature sensor output (μA) at 25 ° C 298.2 298.2
Temperature sensor scale factor: (μA/°C) 1 1
Input voltage (V) ± (12 ~ 18) ± (12 ~ 18)
Working temperature (°C) -45～+70 -45～+70
Weight (g) ≤70 ≤70



Environmental specification

Sinusoidal vibration Shock Storage temperature
16g (peak), 20Hz ~ 2000Hz; 100g, half sine, 8ms~12ms -55 ° C ~ +80 ° C

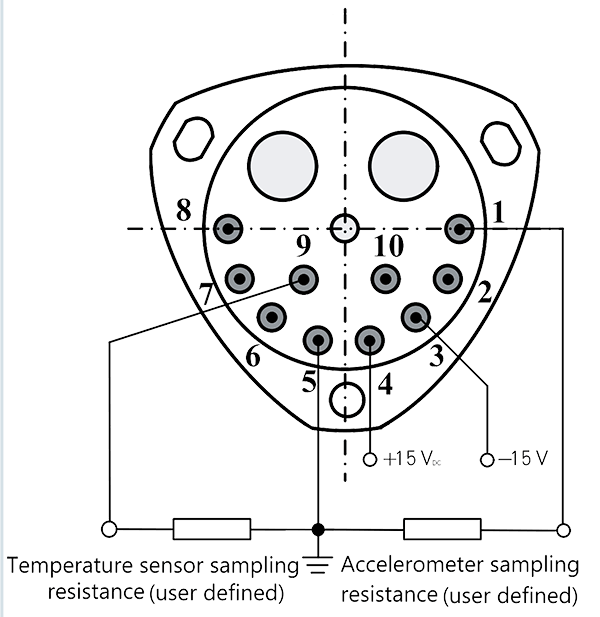

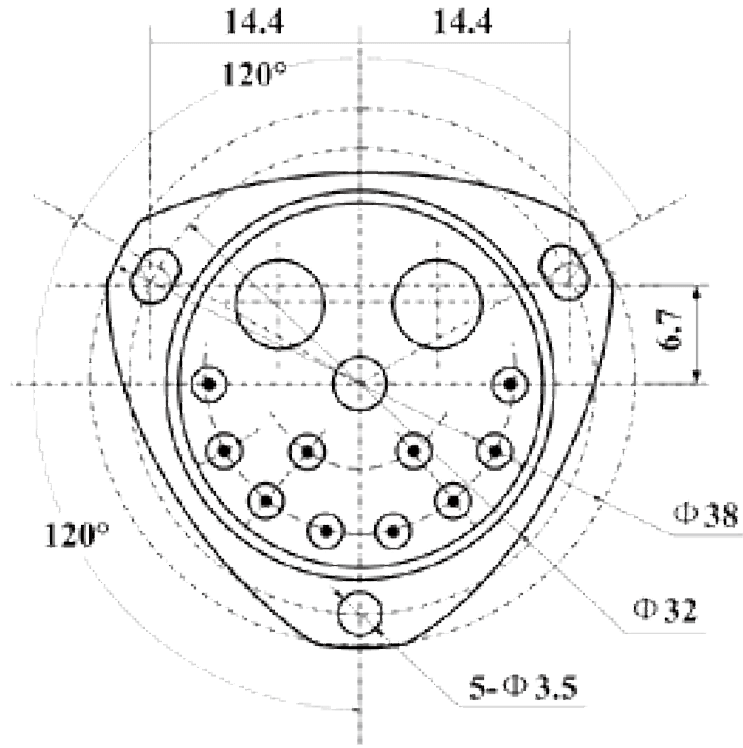

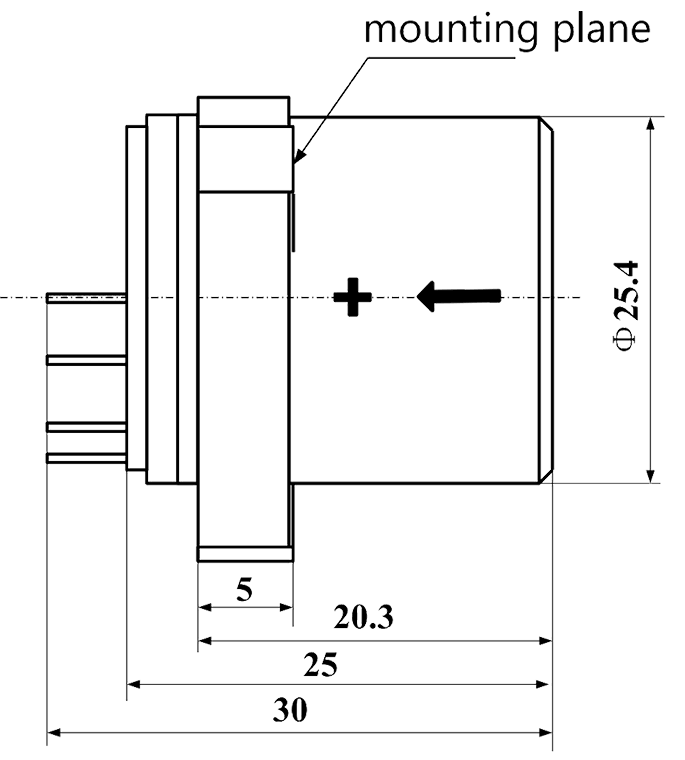

GJN-06M Drawings GJN-06M Wiring diagram
GJN 06M Drawings 02 - GJN-06M GJN 06M Drawings 06 - GJN-06M GJN 06M Wiring diagram - GJN-06M Pinout
1 Signal output
3 -15 Vdc power input
4 +15 Vdc power output
5 Signal and power supply
9 Temperature sensor output
