GJN-11

GJN-11

  1. Small size and light weight
  2. Analog output
  3. Good repeatability indicators
  4. Good shock and vibration resistance
  5. Wide load resistance range
  6. Square precise mounting flange
  7. Wide operating temperature range
Categories: ,

Description

GJN-11
Measurement range (g) ±20
Partial value (mg) ≤8
Temperature coefficient (μg/°C) ≤50
Monthly comprehensive error (1σ) (μg) ≤100
Scale factor (mA/g) 1.0 to 1.6
Temperature coefficient (10-6/°C) ≤100
Monthly comprehensive error (1σ) (10-6) ≤100
Second-order nonlinear coefficient (μg/g2) ≤40
Threshold (μg) better than 5
Resolution (μg) better than 5
Input voltage (V) ± (12 ~ 18)
Working temperature (°C) -45～+70
Weight (g) ≤60



Environmental specification

Sinusoidal vibration Shock Storage temperature
25g (peak), 30Hz ~ 500Hz; 500g, half sine, 1ms~3ms -55 ° C ~ +120 ° C



GJN-11 Drawings GJN-11 Wiring diagram

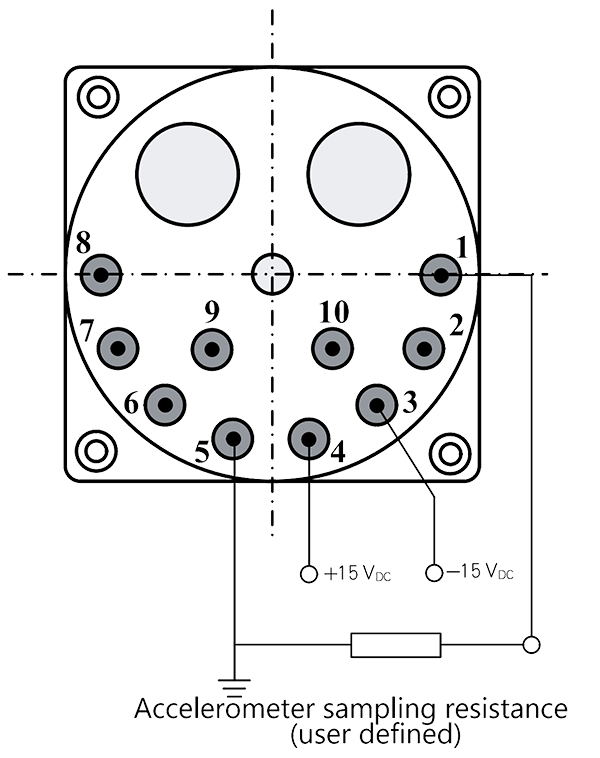

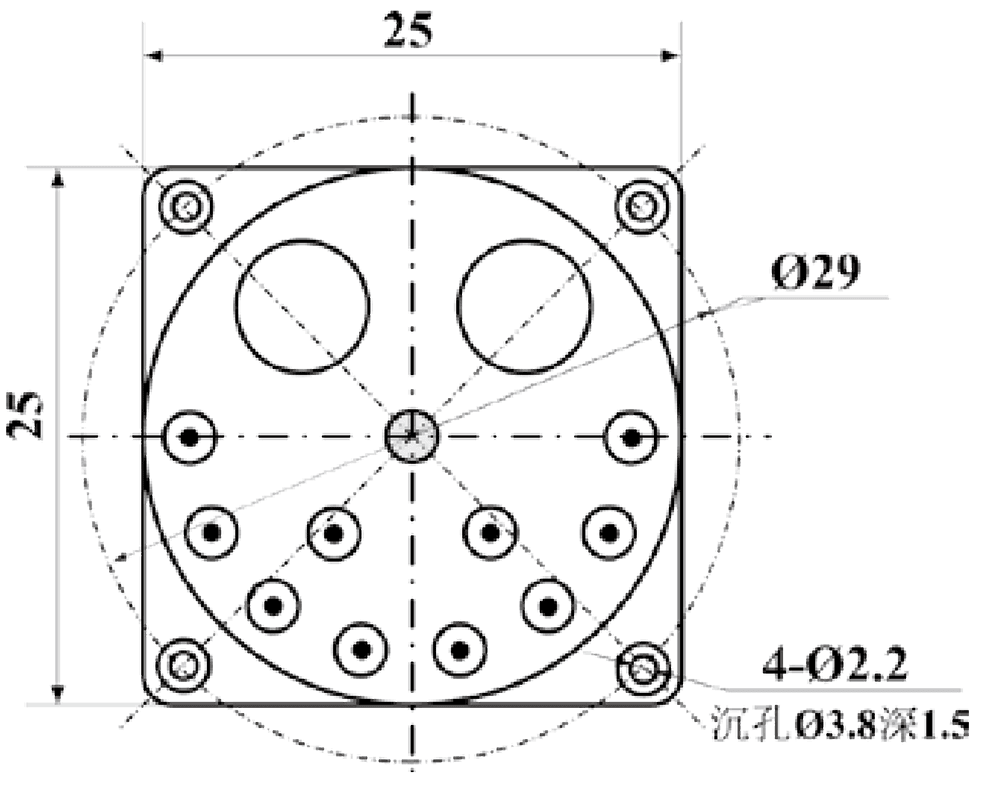

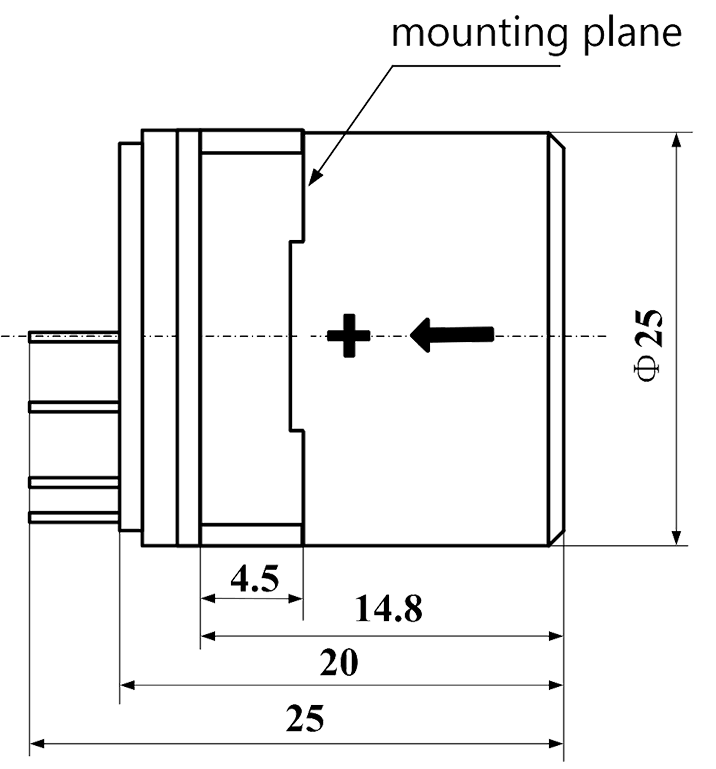

GJN 11 Drawings 03 - GJN-11 GJN 11 Drawings 07 - GJN-11 GJN 11 Wiring diagram - GJN-11 Pinout
1 Signal output
3 -15 Vdc power input
4 +15 Vdc power output
5 Signal and power supply
