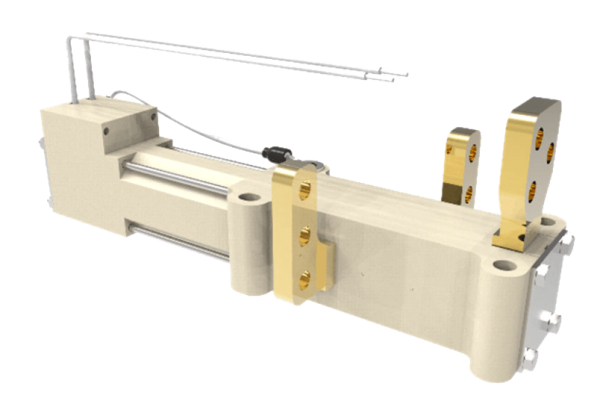

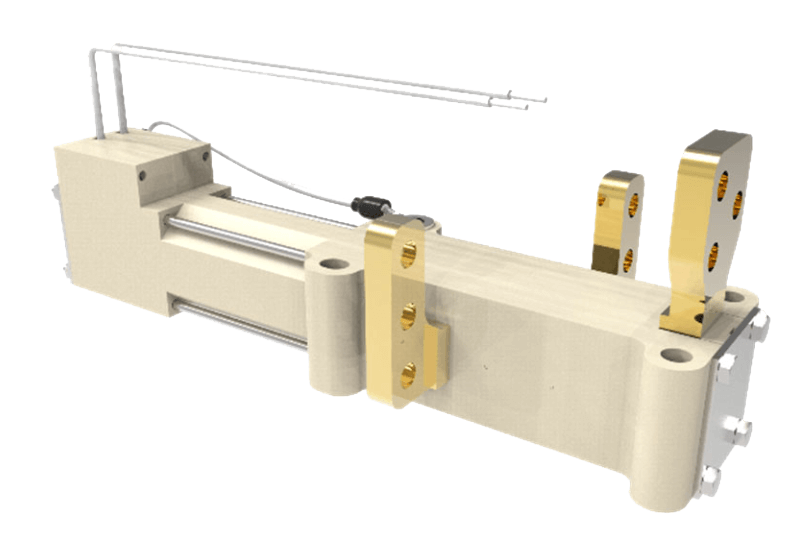

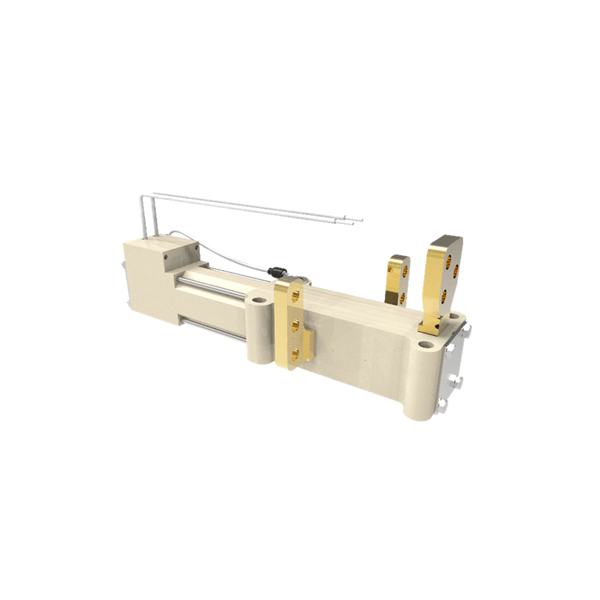

Specifications
| Characteristics | Parameter | |||||||
| Quality Grade | YC | |||||||
| Operating Temperature | -55°C ~ 85°C | |||||||
| Constant Damp Heat Test | 40°C (95%, 96 h) | |||||||
| Low Pressure Test | 4.39 kPa | |||||||
| Sinusoidal Vibration | 245 m/s2 (5 ~ 100Hz) | |||||||
| Random Vibration | 20 Hz | 100 Hz~400 Hz | 800 Hz | 1200 Hz | 1500 Hz | 2000 Hz | ||
| 6 (m/s2)2/Hz | 30 (m/s2)2/Hz | 34 (m/s2)2/Hz | 46 (m/s2)2/Hz | 8 (m/s2)2/Hz | 6 (m/s2)2/Hz | |||
| Shock Response Spectrum | 100 Hz | 400 Hz | 1000 Hz | 2500 Hz ~ 10000 Hz | ||||
| 300 m/s2 | 2000 m/s2 | 5800 m/s2 | 1300 m/s2 | |||||
| Acceleration | 490 m/s2。 | |||||||
| Circuitry | SPDT | |||||||
| Weight | < 120 g | |||||||
| Rated Trigger Current | 6 A | |||||||
| Non-fusing Current | 0.5 A | |||||||
| Actuating time | < 15 ms | |||||||
| Fusing time | ≤ 0.8 ms | |||||||
Electrical Ratings
| Contact Rating | 220 A |
| Contact Resistance | ≤ 0.14 MΩ |
| Insulation Resistance | ≥ 100 MΩ (Normal Temperature and Humidity) |
| ≥ 10 MΩ (High Temperature and Normal Humidity) | |
| Dielectric Withstanding Voltage | ≥ 500 Vr.m.s. (Normal Conditions) |
| ≥ 200 Vr.m.s. (Low Pressure) |

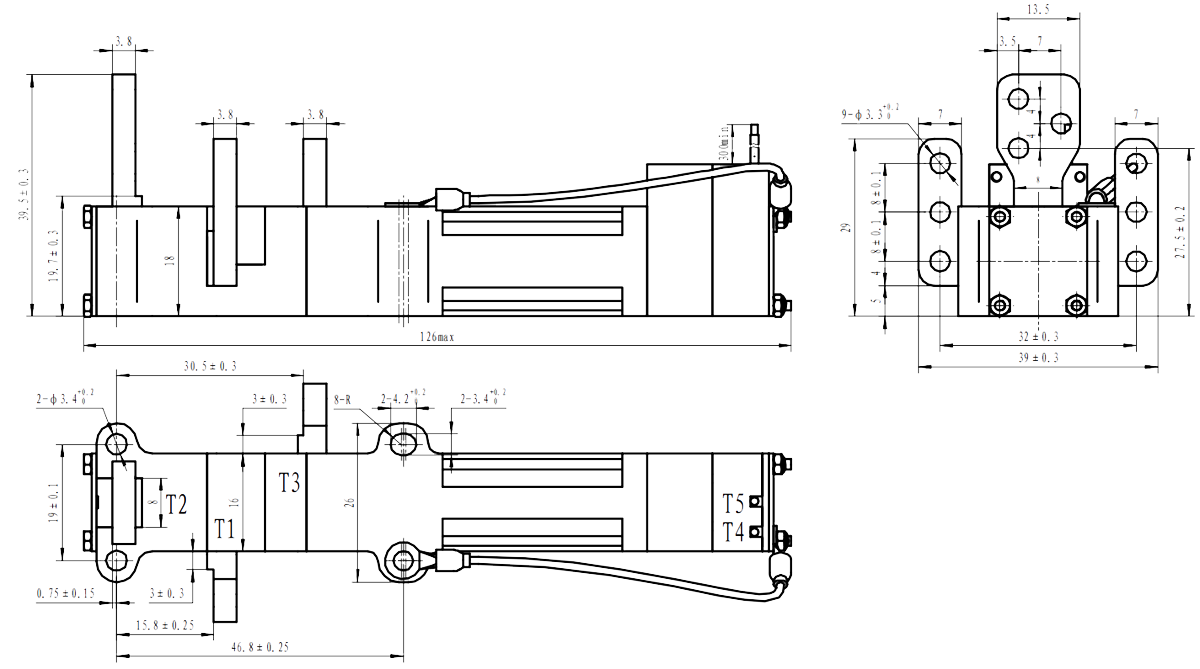

Dimension |

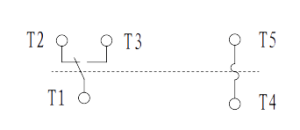

Circuit Diagram |
|
|
|
Order Mark
| 1KP200-1 | YC |
| Part Number | Quality Grade |
Technical Specification: Q/QJA 20122/17-2018
