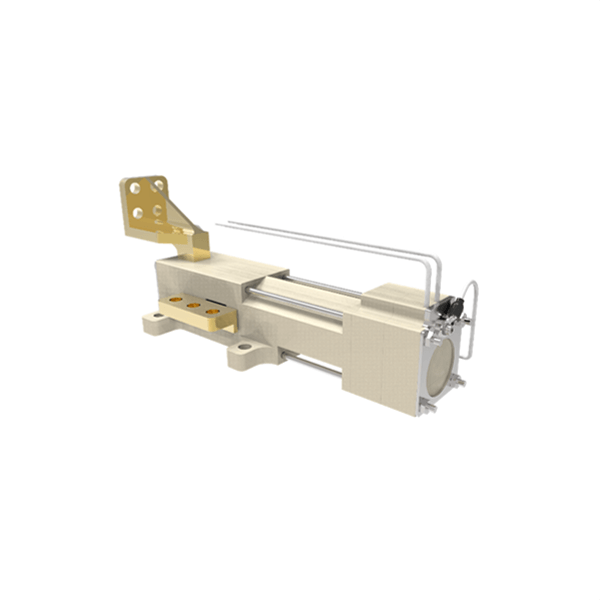

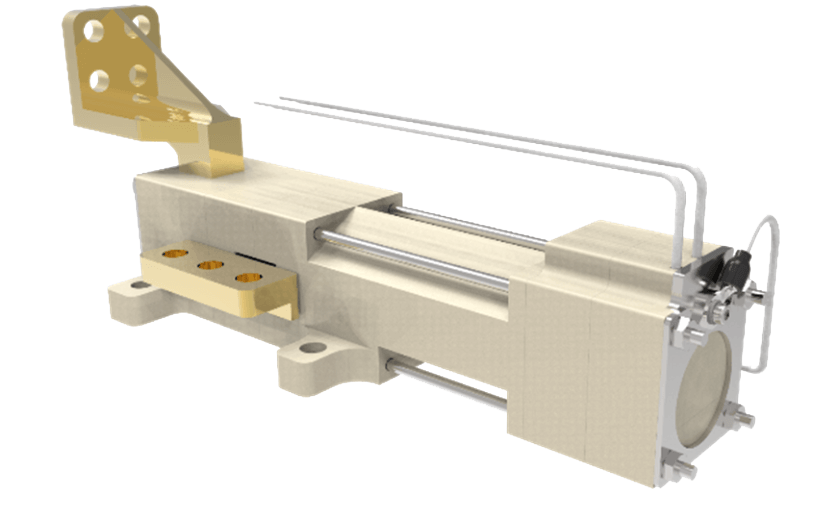

Specifications
| Characteristics |
Parameter |
| Quality Grade |
YC |
| Operating Temperature |
-55 °C ~ 85°C |
| Constant Damp Heat Test |
40°C (95%, 96 h) |
| Low Pressure Test |
439 kPa |
| Sinusoidal Vibration |
245 m/s2 (5 ~ 100Hz) |
| Random Vibration |
20 Hz |
100 Hz ~ 400 Hz |
800 Hz |
1200 Hz |
1500 Hz |
2000 Hz |
| 6 (m/s2)2/Hz |
30 (m/s2)2/Hz |
34 (m/s2)2/Hz |
46 (m/s2)2/Hz |
8 (m/s2)2/Hz |
6 (m/s2)2/Hz |
| Shock Response Spectrum |
100 Hz ~ 1500 Hz |
1500 Hz ~ 10000 Hz |
| +6 dB/Oct |
20000 m/s2 |
| Acceleration |
490 m/s2 |
| Circuitry |
SPDT |
| Weight |
< 250 g |
| Rated Trigger Current |
6 A |
| Non-fusing Current |
0.5 A |
| Actuating Time |
< 12 ms |
| Fusing Time |
≤ 0.6 ms |
Electrical Ratings
| Contact Rating |
400 A |
| Contact Resistance |
≤ 0.10 MΩ |
| Insulation Resistance |
≥ 100 MΩ (Normal Temperature and Humidity) |
| ≥ 10 MΩ (High Temperature and Normal Humidity) |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. (Normal Conditions) |
| ≥ 200 Vr.m.s. (Low Pressure) |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 1KP400-1 |
YC |
| Part Number |
Quality Grade |
Technical Specification: Q/QJA 20122/18-2018
