Specifications
| Characteristics | Parameter | |||||
| Quality Grade | YC | |||||
| Operating Temperature | -55°C ~ 85°C | |||||
| Constant Damp Heat Test | 40°C (95%, 96 h) | |||||
| Low Pressure Test | 439 kPa | |||||
| Sinusoidal Vibration | 245 m/s2 (5 ~ 100Hz) | |||||
| Random Vibration | 20 Hz | 100 Hz ~ 400 Hz | 800 Hz | 1200 Hz | 1500 Hz | 2000 Hz |
| 6 (m/s2)2/Hz | 30 (m/s2)2/Hz | 34 (m/s2)2/Hz | 46 (m/s2)2/Hz | 8 (m/s2)2/Hz | 6 (m/s2)2/Hz | |
| Shock Response Spectrum | 100 Hz ~ 1500 Hz | 1500 Hz ~ 10000 Hz | ||||
| +6 dB/Oct | 20000 m/s2 | |||||
| Acceleration | 490 m/s2 | |||||
| Circuitry | SPDT | |||||
| Weight | < 230 g | |||||
| Rated Trigger Current | 6 A | |||||
| Non-fusing Current | 0.5 A | |||||
| Actuating time | < 12 ms | |||||
| Fusing time | ≤ 0.6 ms | |||||
Electrical Ratings
| Contact Rating | 400 A |
| Contact Resistance | ≤ 0.10 MΩ |
| Insulation Resistance | ≥ 100 MΩ (Normal Temperature and Humidity) |
| ≥ 10 MΩ (High Temperature and Normal Humidity) | |
| Dielectric Withstanding Voltage | ≥ 500 Vr.m.s (Normal Conditions) |
| ≥ 200 Vr.m.s (Low Pressure) |

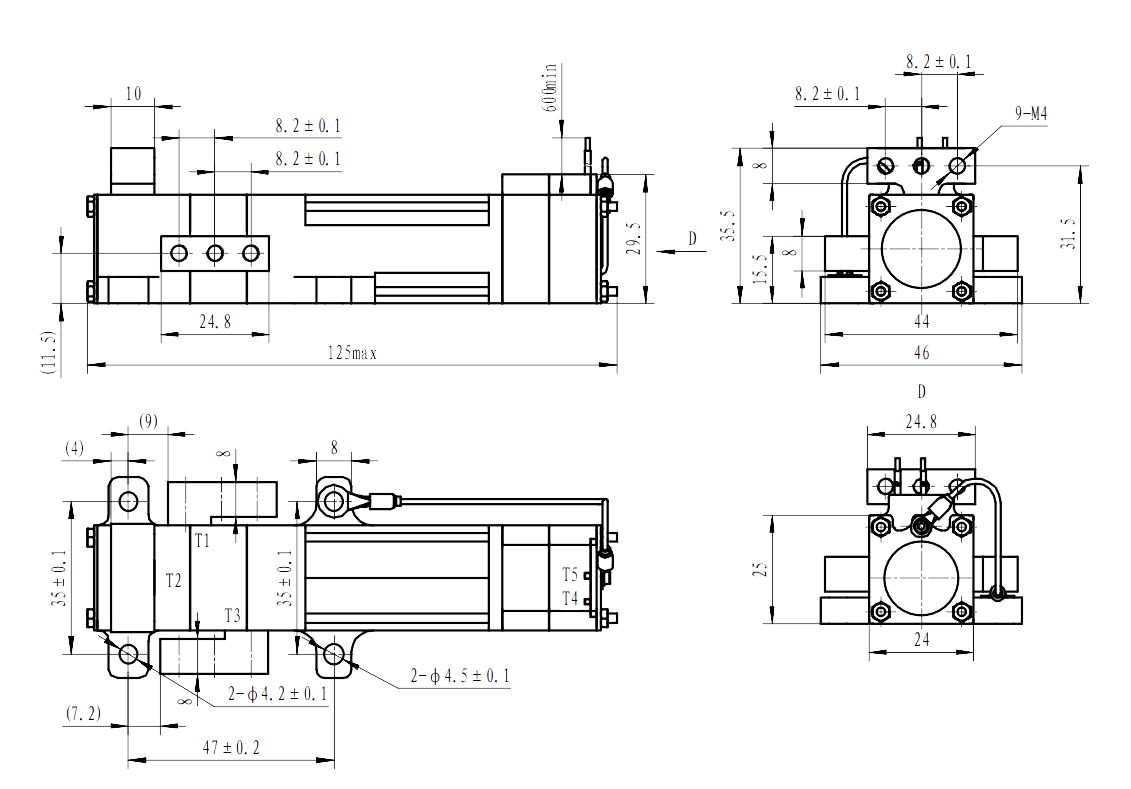

Dimension |

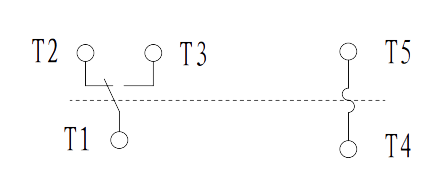

Circuit Diagram |
 |
 |
Order Mark
| 1KP400-2 | YC |
| Part Number | Quality Grade |
Technical Specification: Q/QJA 20122/19-2018
