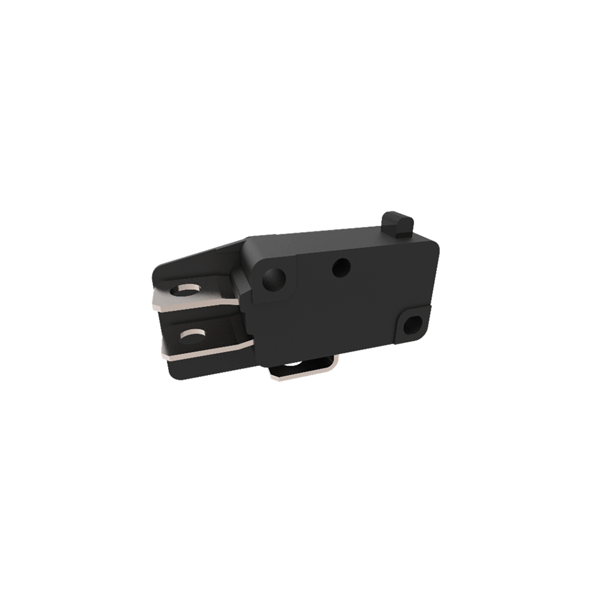

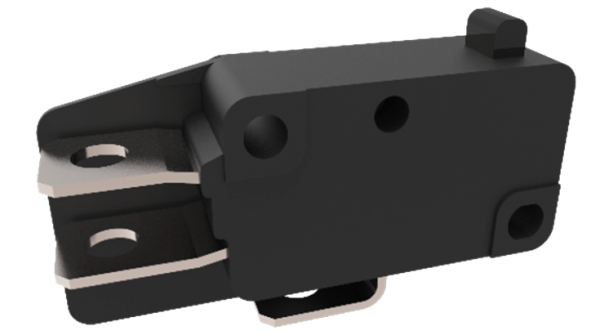

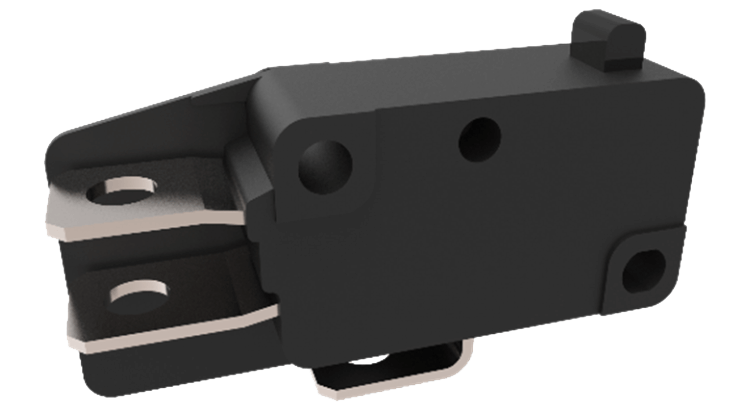

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Relative Humidity |
30°C ~ 60°C, relative humidity ≥ 85% |
| Low Pressure Test |
4.4 kpa |
| High-Frequency Vibration |
10 Hz ~ 500 Hz |
| 98 (m/s2)2/Hz |
| Shock |
490 m/s2 |
| Acceleration |
196 m/s2 |
| Circuitry |
1 Bridge Converter |
| Weight |
≤ 12 g |
| Connection Types |
Soldering Terminal |
| Pretravel |
14.7 mm ± 0.4 mm |
| Overtravel |
≥ 1.0 mm |
| Differential Travel |
≤ 0.4 mm |
| Pretravel Force |
≤ 4 N |
| Differential Travel Force |
≥ 0.12 N |
| Mechanical Life |
100000 cycles |
| Electrical Life |
30000 cycles |
Electrical Ratings
| Contact Rating |
250 Va.c., 21 A |
| Contact Resistance |
≤ 15 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 1000 Vr.m.s. |
Dimension
|

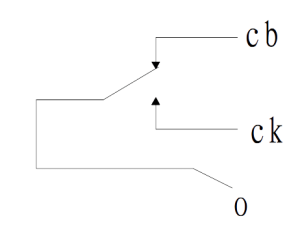

Circuit Diagram
|
|
 |
Order Mark
| 1KW21-1 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.60002-2021
