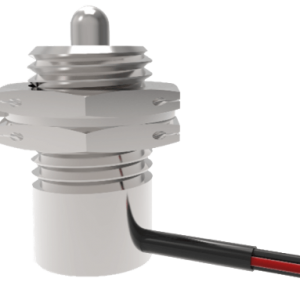

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Relative Humidity |
(40 ± 2) °C, 90% ~ 95% |
| Low Pressure |
0.67 kPa ~ 0.27 kPa |
| Random Vibration |
10 Hz ~ 221 Hz |
221 Hz ~ 300 Hz |
300 Hz ~ 1000 Hz |
100 Hz ~ 2000 Hz |
| 8 (m/s2)2/Hz |
+4 dB/Oct |
12 (m/s2)2/Hz |
-6 dB/Oct |
| Shock Response Spectrum |
7000 m/s2 |
| Circuitry |
1 NC |
| Weight |
≤ 89 g |
| Connection Types |
Y4-4TK Plug |
| Pretravel |
1 mm ~ 1.5 mm |
| Total Travel |
5 mm ± 0.35 mm |
| Total Travel Force |
≤ 20 N |
| Cable Length |
1000 mm |
| Life |
2000 cycles |
Electrical Ratings
| Contact Rating |
28 Vd.c., 1 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.65 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|

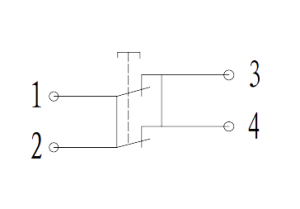

Circuit Diagram
|
 |
 |
Order Mark

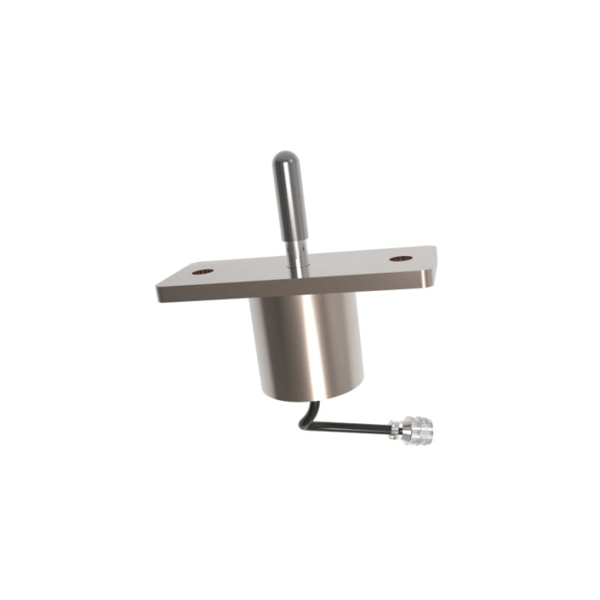

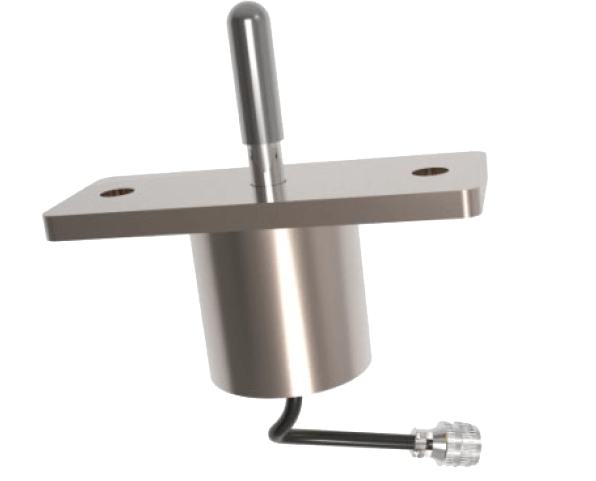

| 1KX-3B |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01421-2020
