1KX0.5-1 Travel Switch

1KX0.5-1 Travel Switch

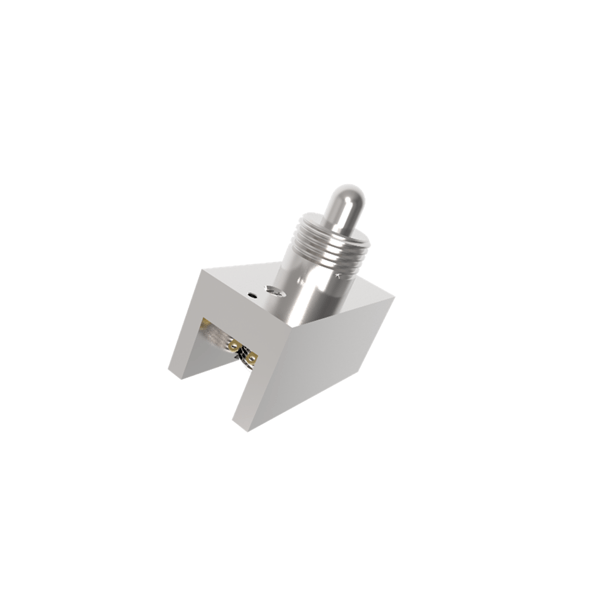

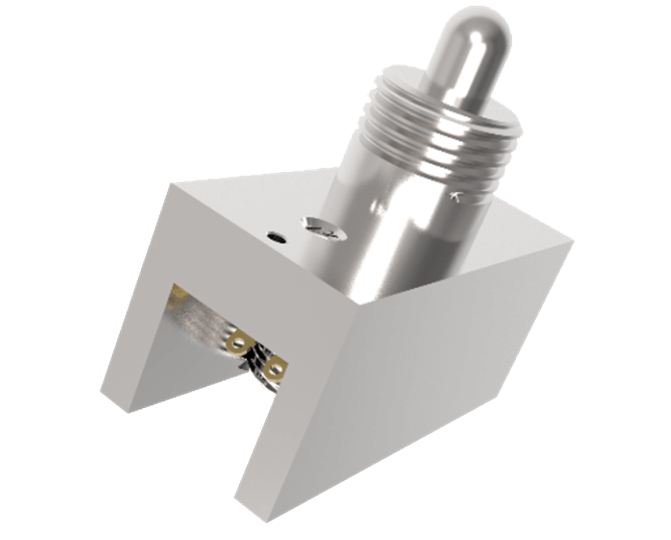

The switch features compact and narrow.
Excellent rain-proof performance.
The switch withstands intense vibration and impact.
Applied to aerospace, aviation, weapons, and other military electronic devices.

Category: Travel Switch

Description

Specifications

Characteristics	Parameter
Quality Grade	Quality Grade
Operating Temperature	-54°C ~ 65°C
Alternating Damp Heat Test	30°C ~ 60°C (95%, 240 h)
Low Pressure Test	2.53 kPa
Flight Vibrations (20min/Dir)	20 Hz ~ 300 Hz	300 Hz ~ 400 Hz	400 Hz ~ 1400 Hz	1400 Hz ~ 2000 Hz
	1 (m/s²)²/Hz	+3 dB/Oct	2.5 (m/s²)²/Hz	-3 dB/Oct
Shock	120 m/s²
Steady-State Acceleration	500 m/s²
Circuitry	1 NC
Weight	≤ 210 g
Connection Types	Solder Strip
Pretravel	0.6 mm ~ 1.3 mm
Travel	3 mm ~ 7 mm
Travel Force (7mm)	≥ 30 N
Electrical Life	1000 cycles

Electrical Ratings

Contact Rating	54 Vd.c., 0.05 A
Contact Resistance	≤ 0.05 Ω
Insulation Resistance	≥ 300 MΩ
Dielectric Withstanding Voltage	500 Vr.m.s

Dimension

Circuit Diagram

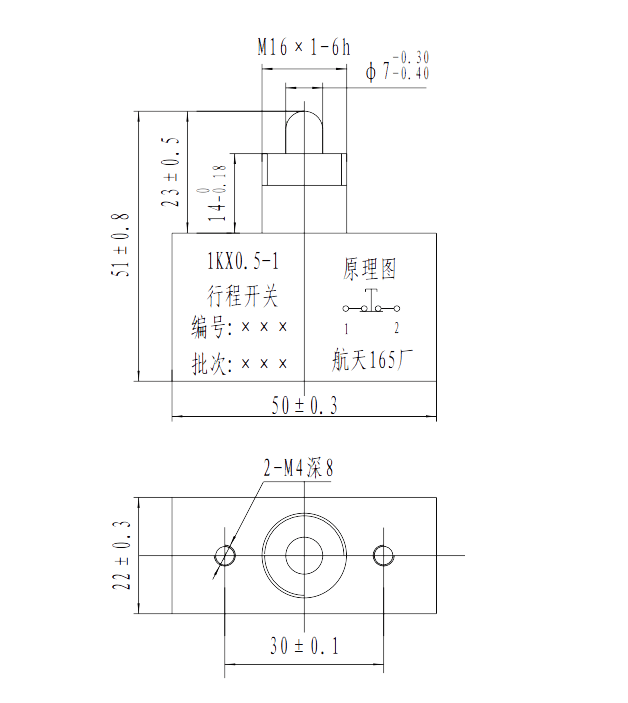

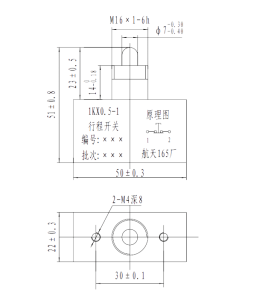

1KX0.5 1 Dimensions png

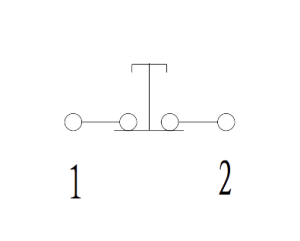

1KX0.5 1 Circuit Diagram png

Order Mark

1KX0.5-1	Ⓙ
Part Number	Quality Grade

Technical specification: RY3.604.044JT
