Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-25°C ~ 65°C |
| Thermal Shock Test |
-25°C ~ 65°C, 95% |
| Underwater Sealing Test |
0.6 MPa (Underwater 60 meters) |
| Sinusoidal Vibration |
10 Hz ~ 50.7 Hz |
50.7 Hz ~ 500 Hz |
| Single-Sided Amplitude 0.75 mm |
100 m/s2 |
| Random Vibration |
50Hz ~ 100Hz |
100 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +6 dB/Oct |
20 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
500 m/s2 |
| Circuitry |
1 NO |
| Weight |
≤ 70 g |
| Connection Types |
CY52BP2HJ-01 receptacle |
| Pretravel (angle) |
90° ± 5° |
| Cable Length |
350 mm ± 20 mm |
| Life Underwater |
3000 cycles |
Electrical Ratings
| Contact Rating |
1 A, 26 Vd.c. |
| Contact Resistance
(Including resistance of cable) |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

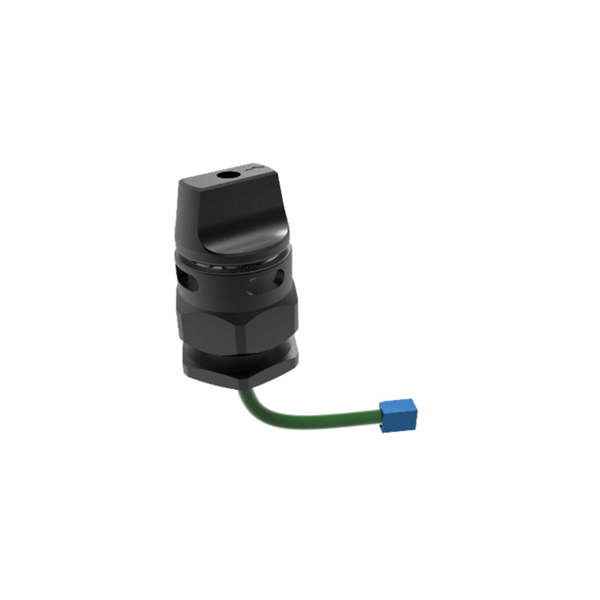

| 1KX1-10 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.603.004JT
