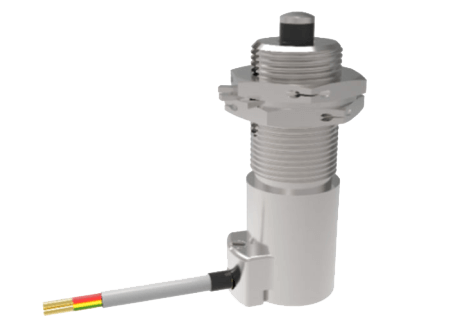

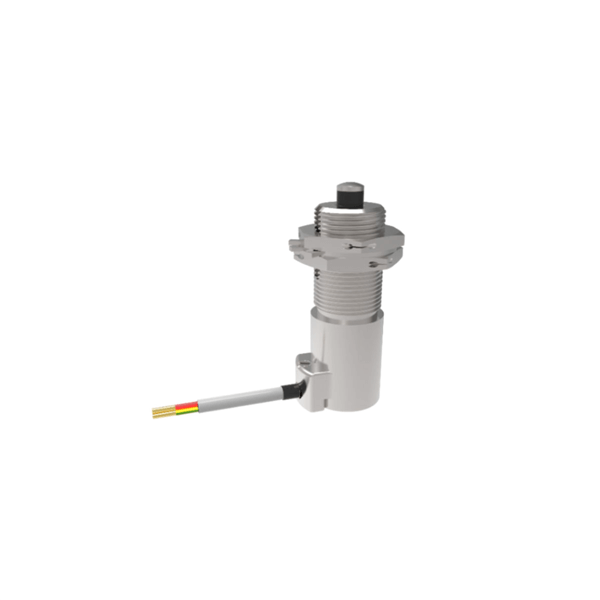

1KX1-1AG Travel Switch

Excellent rain-proof performance.
Button is self-lubricating.
The nut has built-in wirelock holes and lock washer.
Adapt to vacuum environments such as vacuum cold soldering, vacuum discharge, and vacuum degassing.
Applied to aerospace, aviation, weapons, and other military electronic devices.

Characteristics	Parameter
Quality Grade	Military Products（Ⓙ）
Operating Temperature	-55°C ~ 80°C
Thermal Shock	-55°C ~ 80°C, Insulate for 1 hour at extreme temperature, 3 cycles
High Temperature Test	Storage: 80°C, 48 h; Working：80°C, 2 h
Low Temperature Test	Storage: -55°C, 24 h; Working：-55°C, 2 h
Constant Damp Heat Test	40°C ± 5°C, relative humidity 92% ~ 98%, 48 h
Thermal Cycling	-55°C ~ 80°C, Insulate for 5 hours at extreme temperature, 25.5 cycles
Thermal Vacuum	≤ 6.65X10^-3 pa, -55°C ~ 80°C, Insulate for 5 hours at extreme temperature, 6.5 cycles
Random Vibration	20 Hz ~ 50 Hz	50 Hz ~1 00 Hz	100 Hz ~ 1000 Hz	1000 Hz ~ 2000 Hz	Root Mean Square Acceleration
	9 (m/s²)²/Hz	+4 dB/Oct	22.5 (m/s²)²/Hz	-6 dB/Oct	180 m/s²
Shock	45000 m/s²
Overload	70 m/s²
Circuitry	SPDT
Weight	≤ 240 g
Connection Types	3 Core Shielded Cable
NC Off Travel	1.5 mm ± 0.4 mm
NO On Travel	2.50 -0.4 mm
Total Travel	5 mm ± 0.5 mm
Force at 4mm Travel	≥ 40 N，≤ 60 N
Total Travel Force	≥ 40 N，≤ 70 N
Cable Length	5000 mm
Life	5000 cycles

Contact Rating	1 A, 28 Vd.c.
Contact Resistance (Including resistance of cable)	≤ 0.88 Ω
Insulation Resistance	≥ 1000 MΩ
Dielectric Withstanding Voltage	500 Vr.m.s.
