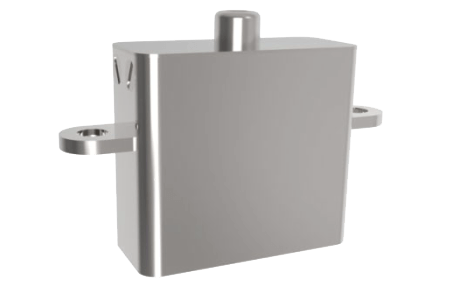

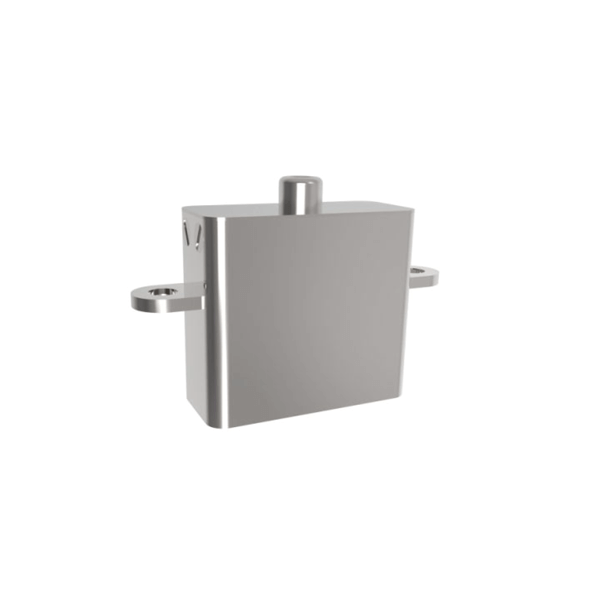

Specifications
| Characteristics | Parameter | |||||||
| Quality Grade | Military Products（Ⓙ） | |||||||
| Operating Temperature | -45°C ~ 70°C | |||||||
| Relative Humidity | 40°C ± 2°C, relative Humidity 95% ± 3% | |||||||
| Low Pressure Test | 10-2 pa | |||||||
| Random Vibration | 10 Hz | 100 Hz | 200 Hz | 300 Hz | 500 Hz | 800 Hz | 1500 Hz | 2000 Hz |
| 1.2 (m/s2)2/Hz | 12 (m/s2)2/Hz | 12 (m/s2)2/Hz | 24 (m/s2)2/Hz | 24 (m/s2)2/Hz | 36 (m/s2)2/Hz | 36 (m/s2)2/Hz | 9 (m/s2)2/Hz | |
| Shock | 5000 m/s2 | |||||||
| Shock Response Spectrum | 60000 m/s2 | |||||||
| Acceleration | 180 m/s2 | |||||||
| Circuitry | 1 NO | |||||||
| Weight | ≤ 70 g | |||||||
| Connection Types | Solder Strip | |||||||
| Pretravel | 1.8 mm ~ 2.4 mm | |||||||
| Total Travel | 5 mm ± 0.3 mm | |||||||
| Total Travel Force | ≤ 88 N | |||||||
| Differential Travel Time | ≤ 10 ms | |||||||
| Mechanical Life | 1000 cycles | |||||||
Electrical Ratings
| Contact Rating | 27 Vd.c., 1 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.05 Ω |
| Insulation Resistance | ≥ 500 MΩ |
| Dielectric Withstanding Voltage | ≥ 500 Vr.m.s. |
Dimension |
Circuit Diagram |
 |
|
Order Mark
| 1KX1-2 | Ⓙ |
| Part Number | Quality Grade |
Technical specification: RY3.604.089JT
