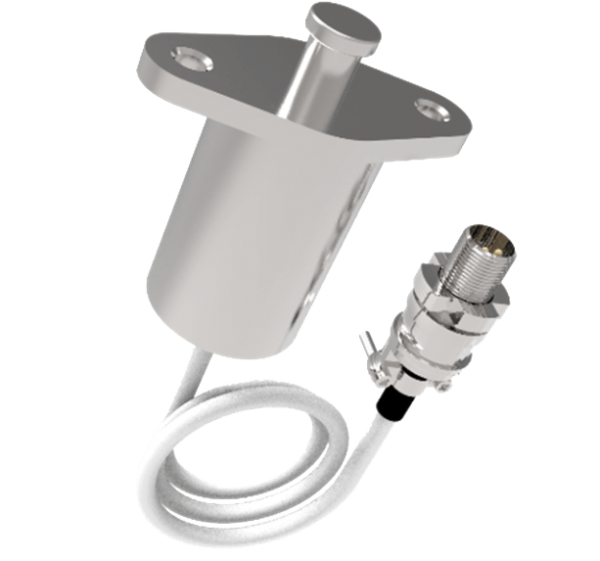

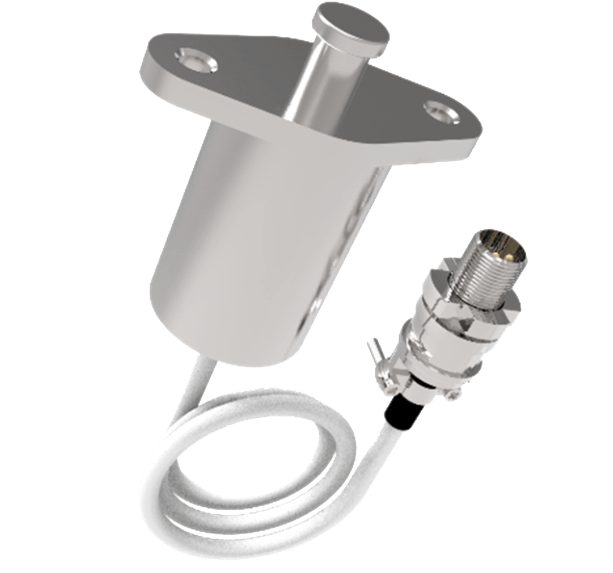

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products（Ⓙ） |
| Operating Temperature |
-40°C ~ 70°C |
| Low Pressure Test |
< 1 Pa |
| High Temperature Working |
70°C, 0.5 h |
| Low Temperature Working |
-40°C, 0.5 h |
| Random Vibration |
10 Hz |
100 Hz |
800 Hz |
2000 Hz |
| 4.8 (m/s2)2/Hz |
48 (m/s2)2/Hz |
48 (m/s2)2/Hz |
7.68 (m/s2)2/Hz |
| Sinusoidal Scanning |
5 Hz ~ 8 Hz |
8 Hz ~ 25 Hz |
25 Hz ~ 35 Hz |
35 Hz ~ 50 Hz |
50 Hz ~ 60 Hz |
60 Hz ~ 100 Hz |
| Single-Sided Amplitude 10.54 mm |
27 m/s2 |
↗ |
54 m/s2 |
↘ |
27 m/s2 |
| Shock |
30000 m/s2 |
| Acceleration |
160 m/s2 |
| Circuitry |
1 NO |
| Weight |
≤ 170 g |
| Connection Types |
Y8C-4ZJL receptacle |
| Pretravel |
3.5 mm ± 0.3 mm |
| Total Travel |
6 mm ± 0.5 mm |
| Total Travel Force |
≤ 70 N |
| Cable Length |
800 mm |
| Electrical Life |
500 cycles |
| Mechanical Life |
2500 cycles |
Electrical Ratings
| Contact Rating |
28.5 Vd.c., 1 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.75 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 1000 Vr.m.s. |
Dimension
|

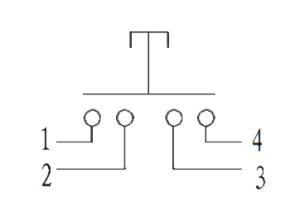

Circuit Diagram
|
 |
 |
Order Mark
| 1KX1-3 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01398A-2023
