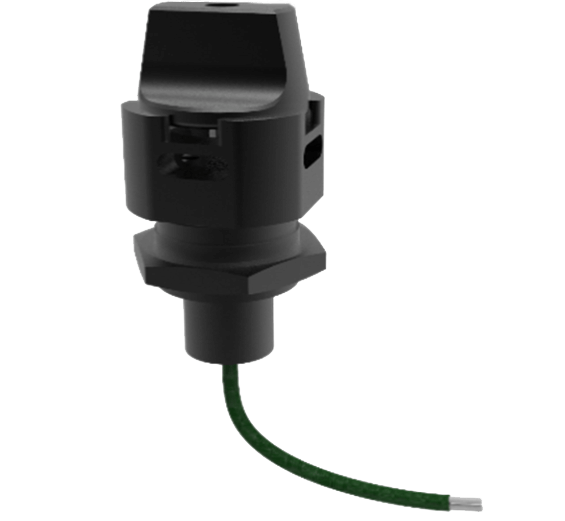

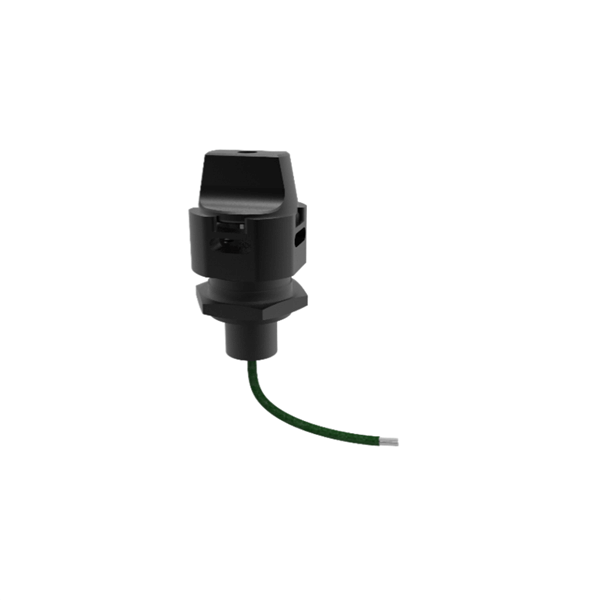

Specifications
| Characteristics | Parameter | |||
| Quality Grade | Military Products (Ⓙ) | |||
| Operating Temperature | -25°C ~ 65°C | |||
| Thermal Shock | -25°C ~ 65°C, 95% | |||
| Underwater Sealing Test | 0.6 MPa (60 meters underwater) | |||
| Sinusoidal Vibration | 10 Hz ~ 50.7 Hz | 50.7 Hz ~ 500 Hz | ||
| Single-Sided Amplitude 0.75 mm | 100 m/s2 | |||
| Random Vibration | 50 Hz ~ 100Hz | 100 Hz ~ 1000 Hz | 1000 Hz ~ 2000 Hz | |
| +6 dB/Oct | 20 (m/s2)2/Hz | -6 dB/Oct | ||
| Shock | 500 m/s2 | |||
| Circuitry | 1 NO | |||
| Weight | ≤ 70 g | |||
| Connection Types | Wires | |||
| Pretravel (angle) | 90° ± 5° | |||
| Total Pressure Force | 40 N ± 10 N | |||
| Operation | Press and rotate, circuit connection | |||
| Cable Length | 300+20 0 mm | |||
| Life Underwater | 3000 cycles | |||
Electrical Ratings
| Contact Rating | 1 A, 26 Vd.c. |
| Contact Resistance
(Including resistance of cable) |
≤ 0.2 Ω |
| Insulation Resistance | ≥ 500 MΩ |
| Dielectric Withstanding Voltage | ≥ 500 Vr.m.s. |
Dimension |

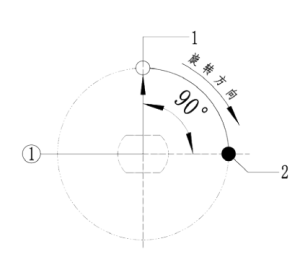

Circuit Diagram |
|
 |
Order Mark
| 1KX1-8 | Ⓙ |
| Part Number | Quality Grade |
Technical specification: RY3.603.003JT
