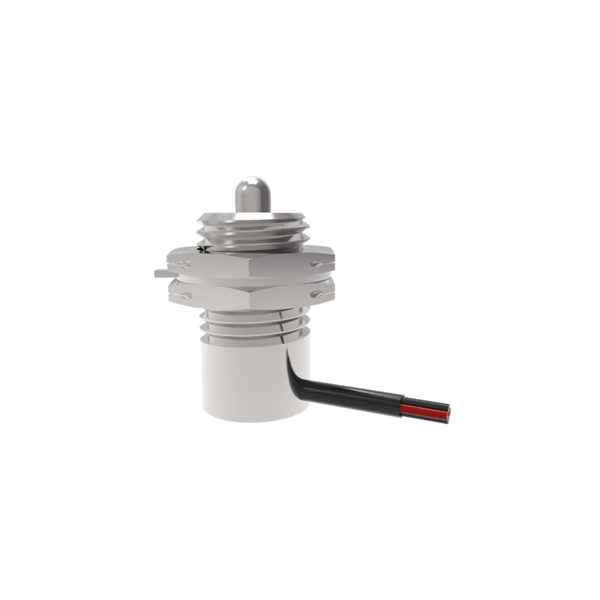

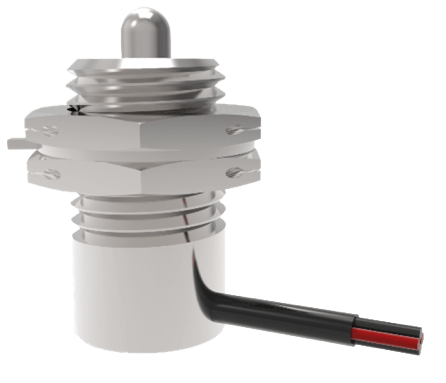

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-5°C ~ 70°C |
|
| Random Vibration |
15 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| 4 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
200 m/s2 |
| Acceleration |
100 m/s2 |
| Circuitry |
1 NO |
| Weight |
≤ 100 g |
| Connection Types |
AFR-250 wire |
| Pretravel |
1.3 mm ~ 2 mm |
| Total Travel |
5 mm ± 0.5 mm |
| Total Travel Force |
8 N ~ 25 N |
| Cable Length |
500 + 300 mm |
| Electrical life |
4000 cycles |
Electrical Ratings
| Contact Rating |
1 A, 27 Vd.c. |
| Contact Resistance
(Including resistance of cable) |
≤ 0.25 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 1KX1-9 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.155JT
