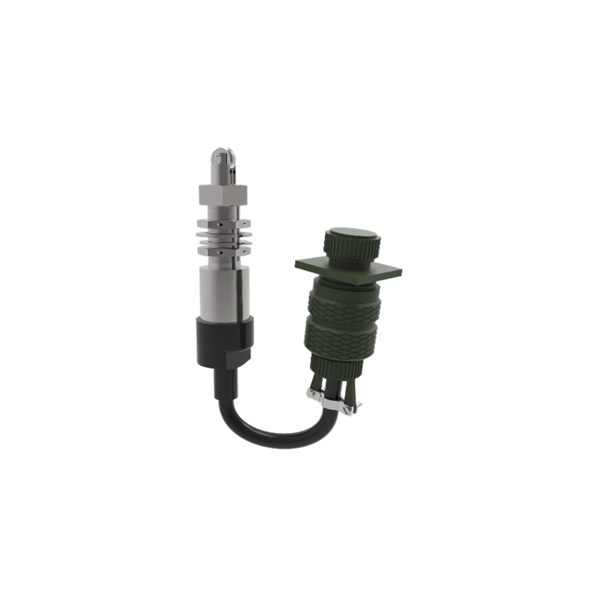

Specifications
| Characteristics | Parameter | ||||
| Quality Grade | Military Products (Ⓙ) | ||||
| Operating Temperature | -55°C ~ 70°C | ||||
| Relative Humidity | 30°C ~ 60°C, relative humidity ≥ 85% | ||||
| Functional Vibration | 15 Hz ~ 166 Hz | 166 Hz ~ 333 Hz | 333 Hz ~ 500 Hz | 500 Hz ~ 666 Hz | 666 Hz ~ 2000 Hz |
| 3 (m/s2)2/Hz | -6 dB/Oct | -6 dB/Oct | -6 dB/Oct | 0.1 (m/s2)2/Hz | |
| Durable Vibration | Consistent with functional vibration | ||||
| 1.6 times the functional vibration | |||||
| Shock | 200 m/s2 | ||||
| Acceleration | Performance: ± X 20 m/s2, ± Y 20 m/s2, ± Z 20 m/s2
Structure: ± X 30 m/s2, ± Y 30 m/s2, ± Z 30 m/s2 |
||||
| Circuitry | DPDT | ||||
| Weight | ≤ 450 g | ||||
| Connection Types | JY27467T11B35P plug
JY27656T11B35S receptacle |
||||
| Pretravel Force | 40 N ± 13.4 N | ||||
| Differential Travel Force | ≥ 22.25 N | ||||
| Pretravel | ≤ 1.27 mm | ||||
| Differential Travel | ≤ 0.76 mm | ||||
| Overtravel | ≥ 3.18 mm | ||||
| Cable Length | 600 mm ± 50 mm | ||||
| Life | 25000 cycles | ||||
Electrical Ratings
| Contact Rating | 1 A, 18 ~ 32 Vd.c |
| Contact Resistance
(Including resistance of cable) |
≤ 0.66 Ω |
| Insulation Resistance | ≥ 500 MΩ |
| Dielectric Withstanding Voltage | ≥ 500 Vr.m.s. |
Dimension |
Circuit Diagram |
 |
 |
Order Mark
| 2KL5-1 | Ⓙ |
| Part Number | Quality Grade |
Technical specification: RY3.604.150JT
