Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-65°C ~ 125°C |
| Relative Humidity |
(40 ± 2) °C, 90% ~ 95% |
| Low Pressure Test |
0.67 kPa ~ 0.27 kPa |
| Sinusoidal Vibration |
10 Hz ~ 50 Hz |
50 Hz ~ 2000 Hz |
| Single-Sided Amplitude 1.5 mm |
147 m/s2 |
| Random Vibration |
50 Hz ~ 150 Hz |
150 Hz ~ 800 Hz |
800 Hz ~ 2000 Hz |
| +3 dB/Oct |
20 (m/s2)2/Hz |
-12 dB/Oct |
| Shock |
490 m/s2 |
| Acceleration |
490 m/s2 |
| Circuitry |
1 NC |
| Weight |
≤ 150 g |
| Connection Types |
Y4-4TK plug |
| Pretravel |
1.8 mm ~ 2.2 mm |
| Total Travel |
5 mm ± 0.3 mm |
| Total Travel Force |
≤ 20 N |
| Life |
10000 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c., 1 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.5 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

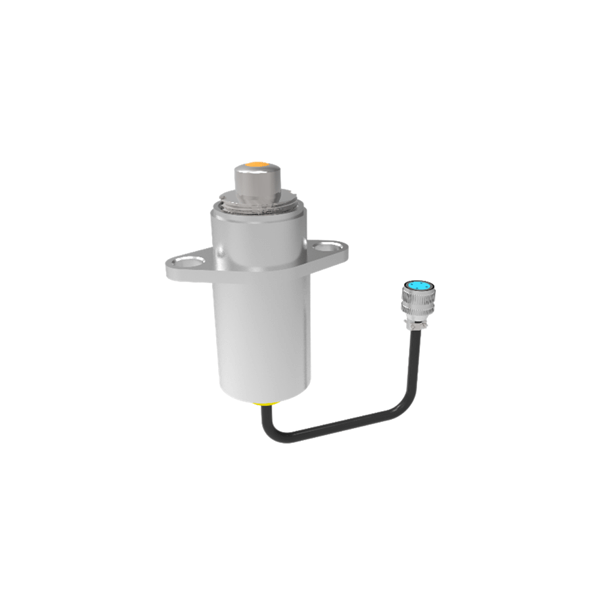

| 2KX-1B |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.050JT
