Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-65°C ~ 125°C |
| Relative Humidity |
90% ~ 100% |
| Low Pressure Test |
30.8 kPa ~ 0.559 kPa |
| Random Vibration |
20 Hz ~ 80 Hz |
80 Hz ~ 350 Hz |
350 Hz ~ 2000 Hz |
| +3 dB/Oct |
4 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
980 m/s2 |
| Acceleration |
490 m/s2 |
| Rain Test |
40 min |
| Circuitry |
1 NO |
| Weight |
≤ 100 g |
| Connection Types |
J599/24FB04SN receptacle |
| Pretravel |
1.5 mm ~ 2 mm |
| Total Travel |
5.5 mm ± 0.3 mm |
| Total Travel Force |
≤ 40 N |
| Life |
5000 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c., 1 A, resistive |
| Contact Resistance
(Including resistance of cable) |
≤ 0.75 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 1000 Vr.m.s |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

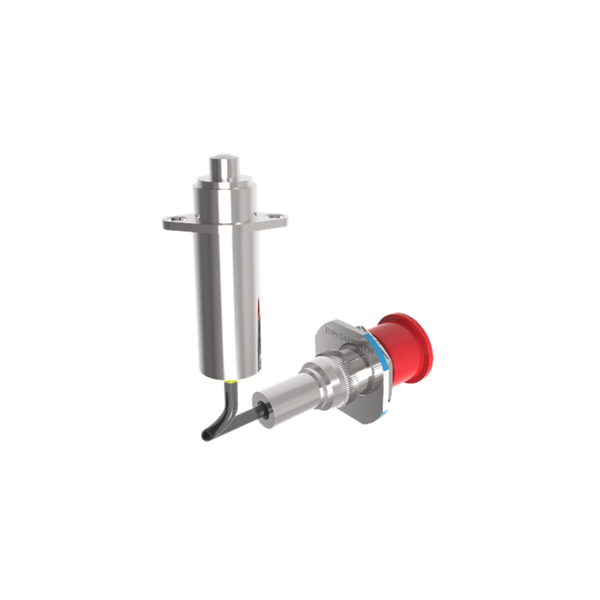

| 2KX-1C |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01181B-2016
