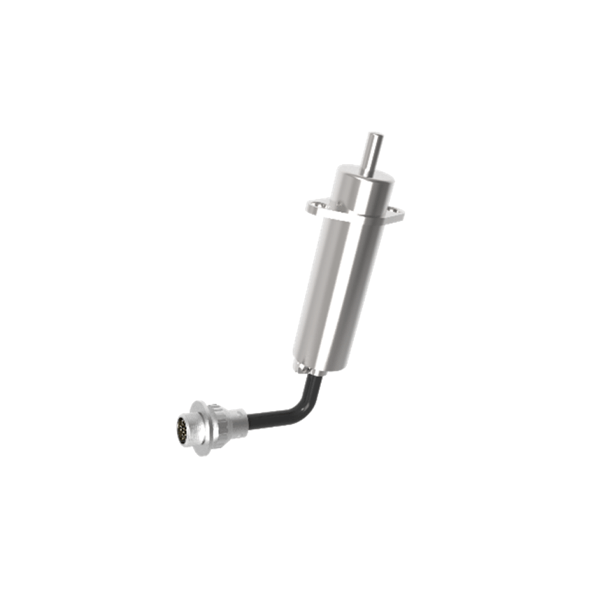

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Thermal Shock Test |
-55°C ~ 85°C, Insulate for 0.5 hour at extreme temperature, 3 cycles |
| Low Pressure Test |
0.27 kPa ~ 0.67 kPa |
| Sinusoidal Vibration |
10 Hz ~ 50 Hz |
50 Hz ~ 2000 Hz |
| Single-Sided Amplitude 1.5 mm |
98 m/s2 |
| Shock |
500 m/s2 |
| Acceleration |
500 m/s2 |
| Circuitry |
1 NC |
| Weight |
≤ 100 g |
| Connection Types |
Y4-4ZJLM receptacle |
| Pretravel |
4.8 mm ~ 6 mm |
| Total Travel |
10 mm ± 0.6 mm |
| Total Travel Force |
20 N ~ 50 N |
| Mechanical Life |
1000 cycles |
| Electrical Life |
5000 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c ± 3 Vd.c., 1 A, resistive |
| Contact Resistance
(Including resistance of cable) |
≤ 0.15 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX-1D |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01292-2013
