Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Relative Humidity |
(40 ± 2) °C, 90% ~ 95% |
| Low Pressure Test |
0.67 kPa ~ 0.27 kPa |
| Sinusoidal Vibration |
10 Hz ~ 70.7 Hz |
70.7 Hz ~ 2000 Hz |
| Single-Sided Amplitude 1.5 mm |
98 m/s2 |
| Random Vibration |
50 Hz ~ 100 Hz |
100 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +3 dB/Oct |
10 (m/s2)2/Hz |
-12 dB/Oct |
| Shock |
490 m/s2 |
| Acceleration |
490 m/s2 |
| Circuitry |
1 NO, 1 NC |
| Weight |
≤ 15 g |
| Connection Types |
Solder Strip |
| NC Off Travel |
1.8 mm ~ 2 mm |
| NO On Travel |
2.4 mm ~ 3 mm |
| Total Travel |
5 mm ± 0.3 mm |
| Total Travel Force |
≤ 20 N |
| Life |
5000 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c., 1 A, resistive |
| Contact Resistance |
≤ 0.05 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 1000 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

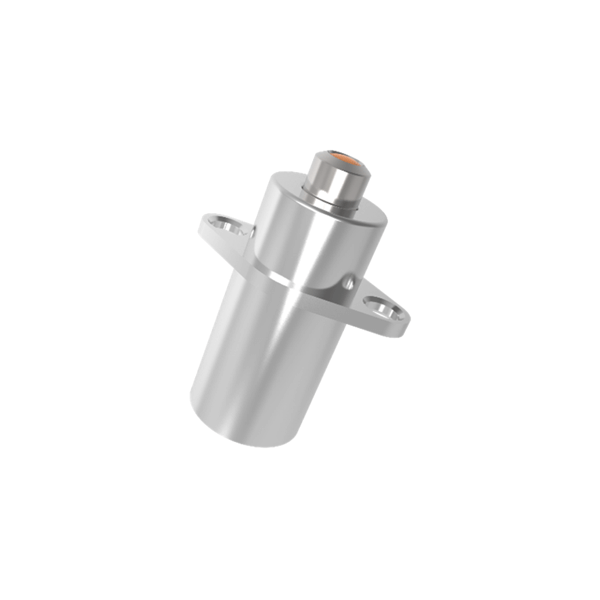

| 2KX-1L |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.167JT
