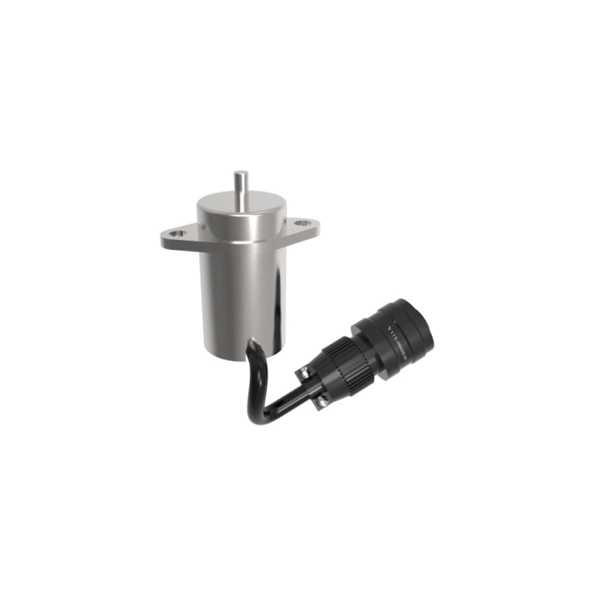

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Relative Humidity |
(40 ± 2) °C, 95% |
| Low Pressure Test |
0.67 kPa ~ 0.13 kPa |
| Sinusoidal Vibration |
10 Hz ~ 2000 Hz |
| 147 m/s2 |
| Random Vibration |
10 Hz ~ 100 Hz |
100 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +3 dB/Oct |
20 (m/s2)/Hz |
-3 dB/Oct |
| Shock |
1000 m/s2 |
| Acceleration |
1000 m/s2 |
| Circuitry |
2 NC |
| Weight |
≤ 160 g |
| Connection Types |
Y11X-0804TJ2 plug |
| Pretravel |
3 mm ± 0.4 mm |
| Total Travel |
8 mm ± 0.5 mm |
| Total Travel Force |
≤ 60 N |
| Cable Length |
780 mm |
| Life |
2500 cycles |
Electrical Ratings
| Contact Rating |
50 Vd.c., 5 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.15 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX-2A |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY20032-2003
