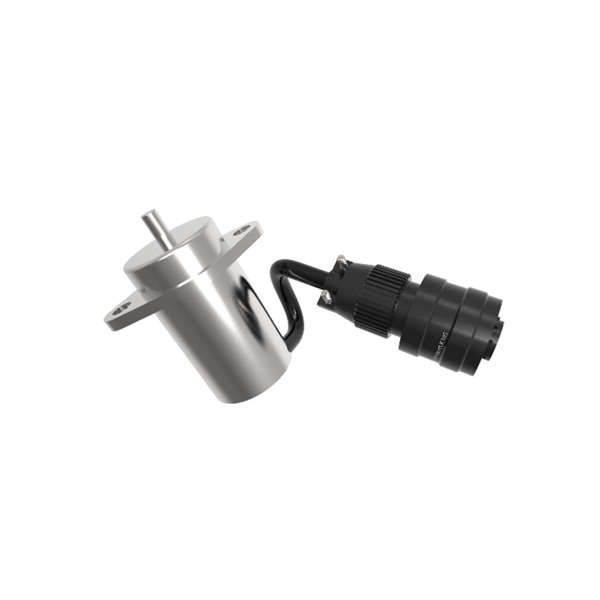

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Relative Humidity |
30°C ~ 60°C, 95% |
| Low Pressure Test |
0.67 kPa ~ 0.13 kPa |
| Sinusoidal Vibration |
10 Hz ~ 2000 Hz |
| 147 m/s2 |
| Random Vibration |
20 Hz ~ 180 Hz |
180 Hz ~ 211 Hz |
211 Hz ~ 1211 Hz |
1211 Hz ~ 2000 Hz |
| 1 (m/s2)2/Hz |
+3 dB/Oct |
6 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
1000 m/s2 |
| Acceleration |
1000 m/s2 |
| Circuitry |
2 NC |
| Weight |
≤ 170 g |
| Connection Types |
Y11X-0804TJ2 plug |
| Pretravel |
2 mm ± 0.4 mm |
| Total Travel |
11 mm ± 0.3 mm |
| Total Travel Force |
≤ 75 N |
| Cable Length |
780 mm ± 20 mm |
| Life |
2500 cycles |
Electrical Ratings
| Contact Rating |
50 Vd.c., 5 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.15 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX-2B |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.039JT
