Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 70°C |
| Relative Humidity |
30°C ~ 60°C, relative humidity ≥ 85% |
| Low Pressure Test |
22.6 kPa |
| Random Vibration |
20 Hz ~ 80 Hz |
80 Hz ~ 350 Hz |
350 Hz ~ 2000 Hz |
| +3 dB/Oct |
4 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
500 m/s2 |
| Acceleration |
161.7 m/s2 |
| Circuitry |
2 NO |
| Weight |
≤ 200 g |
| Connection Types |
J30JZ/XN9TJCAL01 plug |
| Differential Travel |
11 mm ± 0.5 mm |
| Total Travel |
21 mm ± 0.5 mm |
| Total Travel Force |
≤ 80 N |
| Cable Length |
650 mm ± 10 mm |
| Life |
2000 cycles |
Electrical Ratings
| Contact Rating |
28.5 Vd.c., 3 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.2 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

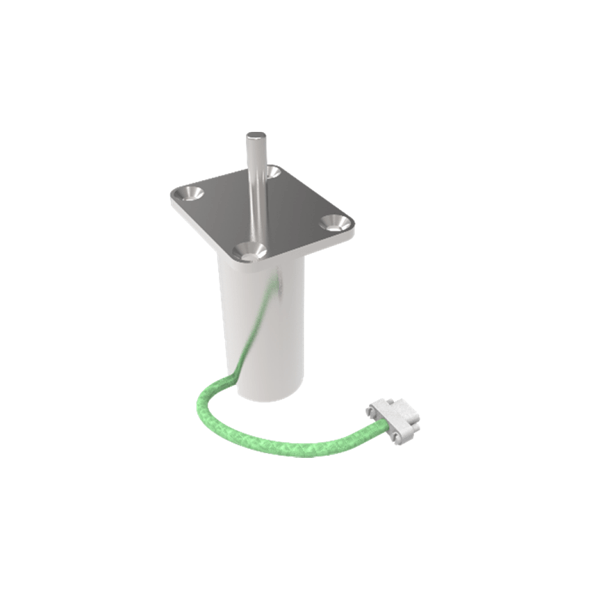

| 2KX-2DC |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.131JT
