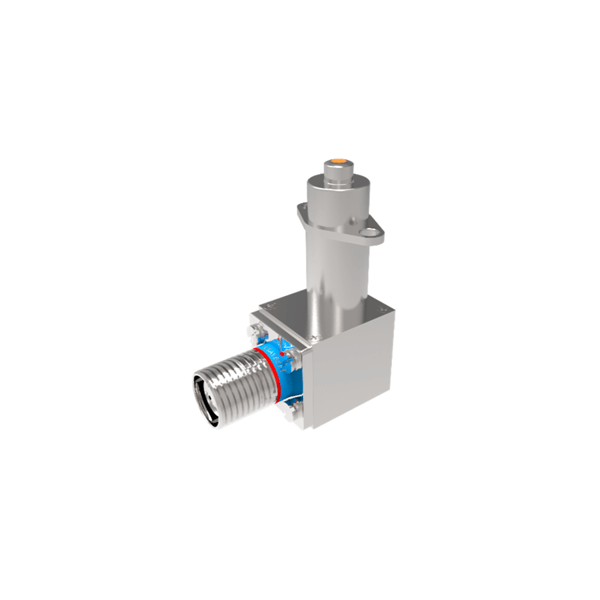

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 60 °C (400°C, 10 min) |
| Relative Humidity |
30°C ~ 60°C, 95% |
| Low Pressure Test |
10.29 kPa |
| Random Vibration |
20 Hz ~ 355 Hz |
355 Hz ~ 710 Hz |
710 Hz ~ 1400 Hz |
1400 Hz ~ 2000 Hz |
| 10.58 (m/s2)2/Hz |
26.82 (m/s2)2/Hz |
37.03 (m/s2)2/Hz |
23.81 (m/s2)2/Hz |
| Functional Vibration |
5 Hz ~ 10.8 Hz |
10.8 Hz ~ 100 Hz |
100 Hz ~ 1100 Hz |
1100 Hz ~ 2000 Hz |
| 0.5 (m/s2)2/Hz |
+3 dB/Oct |
4.6 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
1500 m/s2 |
| Acceleration |
300 m/s2 |
| Circuitry |
2 NO |
| Weight |
≤ 150 g |
| Connection Types |
J599/20SA98SN receptacle |
| Pretravel |
2.4 mm ~ 3.0 mm |
| Total Travel |
5 mm ± 0.3 mm |
| Total Travel Force |
≤ 20 N |
| Life |
5000 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c. |
|
Contact Resistance
|
2000 Ω ± 100 Ω (between A and B) |
| 3000 Ω ± 150 Ω (between A and B) |
| 1000 Ω ± 50 Ω (between A and B) |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX-9 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01113-2006
