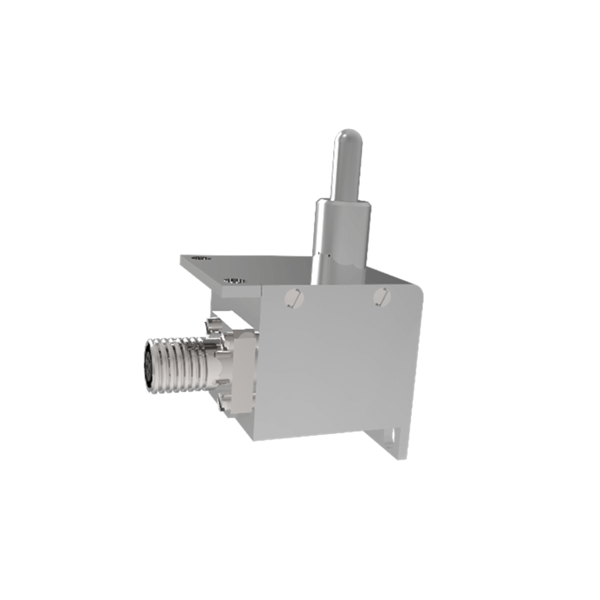

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-65°C ~ 125°C |
| Relative Humidity |
(30 ~ 35) °C, 93% |
| Low Pressure Test |
1×10-5 kPa |
| Sinusoidal Vibration |
5 Hz ~ 10 Hz |
10 Hz ~ 30 Hz |
30 Hz ~ 50 Hz |
50 Hz ~ 100 Hz |
5 Hz ~ 10 Hz |
10 Hz ~ 100 Hz |
| Single-Sided Amplitude 3 mm |
12 m/s2 |
21 m/s2 |
12 m/s2 |
Single-Sided Amplitude 2.25 mm |
9 m/s2 |
| Random Vibration |
10 Hz ~ 50 Hz |
50 Hz ~ 400 Hz |
400 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +3 dB/Oct |
9 (m/s2)2/Hz |
16 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
60000 m/s2 |
| Acceleration |
490 m/s2 |
| Circuitry |
2 NC |
| Weight |
≤ 400 g |
| Connection Types |
J599/20FA35SN receptacle |
| Pretravel |
4.5 mm ± 0.5 mm |
| Total Travel |
10.6 mm ± 0.5 mm |
| Total Travel Force |
≤ 100 N |
| Life |
1500 cycles |
Electrical Ratings
| Contact Rating |
27 Vd.c., 2 A |
| Contact Resistance |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX2-1 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01225A -2013
