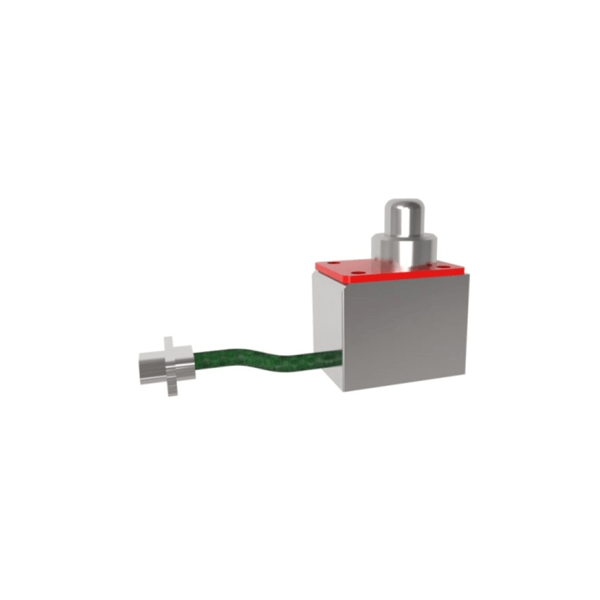

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-70°C ~ 70°C |
| Relative Humidity |
30°C ~ 60°C, relative humidity ≥ 85% |
| Free Flight Vibration |
10 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| 4 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
200 m/s2 |
| Acceleration |
234 m/s2 |
| Circuitry |
DPDT |
| Weight |
≤ 400 g |
| Connection Types |
J29A-9ZXP1 receptacle |
| Differential Travel |
≥ 6.3 mm |
| Pretravel |
≤ 9.4 mm |
| Total Travel |
11 mm ± 0.2 mm |
| Pretravel Force |
≥ 8 N |
| Total Travel Force |
≤ 80 N |
| Cable Length |
150 mm |
| Life |
3000 cycles |
Electrical Ratings
| Contact Rating |
28.5 Vd.c., 5 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX5-3Z |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.119JT
