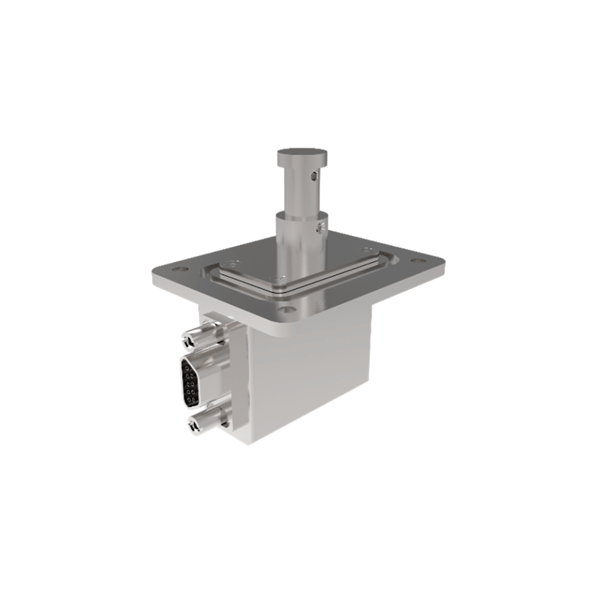

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 70°C |
| Relative Humidity |
(30 ~ 60) °C, 95% |
| Low Pressure Test |
≤ 1 Pa |
| Autonomous Flight Vibration |
20 Hz ~ (111) Hz |
(111) Hz ~ 500 Hz |
500 Hz ~ 1500 Hz |
1500 Hz ~ 2000 Hz |
| 1.6 (m/s2)2/Hz |
+3 dB/Oct |
7.2 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
100 Hz |
1000 Hz ~ 5000 Hz |
| 1350 m/s2 |
35000 m/s2 |
| Acceleration |
385 m/s2 |
| Rain Test |
30 min |
| Circuitry |
2 NC |
| Weight |
≤ 200 g |
| Connection Types |
J29A-9ZK receptacle |
| Total Travel |
9 mm ± 0.5 mm |
| Pretravel |
1.8 mm ~ 2.5 mm |
| Total Travel Force |
50 N ~ 80 N |
| Electrical Life |
1000 cycles |
Electrical Ratings
| Contact Rating |
28 Vd.c., 5 A |
| Contact Resistance |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 2KX5-8 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.132JT
