Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 70°C |
| Relative Humidity |
30°C ~ 60°C, 85% ~ 95% |
| Sinusoidal Vibration |
20 Hz ~ 2000 Hz |
| 6.24 m/s2 |
| Random Vibration |
20 Hz ~ 80 Hz |
80 Hz ~ 350 Hz |
350 Hz ~ 2000 Hz |
| +3 dB/Oct |
40 (m/s2)2/Hz |
-3 dB/Oct |
| Shock |
200 m/s2 |
| Acceleration |
180 m/s2 |
| Circuitry |
1 NO, 1 NC |
| Weight |
≤ 200 g |
| Connection Types |
J30J-9TJP plug |
| NC Off Travel |
3.8 mm ± 0.5 mm |
| NO On Travel |
6.4 mm ± 0.5 mm |
| Total Travel |
10 mm ± 0.5 mm |
| Total Travel Force |
≥ 27 N |
| Cable Length |
360+10 0 mm |
| Life |
1000 cycles |
Electrical Ratings
| Contact Rating |
5 A, 28 Vd.c. |
| Contact Resistance
(Including resistance of cable) |
≤ 0.2 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

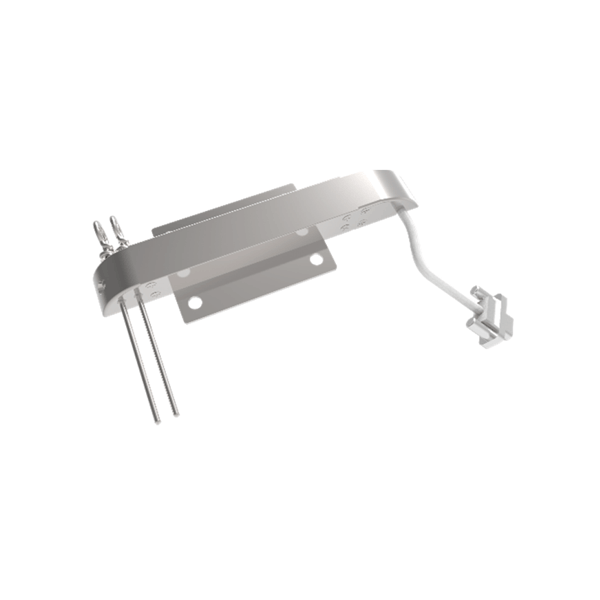

| 2KX5-9 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.142JT
