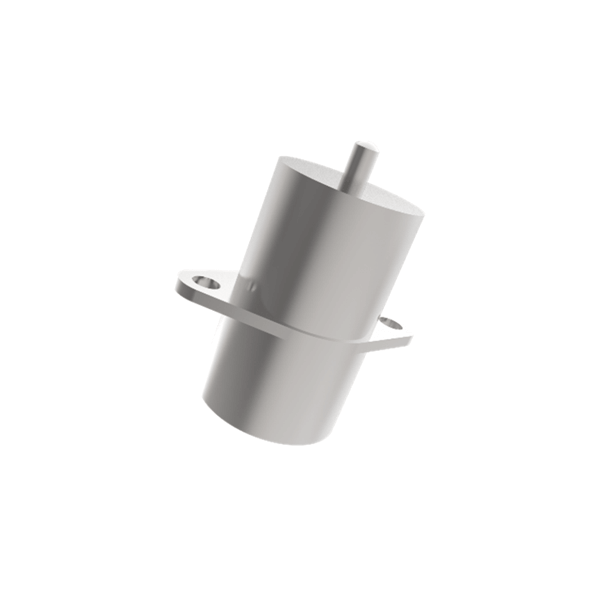

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 125°C |
| Relative Humidity |
(40 ± 3) °C, 92% ~ 98% |
| Low Pressure Test |
5.33 Pa ± 1.33 Pa |
| Random Vibration |
20 Hz ~ 50 Hz |
50 Hz ~ 400 Hz |
400 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +6 dB/Oct |
12 (m/s2)2/Hz |
25 (m/s2)2/Hz |
-10 dB/Oct |
| Shock |
980 m/s2 |
| Acceleration |
490 m/s2 |
| Circuitry |
2 NC, 1 NO |
| Weight |
≤ 85 g |
| Connection Types |
Solder Strip |
| NC Off Travel |
1.6 mm ~ 2.5 mm |
| NO On Travel |
2.1 mm ~ 3 mm |
| Total Travel |
6.5 mm ~ 7.3 mm |
| Total Travel Force |
< 80 N |
| Life |
500 cycles |
Electrical Ratings
| Contact Rating |
NC group 1, 4: 27 ± 3 Vd.c., 20 A
NC group 2, 5: 27 ± 3 Vd.c., 3 A
NC group 3, 6: 27 ± 3 Vd.c., 3 A |
| Contact Resistance |
≤ 0.05 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 3KX-1 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J0175-2002
