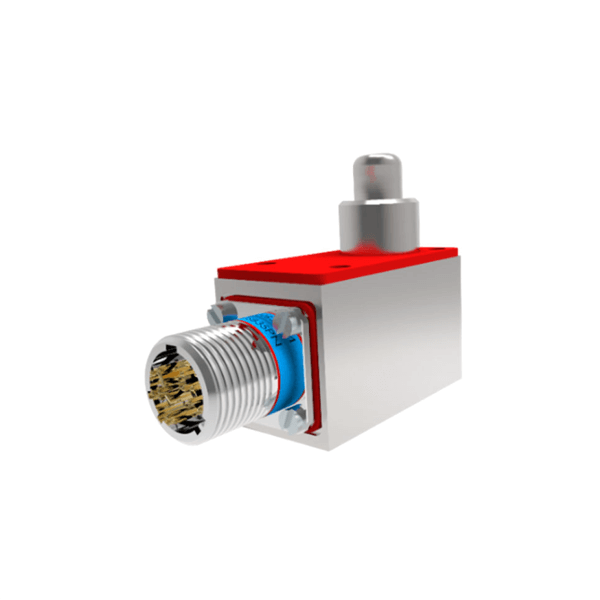

3KX5-1 Travel Switch

Output to socket.
The nut has built-in wirelock holes and lock washer.
Excellent rain-proof performance, the switch is mold-resistant and salt-spray resistant.
The switch has multiple sets of contacts and an internal anti rotation mechanism.
Applied to aerospace, aviation, weapons, and other military electronic devices.

Characteristics	Parameter
Quality Grade	Military Products (Ⓙ)
Operating Temperature	-45°C ~ 65°C
Constant Damp Heat Test	40°C (95%, 96 h)
Low Pressure Test	1.086 kPa ~ 101 kPa
Random Vibration	20 Hz ~ 355 Hz	355 Hz ~ 710 Hz	710 Hz ~ 1400 Hz	1400 Hz ~ 2000 Hz
	10.58 (m/s²)²/Hz	26.82 (m/s²)²/Hz	37.03 (m/s²)²/Hz	23.81 (m/s²)²/Hz
Shock	1000 m/s²
Acceleration	135 m/s²
Salt Spray Test	48 h
Mold Test	28 d
Circuitry	1 NC, 1 NO and SPDT
Weight	≤ 500 g
Connection Types	J599/20SB35PN receptacle
From Total Travel Position to NO Off Position	≥ 6.3 mm
From Total Travel Position to NC On Position	≤ 9.4 mm
Total Travel	11 mm ± 0.2 mm
Pretravel Force	≥ 8 N
Total Travel Force	≤ 80 N
Mechanical Life	2000 cycles
