Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 60°C (360°C, 10 min) |
| Alternating Damp Heat Test |
30°C ~ 60°C, 95% |
| Low Pressure Test |
10.290 kPa |
| Random Vibration |
10 Hz ~ 280 Hz |
280 Hz ~ 355 Hz |
355 Hz ~ 560 Hz |
560 Hz ~ 710 Hz |
710 Hz ~ 840 Hz |
840 Hz ~ 1050 Hz |
1050 Hz ~ 1400 Hz |
1400 Hz ~ 2000 Hz |
| 7 (m/s2)2/Hz |
30 (m/s2)2/Hz |
15 (m/s2)2/Hz |
77 (m/s2)2/Hz |
15 (m/s2)2/Hz |
100 (m/s2)2/Hz |
56 (m/s2)2/Hz |
28 (m/s2)2/Hz |
| Shock |
1500 m/s2 |
| Acceleration |
300 m/s2 |
| Circuitry |
1 NO, 1 NC and SPDT |
| Weight |
≤ 600 g |
| Connection Types |
J599/20SB35PN receptacle |
| Axial Fastening Strength |
300 N ± 100 N |
| Axial Separation Force |
270 N ± 50 N |
| 45° Separation Force |
220 N ~ 500 N |
| Electrical Life |
1000 cycles |
Electrical Ratings
| Contact Rating |
28.5 Vd.c., 5 A |
| Contact Resistance |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

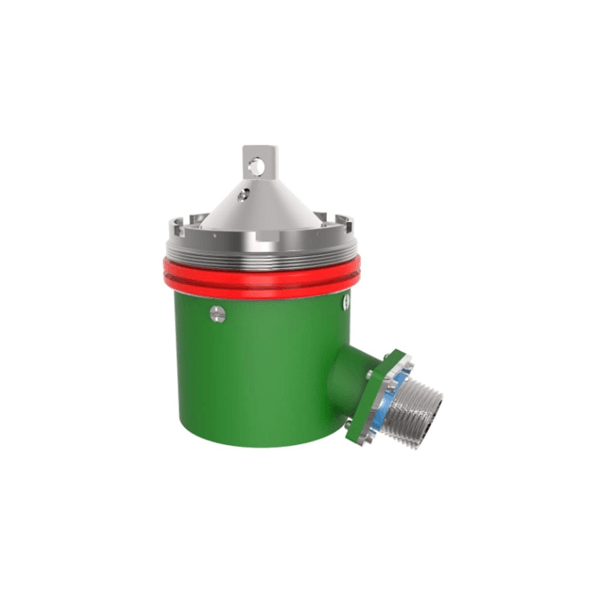

| 3KY-2 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.024JT
