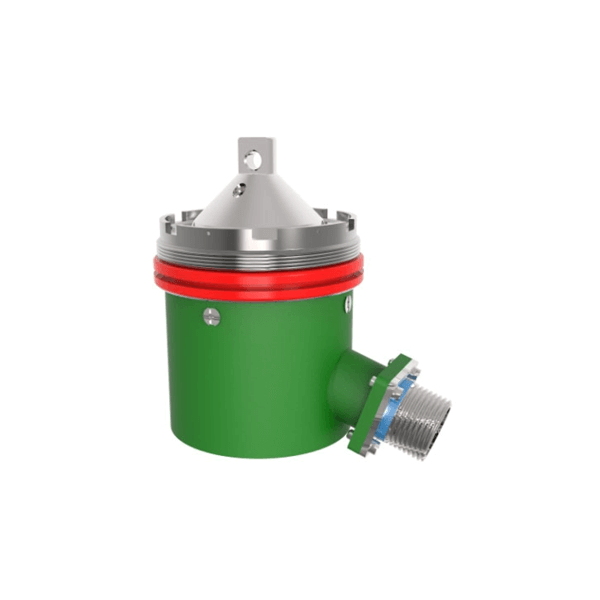

3KY-2C Fuse Switch

The switch is suitable for systems that use mechanical pull-off force as the separation command.
Output to connector through wire.
The switch is mounted with M56 × 1 threaded.
Excellent rain-proof performance.

Category: Travel Switch

Characteristics	Parameter
Quality Grade	Military Products (Ⓙ)
Operating Temperature	-40°C ~ 80°C
Thermal Shock	-30°C ~ 50°C, maintain at extreme temperature for 1 hour, 3 cycles
Low Pressure Test	1.3 kPa
Random Vibration	20 Hz ~ 29.3 Hz	29.3 Hz ~ 100 Hz	100 Hz ~ 1100 Hz	1100 Hz ~ 2000 Hz
	0.5 (m/s²)²/Hz	+3 dB/Oct	1.7 (m/s²)²/Hz	-3 dB/Oct
Shock	1000 m/s²
Acceleration	180 m/s²
Circuitry	1 NO, 1 NC and SPDT
Weight	≤ 600 g
Connection Types	J599/20SB35PN receptacle
Axial Fastening Strength	300 N ± 100 N
Axial Separation Force	270 N ± 50 N
45° Separation Force	220 N ~ 500 N
Electrical Life	1000 cycles
