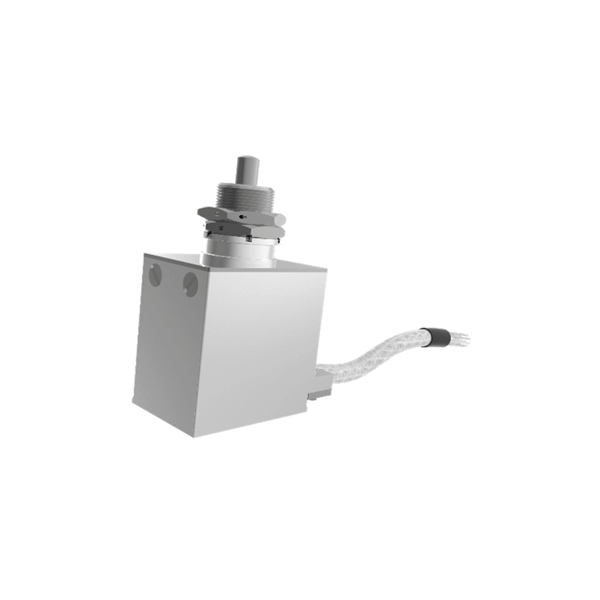

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 80°C |
| Relative Humidity |
0°C ~ 35°C, 30% ~ 60% |
| Sinusoidal Vibration |
5 Hz ~ 20 Hz |
20 Hz ~ 30 Hz |
30 Hz ~ 50 Hz |
50 Hz ~ 80 Hz |
80 Hz ~ 100 Hz |
| 12 m/s2 ~ 60 m/s2 |
60 m/s2 ~ 210 m/s2 |
210 m/s2 |
300 m/s2 |
180 m/s2 |
| Random Vibration |
20 Hz ~ 800 Hz |
800 Hz ~ 2000 Hz |
| 35 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
72000 m/s2 |
| Acceleration |
120 m/s2 |
| Circuitry |
4 From c |
| Weight |
≤ 180 g |
| Connection Types |
High Performance Transmission Cable |
| NC Off Travel |
1.6 mm ~ 2.4 mm |
| NO On Travel |
2.1 mm ~ 3.9 mm |
| Total Travel |
7.5 mm ~ 7.8 mm |
| Total Travel Force |
≤ 88 N |
| Life |
1000 cycles |
Electrical Ratings
| Contact Rating |
28 Vd.c., 5 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 4KX5-1 |
Ⓙ |
| Part Number |
Quality Grade |
Technical Specification: Q/RY.J01390-2018
