Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-40°C ~ 50°C |
| Relative Humidity |
40°C at 95% |
| Low Pressure Test |
4.39 kPa |
| Random Vibration |
8 Hz ~100 Hz |
100 Hz ~ 1500 Hz |
1500 Hz ~ 2000 Hz |
| + 6dB/Oct |
8 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
750 m/s2 |
| Acceleration |
500 m/s2 |
| Circuitry |
6 From c |
| Weight |
≤ 100 g |
| Connection Types |
Binding Post |
| Pretravel |
2 mm ~ 3.5 mm |
| Total Travel |
≥ 6.5 mm |
| Pretravel Force |
≤ 37 N |
| Total Travel Force |
≤ 88 N |
| Life |
500 cycles |
Electrical Ratings
| Contact Rating |
27 ± 3 Vd.c., 5 A |
| Contact Resistance |
≤ 0.1 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark

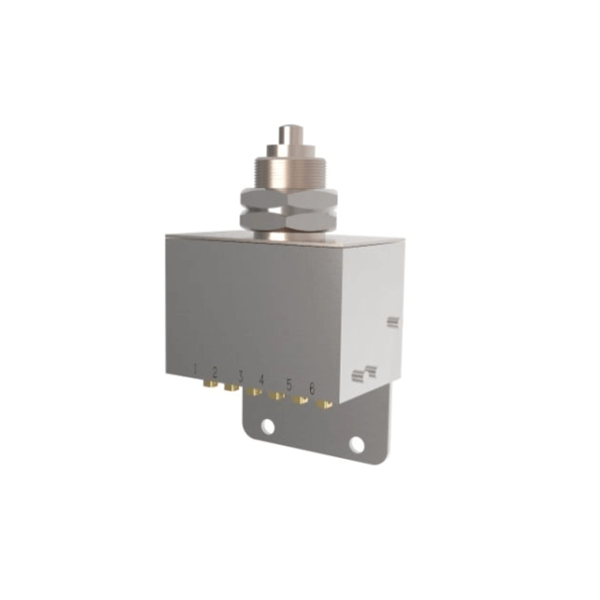

| 6KX-1 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.043JT
