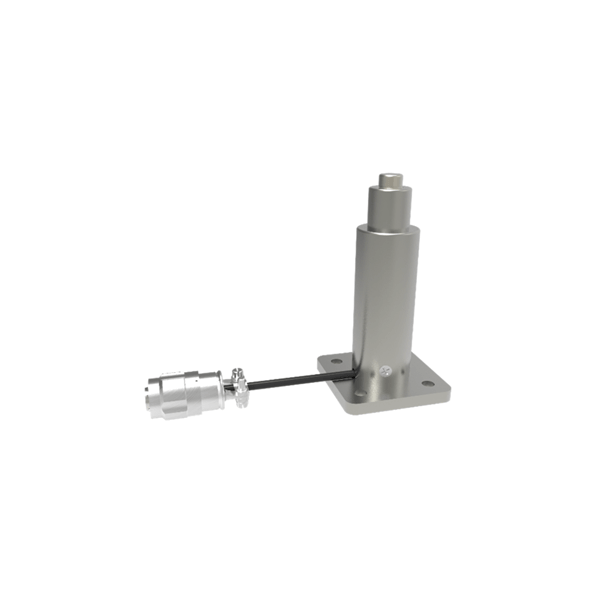

8K64-3 (Straight) Landing Travel Switch

The switch features high-temperature resistant and withstands 800°C high temperature in short time.
Redundant internal circuit design: every 3 of the 6 contacts of switch are shorted.
The switch withstands 8000g high-intensity vibration impact.
Output to plug.
Applied to aerospace, aviation, weapons, and other military electronic devices.

Characteristics	Parameter
Quality Grade	Military Products (Ⓙ)
Operating Temperature	-40°C ~ 60°C, the button 800°C, 210 s
High Temperature Work	60°C, 2 h
Low Temperature Work	-40°C, 2 h
Damp Heat Test	30°C → 60°C → 30°C, relative humidity 90% ~ 100%, 240 h
Flight Vibration	20 Hz ~ 80 Hz	80 Hz ~ 300 Hz	300 Hz ~ 2000 Hz	Root Mean Square Acceleration
	+3 dB/Oct	160 (m/s²)²/Hz	+3 dB/Oct	364.2 m/s²
Sinusoidal Sweep	2 Hz ~ 10 Hz		10 Hz ~ 20 Hz	20 Hz ~ 100Hz
	7.5 mm		30 m/s²	80 m/s²
Overload	80 m/s²
Shock	80000 m/s²
Circuitry	1 NC
Weight	≤ 260 g
Connection Types	Plug J599/26KA98PNGW
Pretravel	2.5 mm ± 0.5 mm
Total Travel	6 mm ± 0.5 mm
Pretravel Force	≥ 110 N
Total Travel Force	200 N ± 15 N
Electrical Life	2000 cycles

Contact Rating	1 A, 2 ~ 36 Vd.c.
Contact Resistance (Including resistance of cable)	≤ 0.3 Ω
Insulation Resistance	≥ 500 MΩ
Dielectric Withstanding Voltage	500 Vr.m.s.
