AK-33

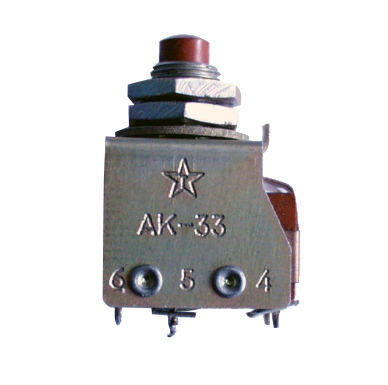

AK-33 Aviation & Military Push Button Switch

1. Large load capacity;
2. With instantaneous action function, the action is sensitive, and the parameter accuracy is high;
3. The electrical life reaches 25,000 times.

Standard: Meet GJB150-1986 military equipment environmental test method (part), GJB360A-1996 electronic and electrical component test method (part), GJB1512-1992 button switch general specification (part), AK-33 button switch technical specification

Category:

AK-33 Specifications

Electrical load a)  Rated voltage: 30×(1±10%)VDC; Current: 2A(Inductive, τ≤0.015s);

b)  Rated voltage: 30×(1±10%)VDC; Current: 4A (Resistive);

c)  Rated voltage: 115×(1±10%)VAC; Current: 0.5A(Inductive, cosφ≥0.5);

d)  Rated voltage: 115×(1±10%)VAC; Current: 2A (Resistive);

Operating Force OF(N) 5.88~12.7
Weight (g) ≤20
Mechanical Life (cycles) 25000
Insulation Resistance (normal) MΩ ≥1000
Insulation Resistance (damp heat) MΩ ≥3
Dielectric Withstand Voltage (normal) V ac 1100
Salt fog (h) 48
