AN-14 Series Specifications |
||
| Electrical Rating Resistive | a)12VDC、0.5mA
b)28.5VDC、1A |
|
| Total Travel OT (mm) | ≤ 2 | |
| Operating Force OF (N) | 5.34～9.77 | |
| Mechanical Life (cycles) | 50 000 | |
| Mechanical life (times) | 100 000 | |
| Insulation resistance (MΩ) | Normal | ≥1000 |
| Damp heat | ≥10 | |
| Contact resistance (mΩ) | initial | ≤50 |
| After mechanical life | ≤80 | |
| After life | ≤2% of rated electrical load resistance | |
| Dielectric withstand voltage (VAC) | Normal | 850 |
| Overload cycle | Current (A) | 1.5 |
| Cycles | 50 | |
| Operating Temp (℃) | -55～85 | |
| Weight (g) | ≤ 8 | |
| Salt fog (h) | 48 | |
AN-14

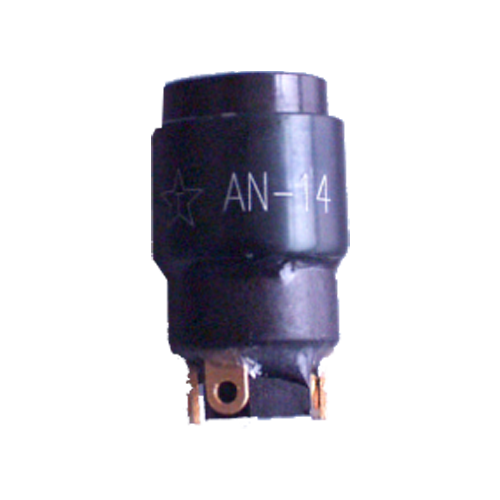

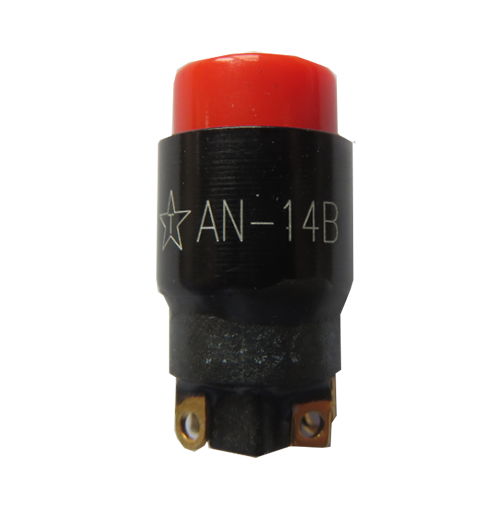

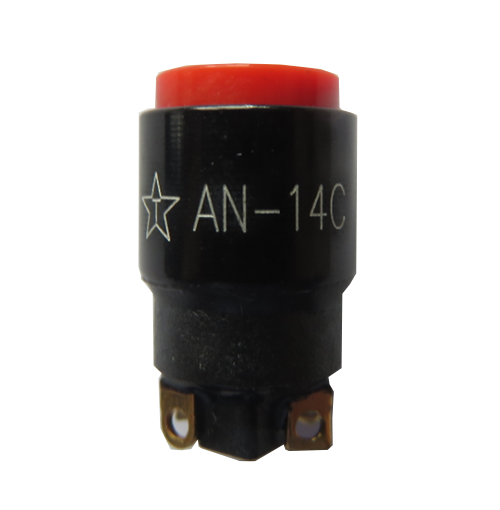

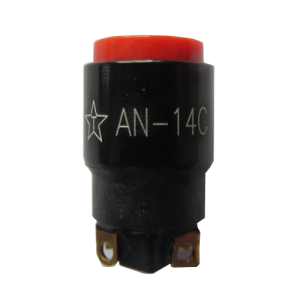

AN-14 Aviation & Military Push Button Switch
1. Small size and light weight;
2. With instantaneous action function, the action is sensitive and the parameter accuracy is high;
3. Wide range of operating environment temperature: (-55～85)℃;
4. The product adopts gold-plated contacts, which can meet the requirements of logic level load and large load;
5. Electric life reaches 50,000 times;
6. The specific characteristics and indicators of the product are based on the product-specific technical conditions.
Standard: Meet GJB150-1986 military equipment environmental test method (part), GJB360A-1996 electronic and electrical component test method (part), GJB809A-1997 micro switch general technical specification (part), AN-14 special technical specification (internal)
