BK-3 Series Specifications |
|
| Load Resistive | Voltage: 30VDC, Current: 2A；
Voltage: 115VAC (400Hz), Current: 2A。 |
| Load Inductive | Voltage: 30VDC, Current: 1A (L/R=5ms)；
Voltage: 115VAC (400Hz), Current: 1A (L/R=5ms)。 |
| Operating Force OF(N) | 3.5±1.2 |
| Releasing Force RF (N) | 0.6min |
| Pre-travel PT | 9°30′max |
| Over-travel OT | 1°30′min |
| Release Travel RT | 4°min |
| Operating Temp Range(℃) | -55～85 |
| Weight (g) | ≤15 |
| Electric Life (cycles) | 100000 |
| Insulation Resistance (normal)MΩ | ≥1000 |
| Insulation Resistance (damp heat) MΩ | ≥10 |
| Dielectric Withstand Voltage (normal) VAC | 1000 |
| Salt Spray (h) | According to the #101 requirements of GJB360A. |
BK-3

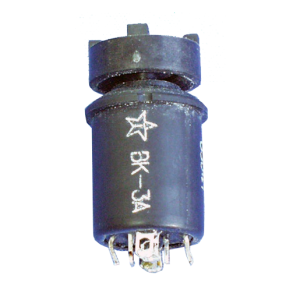

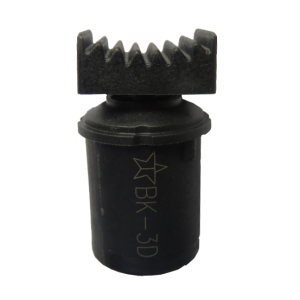

BK-3 Aviation & Military Multi-Directional Switch
1. Small size, light weight, large load capacity;
2. With instantaneous action and automatic reset function, the action is sensitive and the parameter accuracy is high;
3. Electric life reaches 100,000 times.
Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809A-97 micro switch general technical specification (part), BK-3 Series toggle switch special technology Specification (internal).
