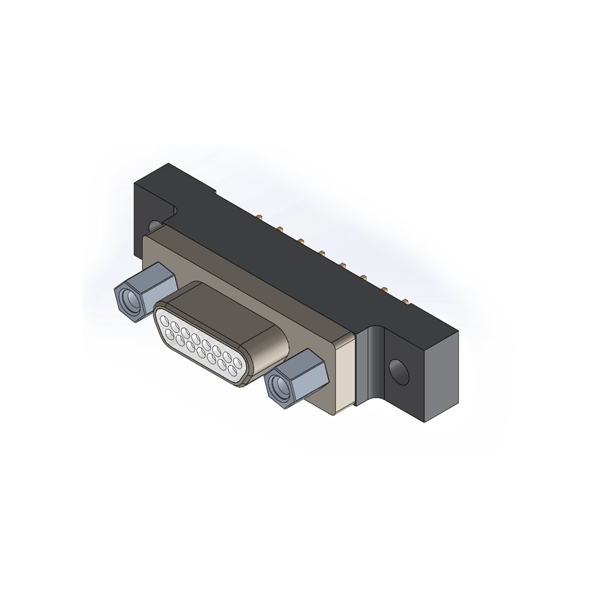

HMD PCB Connector BS Termination

HMD PCB Connector BS Termination

  • Specification: GJB2446A.
  • The connector features gold plated TwistPin contacts and nickel plated or gold plated shells.
  • A more economical replacement for MIL-STD-83513 Micro-D connectors.
  • With the same PCB layout as M83513 BS series.
  • 9, 15, 21, 25, 31, 37, 51 positions are available for both plug and socket.
Category:

Performance Specifications

Operating Temperature -55 ℃ to +125 ℃
Vibration Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock 735 m/s²
Rated Current 3 A
Contact Resistance ≤ 10 mΩ
Insulated Resistance ≥ 5000 MΩ
Dielectric Withstand Voltage 800 VAC
Mechanical Life ≥ 500 cycles

Materials and Finishes

Connector Shell Aluminum Alloy or Stainless Steel, 300 Series
Insulator Liquid Crystal Polymer (LCP)/Polyphenyl Sulfide(PPS)
Interfacial Seal Fluorosilicone Rubber
Pin Contact Beryllium Copper, Gold over Nickel Plating
Socket Contact Copper Alloy, Gold Over Nickel Plating
Hardware 300 Series SUS
Encapsulant Epoxy

How to Order

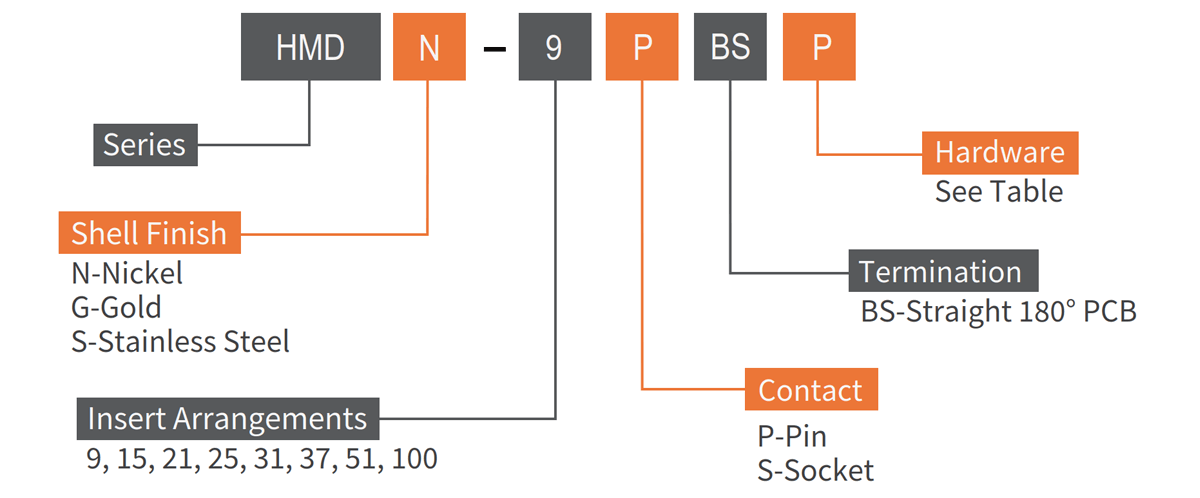

HMD PCB Connector BS Termination how to order

Mounting Hardware
None P

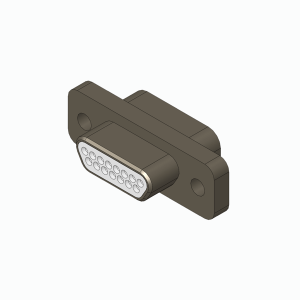

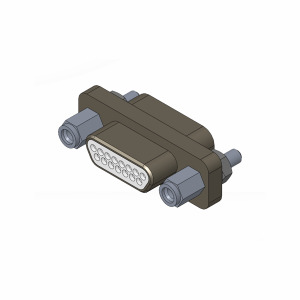

HMD Series tru hole HMD Series P mounting hardware
Tru-hole Jackpost

Dimensions

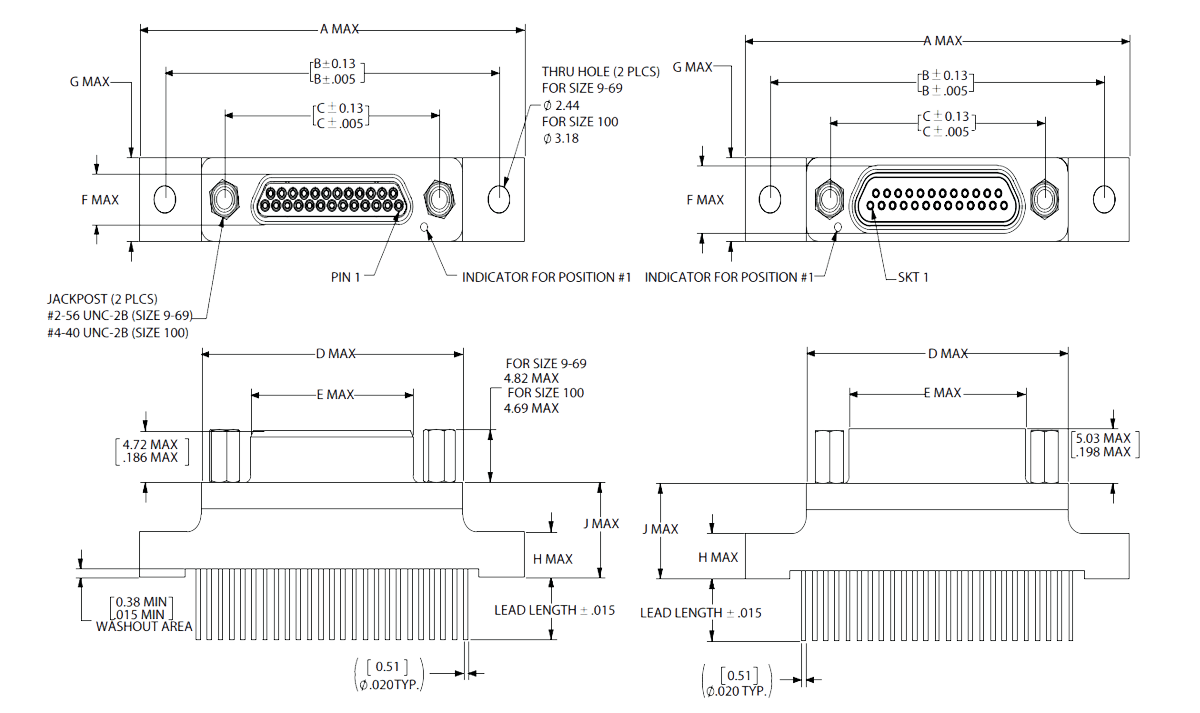

HMD PCB Connector BS Termination dimensions



SIZE A B C D E F G H J
MAX ±0.13 ±0.13 MAX PLUG RCPT PLUG RCPT MAX MAX MAX
9 35.31 29.21 14.3 19.6 8.3 9.8 4.7 6.1 7.6 4.2 9.02
15 35.31 29.21 18.2 23.5 12.3 13.7
21 42.93 36.83 22 27.4 16 17.4
25 44.2 39.37 24.5 29.8 18.6 20
31 51.82 45.72 28.3 33.6 22.4 23.8
37 59.44 53.34 32.2 37.4 26.3 27.7
51 57.66 50.8 30.86 36.4 25 26.5 5.8 7.2 8.7
100 82.55 71.12 45.7 54.7 35 36.6 6.8 8.2 11.7 7.7 13.97

BS Termination

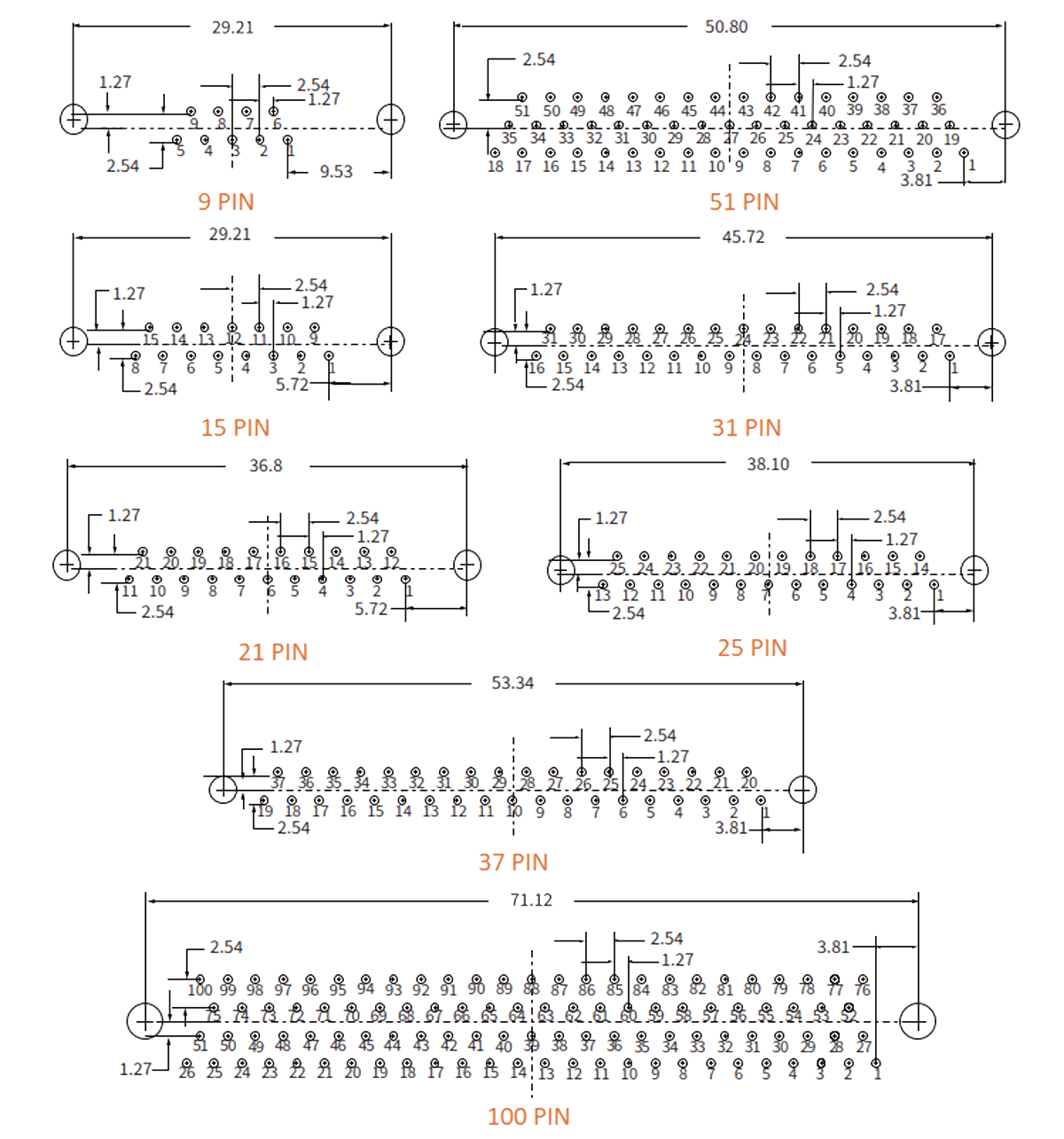

HMD PCB Connector BS Termination BS Termination pinHMD PCB Connector BS Termination BS Termination socket
