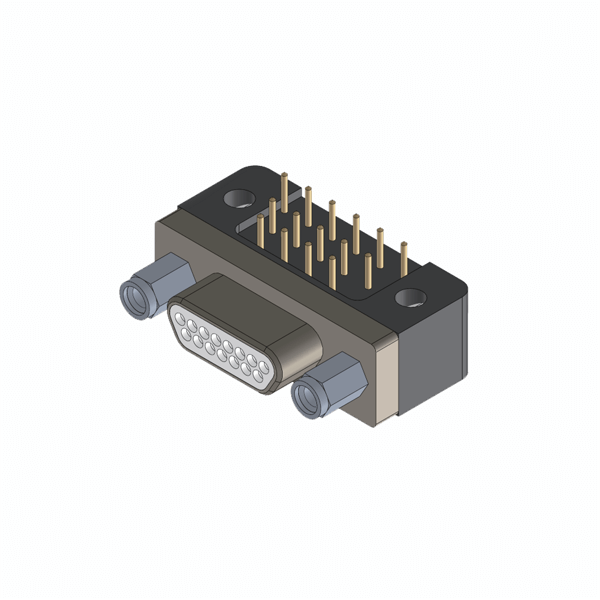

HMD PCB Connector CBR Termination

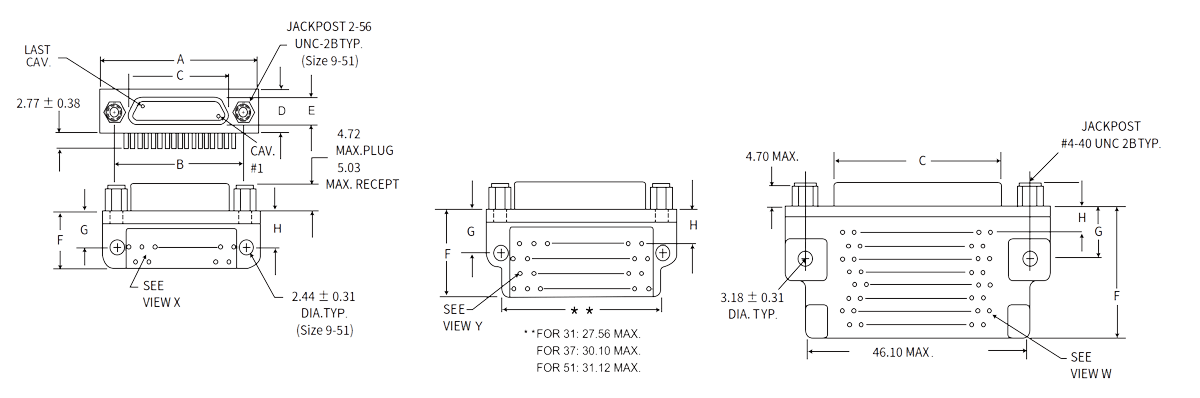

Speciﬁcation: GJB2446A.
A more economical replacement for MIL-STD-83513 Micro-D connectors.
The connector features gold plated TwistPin contacts and nickel plated or gold-plated shells.
With the same PCB layout as M83513 CBR series.

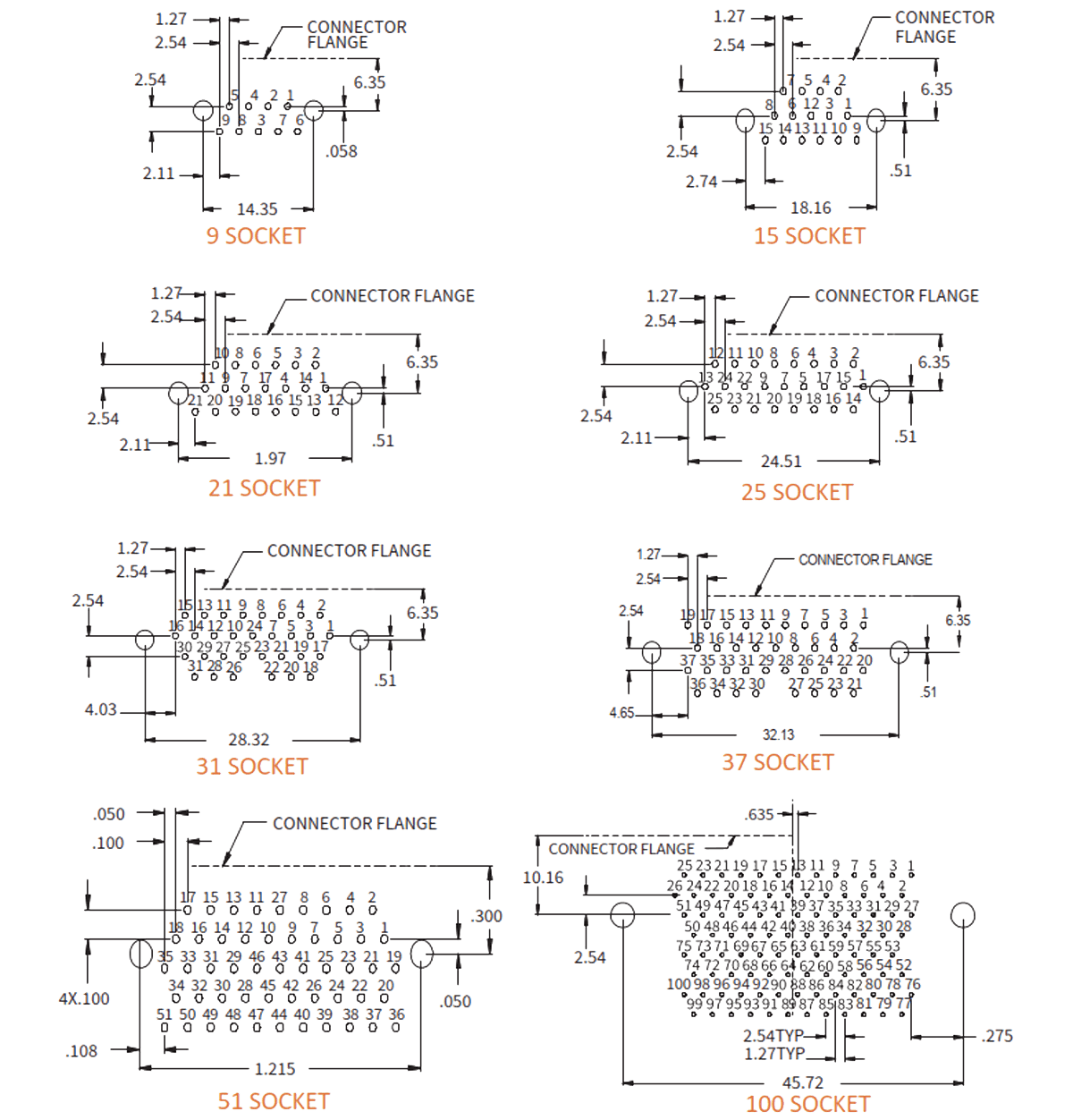

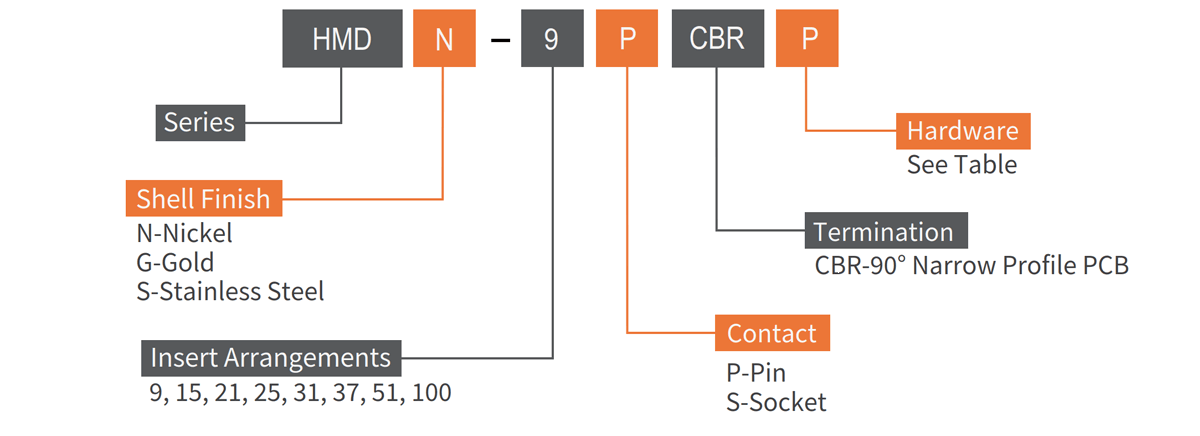

9, 15, 21, 25, 31, 37, positions are available for both plug and socket.

Operating Temperature	-55 ℃ to +125 ℃
Vibration	Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock	735 m/s²
Rated Current	3 A
Contact Resistance	≤ 10 mΩ
Insulated Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	800 VAC
Mechanical Life	≥ 500 cycles

Connector Shell	Aluminum Alloy or Stainless Steel, 300 Series
Insulator	Liquid Crystal Polymer (LCP)/ Polyphenyl Sulﬁde(PPS)
Interfacial Seal	Fluorosilicone Rubber
Pin Contact	Beryllium Copper, Gold over Nickel Plating
Socket Contact	Copper Alloy, Gold Over Nickel Plating
Hardware	300 Series SUS
Encapsulant	Epoxy
