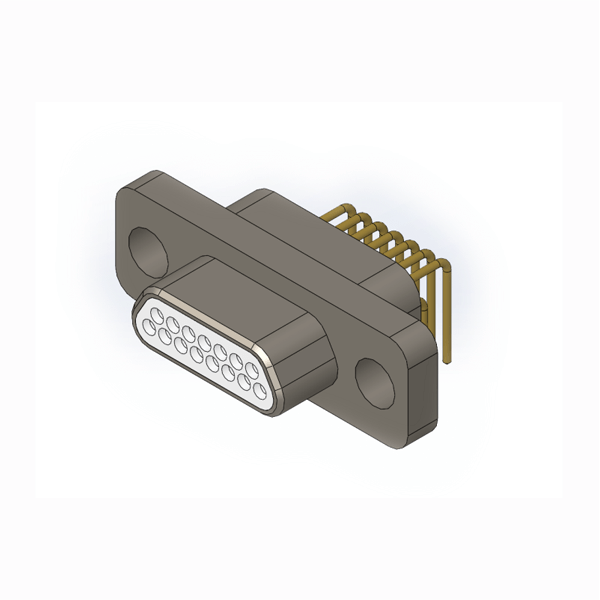

J30J Micro-D 1.27*2.54 Right Angle PCB Connector

Speciﬁcation: GJB2446A.

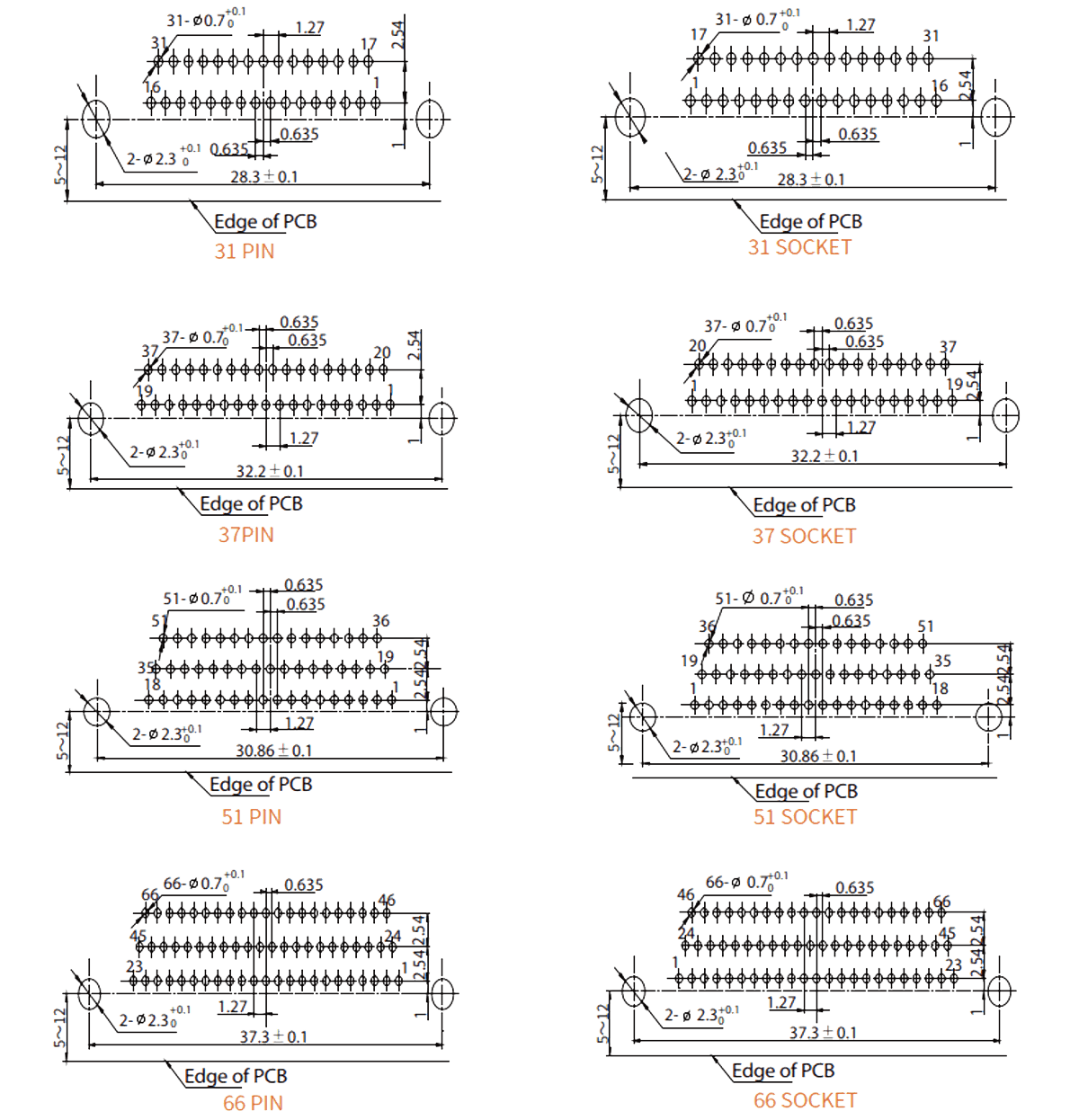

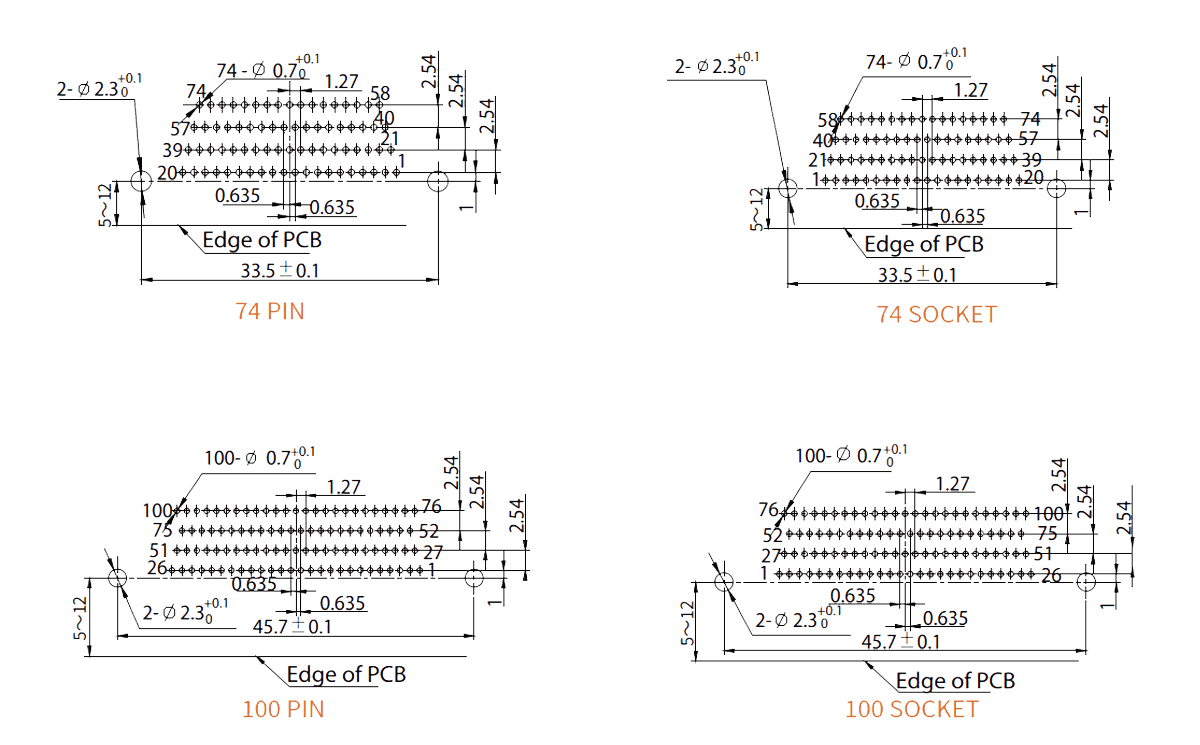

PCB layout 1.27*2.54mm
A more economical replacement for MIL-STD-83513 Micro-D connectors.
9, 15, 21, 25, 31, 37, 51, 66, 74, 100 positions are available for both plug and socket.
The connector features gold plated TwistPin contacts and nickel plated shells.
Contacts are potted with standard expoxy which withstands -55°C to +125°C. High-temp epoxy -55°C to +200°C optional.

Operating Temperature	-55 ℃ to +125 ℃
Vibration	Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock	735 m/s²
Rated Current	3 A
Contact Resistance	≤ 10 mΩ
Insulated Resistance	≥ 5000 MΩ
Dielectric Withstand Voltage	800 VAC
Mechanical Life	≥ 500 cycles

Connector Shell	Aluminum Alloy or Stainless Steel, 300 Series
Insulator	Liquid Crystal Polymer (LCP)/Polyphenyl Sulﬁde(PPS)
Interfacial Seal	Fluorosilicone Rubber
Pin Contact	Beryllium Copper, Gold over Nickel Plating
Socket Contact	Copper Alloy, Gold Over Nickel Plating
Hardware	300 Series SUS
Encapsulant	Epoxy

Mounting Hardware

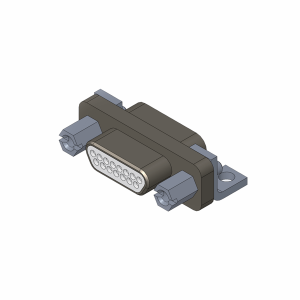

None	P7

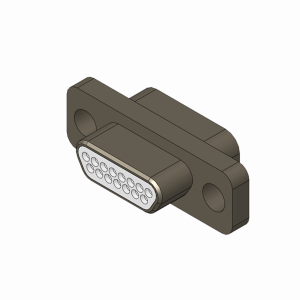

Tru-hole	PCB Mount Right Angle Mounting Bracket

Dimensions

Code	A	B	C	D		E
J30J-9TJW/ZKW-J	19.6	14.3	7.6	8.3(TJW-J)	9.8(ZKW-J)	9.9
J30J-9TJW/ZKW-J	23.5	18.2	7.6	12.3(TJW-J)	13.7(ZKW-J)	13.8
J30J-9TJW/ZKW-J	27.4	22	7.6	16(TJW-J)	17.4(ZKW-J)	17.6
J30J-9TJW/ZKW-J	29.8	24.5	7.6	18.6(TJW-J)	20(ZKW-J)	20.2
J30J-9TJW/ZKW-J	33.6	28.3	7.6	22.4(TJW-J)	23.8(ZKW-J)	24
J30J-9TJW/ZKW-J	37.4	32.2	7.6	26.3(TJW-J)	27.7(ZKW-J)	27.8
J30J-9TJW/ZKW-J	36.4	30.86	8.7	25(TJW-J)	26.5(ZKW-J)	26.6
J30J-9TJW/ZKW-J	42.9	37.3	8.7	31.4(TJW-J)	32.9(ZKW-J)	33
J30J-9TJW/ZKW-J	38.8	33.5	9.7	27.5(TJW-J)	29(ZKW-J)	29.1
J30J-9TJW/ZKW-J	54.7	45.7	9.7	35(TJW-J)	36.6(ZKW-J)	36.6
