J30J Micro-D 2.54*2.54 Right Angle PCB Connector

J30J Micro-D 2.54*2.54 Right Angle PCB Connector

  • Specification: GJB2446A.
  • PCB layout 2.54*2.54mm
  • A more economical replacement for MIL-STD-83513 Micro-D connectors.
  • 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 positions are available for both plug and socket.
  • The connector features gold plated TwistPin contacts and nickel plated shells.
  • Contacts are potted with standard expoxy which withstands -55°C to +125°C. High-temp epoxy -55°C to +200°C optional.
Category:

Performance Specifications

Operating Temperature -55 ℃ to +125 ℃
Vibration Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock 735 m/s²
Rated Current 3 A
Contact Resistance ≤ 10 mΩ
Insulated Resistance ≥ 5000 MΩ
Dielectric Withstand Voltage 800 VAC
Mechanical Life ≥ 500 cycles

Materials and Finishes

Connector Shell Aluminum Alloy or Stainless Steel, 300 Series
Insulator Liquid Crystal Polymer (LCP)/Polyphenyl Sulfide(PPS)
Interfacial Seal Fluorosilicone Rubber
Pin Contact Beryllium Copper, Gold over Nickel Plating
Socket Contact Copper Alloy, Gold Over Nickel Plating
Hardware 300 Series SUS
Encapsulant Epoxy

How to Order

J30J Micro D 2.54x2.54 right angle how to order

Mounting Hardware
None

P7

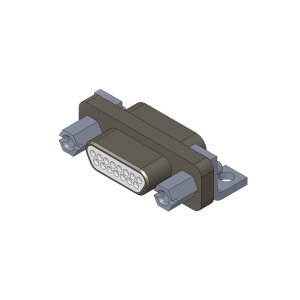

J30J Series tru hole 2 J30J Series P7 mounting hardeware 1

Tru-hole

PCB Mount

Right Angle

Mounting Bracket

Dimensions

J30J Micro D 2.54x2.54 right angle dimensions

Code

 A B D E
J30J-9TJW/ZKW 19.6 14.3 8.3(TJW) 9.8(ZKW)

9.9

J30J-15TJW/ZKW

 23.5 18.2 12.3(TJW) 13.7(ZKW) 13.8
J30J-21TJW/ZKW 27.4 22 16(TJW) 17.4(ZKW)

17.6

J30J-25TJW/ZKW

 29.8 24.5 18.6(TJW) 20(ZKW) 20.2
J30J-31TJW/ZKW 33.6 28.3 22.4(TJW) 23.8(ZKW)

24

J30J-37TJW/ZKW

 37.4 32.2 26.3(TJW) 27.7(ZKW) 27.8
J30J-51TJW/ZKW 36.4 30.86 25(TJW) 26.5(ZKW)

26.6

J30J-66TJW/ZKW

 42.9 37.3 31.4(TJW) 32.9(ZKW)

33

PCB Layouts

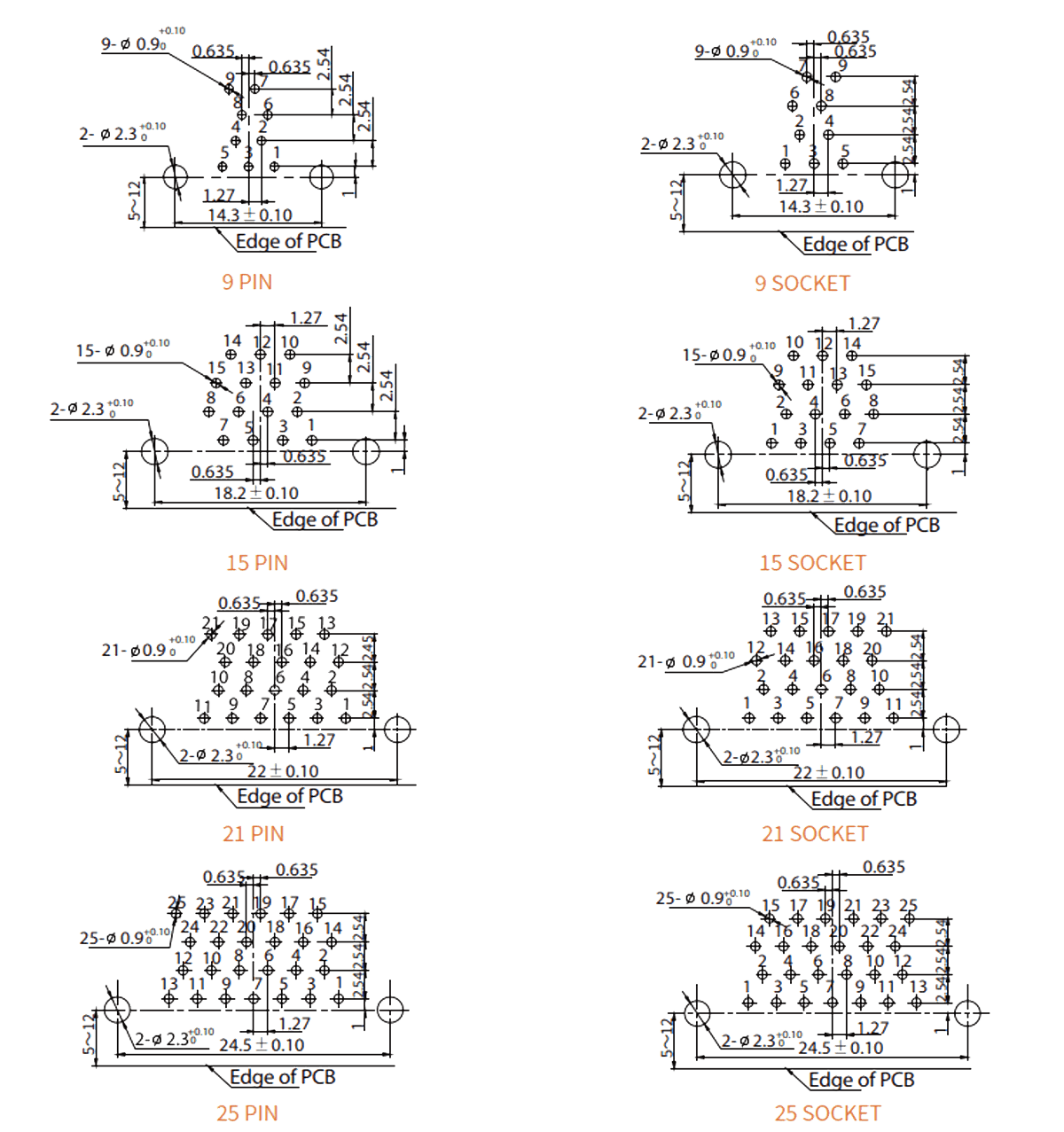

J30J Micro D 2.54x2.54 right angle pcb layouts 9 25

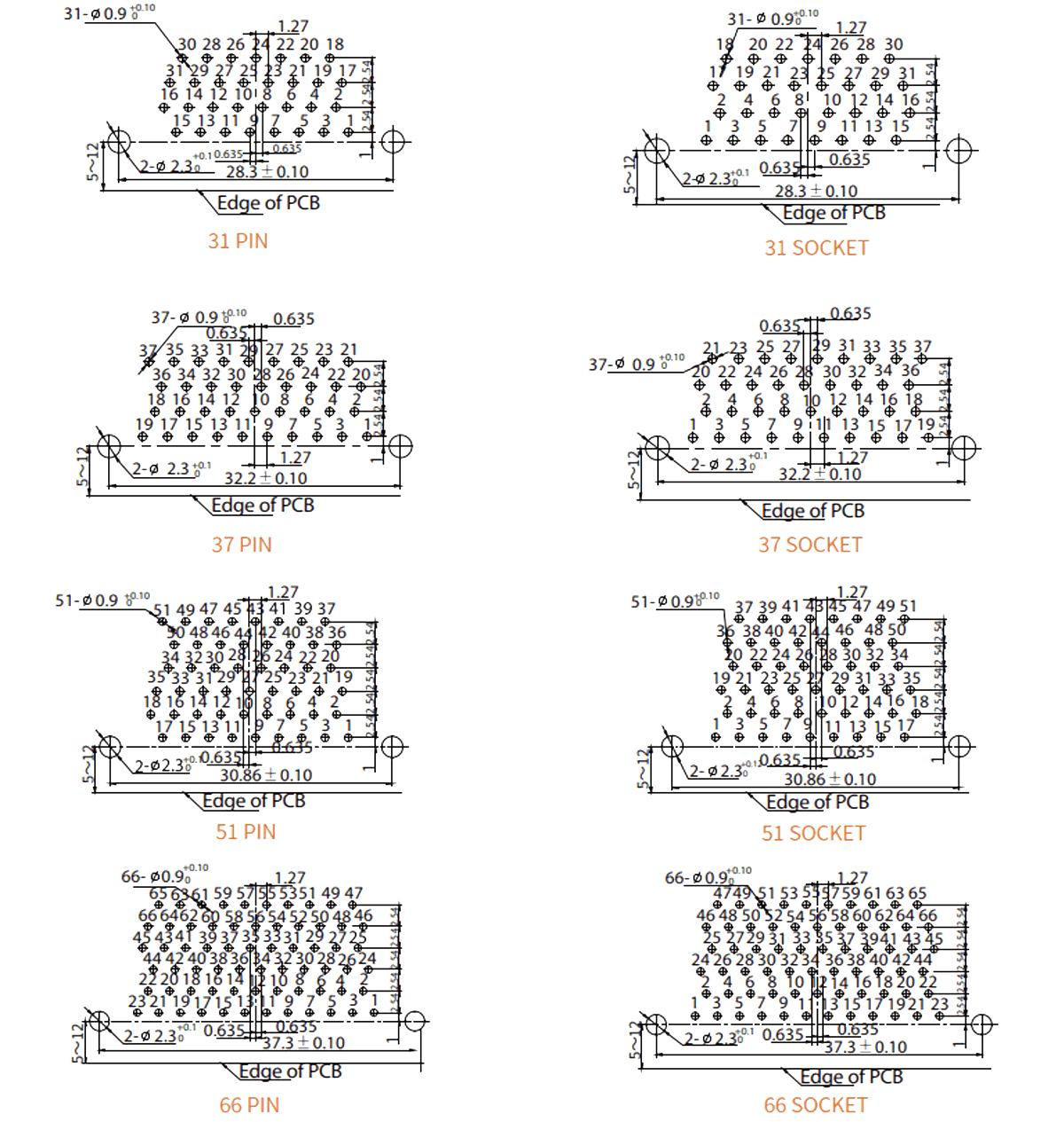

J30J Micro D 2.54x2.54 right angle pcb layouts 31 66
