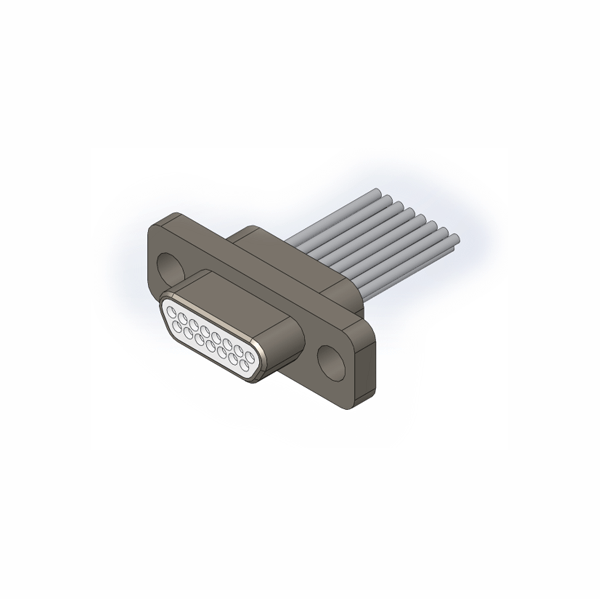

J30J Micro-D Pre-wired Connector

J30J Micro-D Pre-wired Connector



  • Specification: GJB2446A.
  • A more economical replacement for MIL-STD-83513 Micro-D connectors.
  • Customized color sequence and length are available upon request.
  • Crimped to twist pin contacts or sockets, the wire is silver-plated and PTFE insulated.
  • 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 positions are available for both plug and socket.



Category:

Performance Specifications

Operating Temperature -55 ℃ to +125 ℃
Vibration Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock 735 m/s²
Rated Current 3 A
Contact Resistance ≤ 10 mΩ
Insulated Resistance ≥ 5000 MΩ
Dielectric Withstand Voltage 800 VAC
Mechanical Life ≥ 500 cycles

Materials and Finishes

Connector Shell Aluminum Alloy or Stainless Steel, 300 Series
Insulator Liquid Crystal Polymer (LCP)/Polyphenyl Sulfide(PPS)
Interfacial Seal Fluorosilicone Rubber
Pin Contact Beryllium Copper, Gold over Nickel Plating
Socket Contact Copper Alloy, Gold Over Nickel Plating
Hardware 300 Series SUS
Encapsulant Epoxy

How to Order

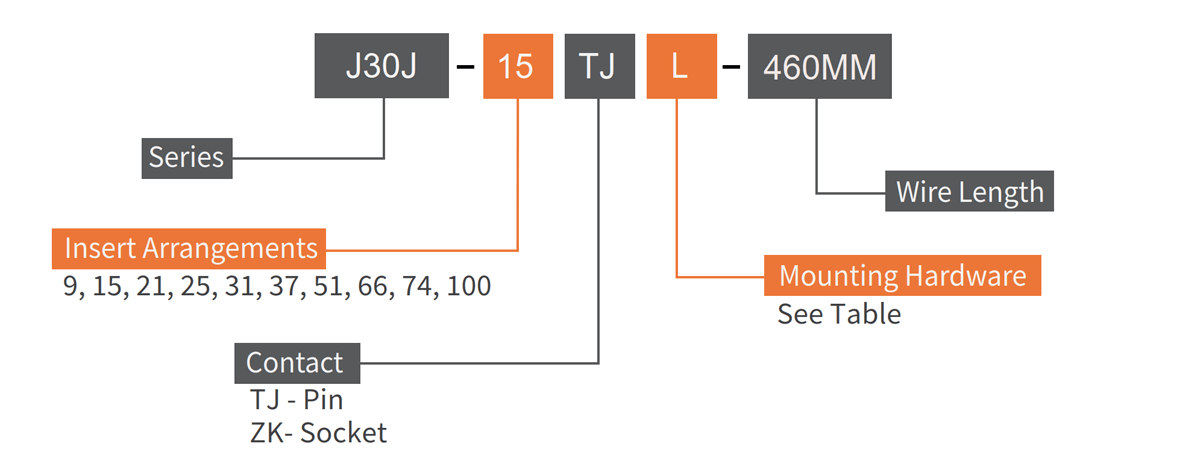

J30J Micro D pre wired connector how to order



Mounting Hardware
None L L7 P

F
J30J Series tru hole 4 30J Series L mounting hardware J30J Series L7 mounting hardware J30J Series P mounting hardware J30J Series F mounting hardware 3

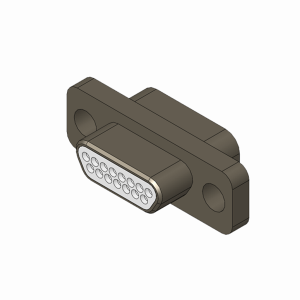

Tru-hole

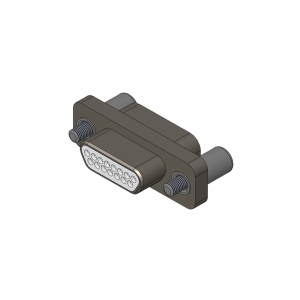

 Captive M2

Cross Head Screw

 Captive M2

Slot Head Screw

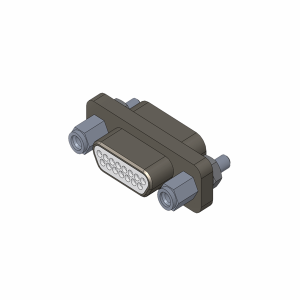

 Jackpost M2 Threaded

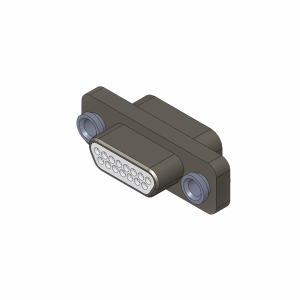

Float Mount

Dimensions

J30J Micro D pre wired connector dimensions



Code

 A B C D E F G
HMD*-9P 19.6 14.3 7.6 8.3 9.9 4.7

6.8

HMD*-15P

 23.5 18.2 7.6 12.3 13.8 4.7 6.8
HMD*-21P 27.4 22 7.6 16 17.6 4.7

6.8

HMD*-25P

 29.8 24.5 7.6 18.6 20.2 4.7 6.8
HMD*-31P 33.6 28.3 7.6 22.4 24 4.7

6.8

HMD*-37P

 37.4 32.2 7.6 26.3 27.8 4.7 6.8
HMD*-51P 36.4 30.86 8.7 25 26.6 5.8

7.9

HMD*-66P

 42.9 37.3 8.7 31.4 33 5.8 7.9
HMD*-74P 38.8 33.5 9.7 27.5 29.1 6.8

9.1

HMD*100P

 54.7 45.7 9.7 35 36.6 6.8 9.1
HMD*-9S 19.6 14.3 7.6 9.8 9.9 6.1

6.8

HMD*-15S

 23.5 18.2 7.6 13.7 13.8 6.1 6.8
HMD*-21S 27.4 22 7.6 17.4 17.6 6.1

6.8

HMD*-25S

 29.8 24.5 7.6 20 20.2 6.1 6.8
HMD*-31S 33.6 28.3 7.6 23.8 24 6.1

6.8

HMD*-37S

 37.4 32.2 7.6 27.7 27.8 6.1 6.8
HMD*-51S 36.4 30.86 8.7 26.5 26.6 7.2

7.9

HMD*-66S

 42.9 37.3 8.7 32.9 33 7.2 7.9
HMD*-74S 38.8 33.5 9.7 29 29.1 8.3

9.1

HMD*100S

 54.7 45.7 9.7 36.6 36.65 8.2

9.1
