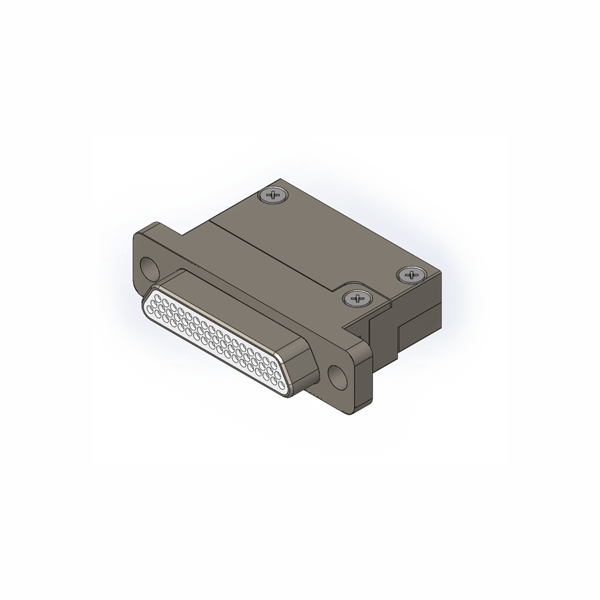

J30J Micro-D Pre-wired Connector with Cable Clamp

J30J Micro-D Pre-wired Connector with Cable Clamp

  • Specification: GJB2446A.
  • A more economical replacement for MIL-STD-83513 Micro-D connectors.
  • 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 positions are available for both plug and socket.
  • The connector features gold plated TwistPin contacts and nickel-plated shells.
  • Solder cup contacts are potted with standard expoxy which withstands -55°C to +125°C. High-temp epoxy -55°C to +200°C optional.



Category:

Performance Specifications

Operating Temperature -55 ℃ to +125 ℃
Vibration Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock 735 m/s²
Rated Current 3 A
Contact Resistance ≤ 10 mΩ
Insulated Resistance ≥ 5000 MΩ
Dielectric Withstand Voltage 800 VAC
Mechanical Life ≥ 500 cycles

Materials and Finishes

Connector Shell Aluminum Alloy or Stainless Steel, 300 Series
Insulator Liquid Crystal Polymer (LCP)/Polyphenyl Sulfide(PPS)
Interfacial Seal Fluorosilicone Rubber
Pin Contact Beryllium Copper, Gold over Nickel Plating
Socket Contact Copper Alloy, Gold Over Nickel Plating
Hardware 300 Series SUS
Encapsulant Epoxy

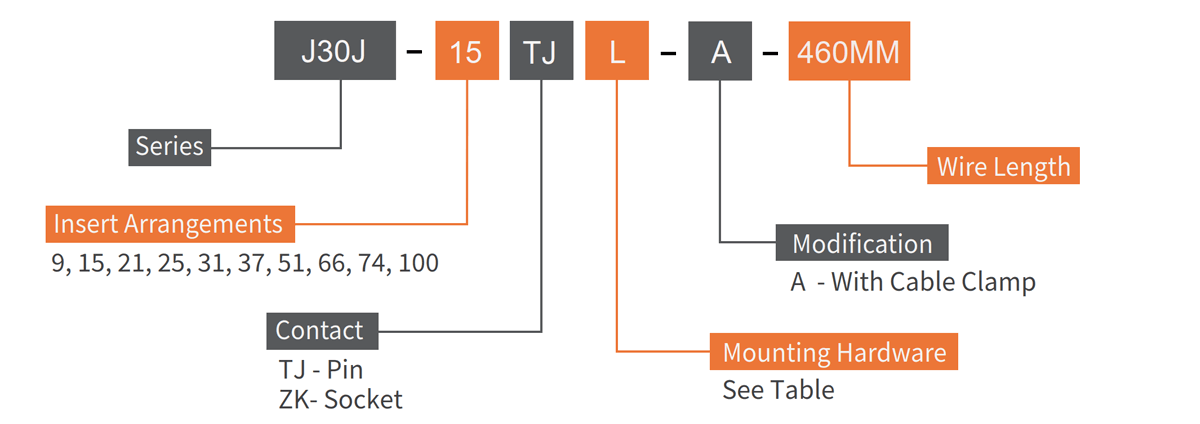

How to Order

J30J Micro D pre wired connector with cable clamp how to order



Mounting Hardware
None L L7 P

F

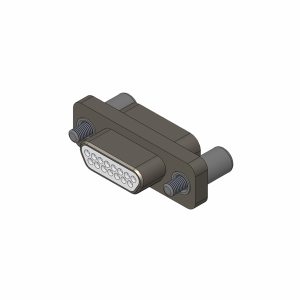

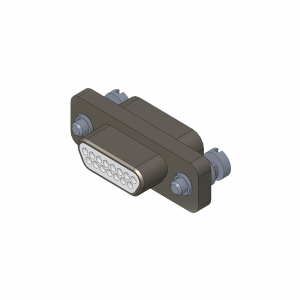

J30J Series tru hole 5 J30J Series L mounting hardware J30J Series L7 mounting hardware 1 J30J Series P mounting hardware 1 J30J Series F mounting hardware 1

Tru-hole

 Captive M2

Cross Head Screw

 Captive M2

Slot Head Screw

 Jackpost M2 Threaded Float Mount

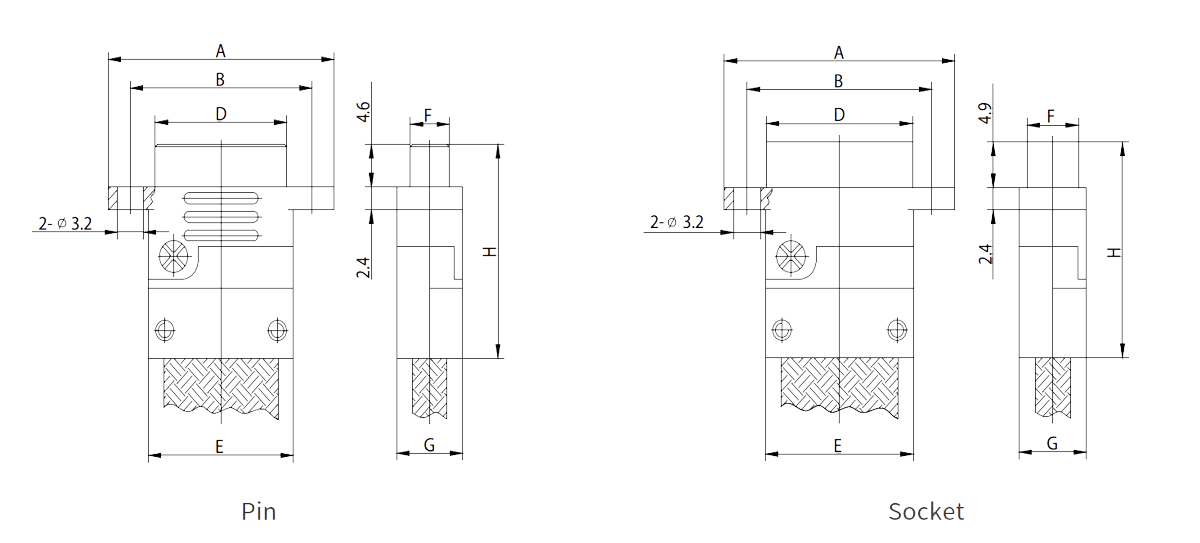

Dimensions

J30J Micro D pre wired connector with cable clamp dimensions



Code

 A B D E F G H
TJ-A ZK-A TJ-A ZK-A TJ-A

ZK-A

J30J-9TJ/ZK-A

 19.6 14.3 8.3 9.8 9.9 4.7 6.1 8 23 23.5
J30J-15TJ/ZK-A 23.5 18.2 12.3 13.7 13.8 4.7 6.1 8 23

23.5

J30J-21TJ/ZK-A

 27.4 22 16 17.4 17.6 4.7 6.1 8 23 23.5
J30J-25TJ/ZK-A 29.8 24.5 18.6 20 20.2 4.7 6.1 8 23

23.5

J30J-31TJ/ZK-A

 33.6 28.3 22.4 23.8 24 4.7 6.1 8 23 23.5
J30J-37TJ/ZK-A 37.4 32.2 26.3 27.7 27.8 4.7 6.1 8 23

23.5

J30J-51TJ/ZK-A

 36.4 30.86 25 26.5 26.6 5.8 7.2 9 23 23.5
J30J-66TJ/ZK-A 42.9 37.3 31.4 32.9 33 5.8 7.2 9 23

23.5

J30J-74TJ/ZK-A

 38.8 33.5 27.4 29 29.1 6.8 8.3 11 25 25.5
J30J-100TJ/ZK-A 54.7 45.7 35 36.6 36.8 6.8 8.2 11 25

25.5
