Specifications
| Characteristics | Parameter |
| Quality Grade | Military Products (Ⓙ) |
| Operating Temperature | -55°C ~ 125°C |
| Relative Humidity | 90% ~ 98% |
| Low Pressure Test | 4.39 kPa |
| Sinusoidal Vibration | 10 Hz ~ 2000 Hz |
| 196 m/s2 | |
| Random Vibration | 50 Hz ~ 2000 Hz |
| 40 (m/s2)2/Hz | |
| Shock | 980 m/s2 |
| Fastening Strength | ≥ 10 N |
| Weight (Plug-to-Receptacle) | ≤ 0.5 g (not include resistance of cable) |
| Life of Fastening Structure | ≥ 50 cycles |
| Mechanical Life | 500 cycles |
| Electrical Life | ≥ 10 cycles (direct current 22 A, operating time 50 ms) |
| Engaging Force and Separation Force | Max engaging force: 5.6 N
Mini separation force: 0.2 N |
Electrical Ratings
| Contact Resistance | ≤ 0.01 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstanding Voltage | ≥ 800 Vr.m.s. |
| Rated Current | 3 A |

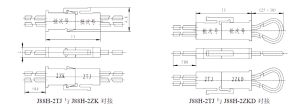

Dimension |
Circuit Diagram |
 |
 |
Order Mark
| J88H-2 | Z | K | (D) | Ⓙ |
| Part Number | Product Type
T- plug Z- receptacle |
Contact type
K-socket J-pin |
D is a short-circuit circuit | Quality Grade |
Technical Specification: RY0.369.029JT
Note: When selecting products, customers may specify crimped wire specifications after the product model number.
such as: conductor cross-sectional area, length, color, etc. (conductor core cross-sectional range: 0.1 mm² to 0.15 mm²).
Example: J88H-2TJ (AFR-250 wire, 0.12 mm², white, 600 mm length). For special wiring requirements, please provide the wiring configuration.
