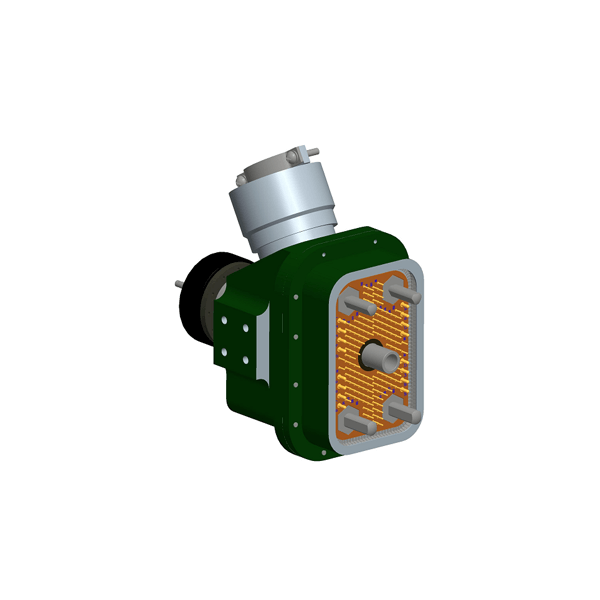

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Electroless Nickel Plating, Covered with military green/yellow paint |
| Insulator | Thermoplastic Plastic |
| Sealing Ring | Silicone Rubber and Nitrile Rubber |
| Contact | Gold-Plated Copper Alloy (Solder Cup) |
| Mechanical Life | 1000 cycles (JF14-182)
500 cycles (JF14-236) |
| Motor Driven Demating | DC 27 ± 3 V, Demating Time ≤0.2 s
Coil Resistance 6 ~ 7 Ω |
| Manual Demating | 120 N ~ 200 N (JF14-182/JF14-236Tn)
80 N ~ 200 N (JF14-236) |
| Sinusoidal Vibration | Acceleration 200 m/s2 |
| Random Vibration | Power Spectral Density 0.35 G²/Hz (JF14-182)
Power Spectral Density 0.4 G²/Hz (JF14-236) Total Acceleration RMS 25 G |
| Shock | Acceleration 1200 m/s2 |
| Acceleration | 490 m/s2 |
| Operating Temperature | -55℃ ~ +125℃ |
| Relative Humidity | At 40℃ ± 2℃: 92% ~ 98% |
| Operating Pressure | 2 MPa ~ 4×10-3 Pa |
| Rain Test | Rainfall 5 mm/min |
| Air Tightness | 2 MPa |
| Salt Spray Test | 48 h |
| Radiation Resistance | Total Neutron Dose: 6 × 10¹³ n/cm²
Total Gamma Dose: 1.1 × 10⁴ Gy |
Electrical Ratings
Contact Characteristics
|
Pin Diameter |
Φ1 mm | Φ2 mm | Φ3.5 mm | |
| Operating Current | 5 A | 20 A |
50 A |
|
|
Contact Resistance |
JF14-182 | ≤10 mΩ | ≤8 mΩ | – |
| JF14-236 | ≤15 mΩ | ≤4.5 mΩ |
≤3 mΩ |
|
|
Number of Contacts |
JF14-182 | 166 | 16 | – |
|
JF14-236 |
224 | 4 |
8 |
|
| Shielding |
≥30 MHz, ≥60 dB |
|||
Insulation Resistance
|
Test Status |
1 atm | High Temperature | Rain and Humid | Radiation |
| Pin and Pin Shell | ≥1000 MΩ | ≥50 MΩ | ≥50 MΩ |
≥500 MΩ |
|
Coil and Shell |
≥500 MΩ | ≥20 MΩ | ≥5 MΩ |
≥20 MΩ |
Dielectric Withstand Voltage
|
Test Status |
1 atm | Low Pressure | Rain and Humid |
| Pin and Pin Shell | 1000 V AC | 200 V AC |
250 V AC |
|
Coil and Shell |
625 V AC | 100 V AC |
200 V AC |

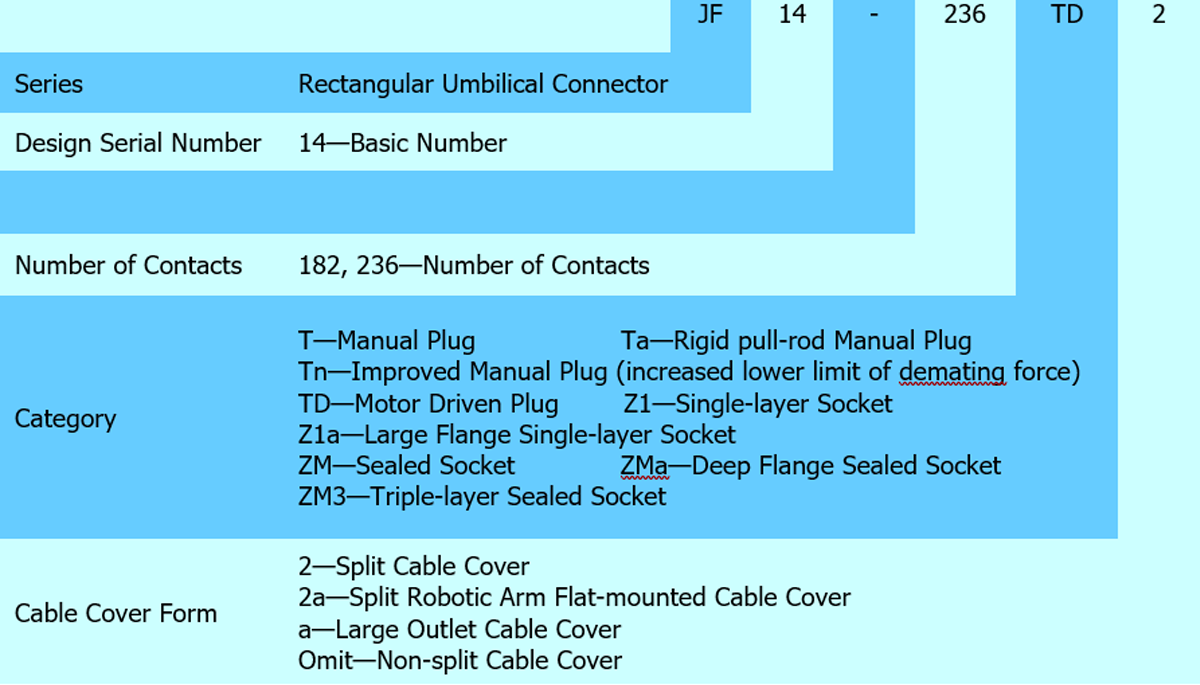

How to Order
Eg: JF14-236TD2: Indicates a JF14 type 236-core rectangular umbilical electric plug with split cable cover.
Connector Specifications
|
Quality Grade |
Plug Type/Component | Feature | Part Number of Socket |
Feature |
|
J Grade |
JF14-182T
JF14-182T2 JF14-182TD JF14-182TD2 JF14-182TDa JF14-182TD2a |
Integrated Cable Cover Manual Plug
Split Cable Cover Manual Plug Integrated Cable Cover Motor Driven Plug Split Cable Cover Motor Driven Plug Integrated Large Outlet Cable Cover Motor Driven Plug Split Flat-mounted Cable Cover for plug with motor
|
JF14-182Z1
JF14-182ZM JF14-182ZM3 |
Single-layer Socket (Unsealed) Sealed Socket (Sealed) Triple-layer Socket (Sealed) |
|
JF14-182-20 JF14-182-24 |
Socket Integrated Cable Cover Assembly Socket Split Cable Cover Assembly |
|||
|
J Grade |
JF14-236T
JF14-236T2 JF14-236Ta JF14-236Tn JF14-236TD JF14-236TD2 |
Integrated Cable Cover Manual Plug
Split Cable Cover Manual Plug Split Cable Cover Manual Plug Split Cable Cover Manual Plug Split Cable Cover Manual Plug Integrated Cable Cover Motor Driven Plug Split Cable Cover Motor Driven Plug |
JF14-236Z1 JF14-236Z1a
JF14-236ZM JF14-236ZMa JF14-236ZM3 |
Single-layer Socket (Unsealed) Large Mounting Flange Single-layer Socket (Unsealed) Sealed Socket (Sealed) Deep Flange Sealed Socket (Sealed) Triple-layer Sealed Socket (Sealed) |
|
JF14-236-05 JF14-236-42 |
Socket Integrated Cable Cover Assembly Socket Split Cable Cover Assembly |

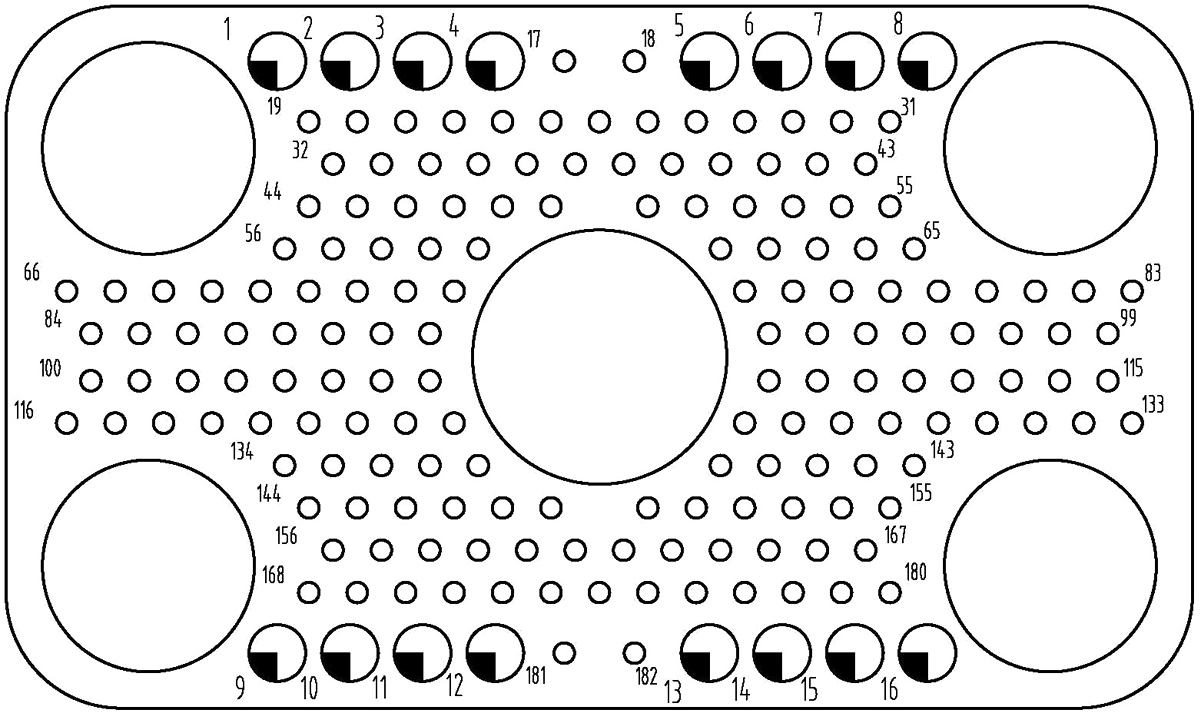

JF14 Series Contact Arrangement (Socket Mating View)
182 Pin
 |
236 Pin
 |
Solder Cup Specification
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area |
Solderable Area |
|
Φ3.5 mm |
 |
Φ4.5 mm | 15.90 mm2 | 11.13 mm2 |
|
Φ2 mm |
 |
Φ2.7 mm | 5.72 mm2 |
4.01 mm2 |
| Φ1 mm |  |
Φ1.5 mm | 1.77 mm2 |
1.24 mm2 |
Dimension

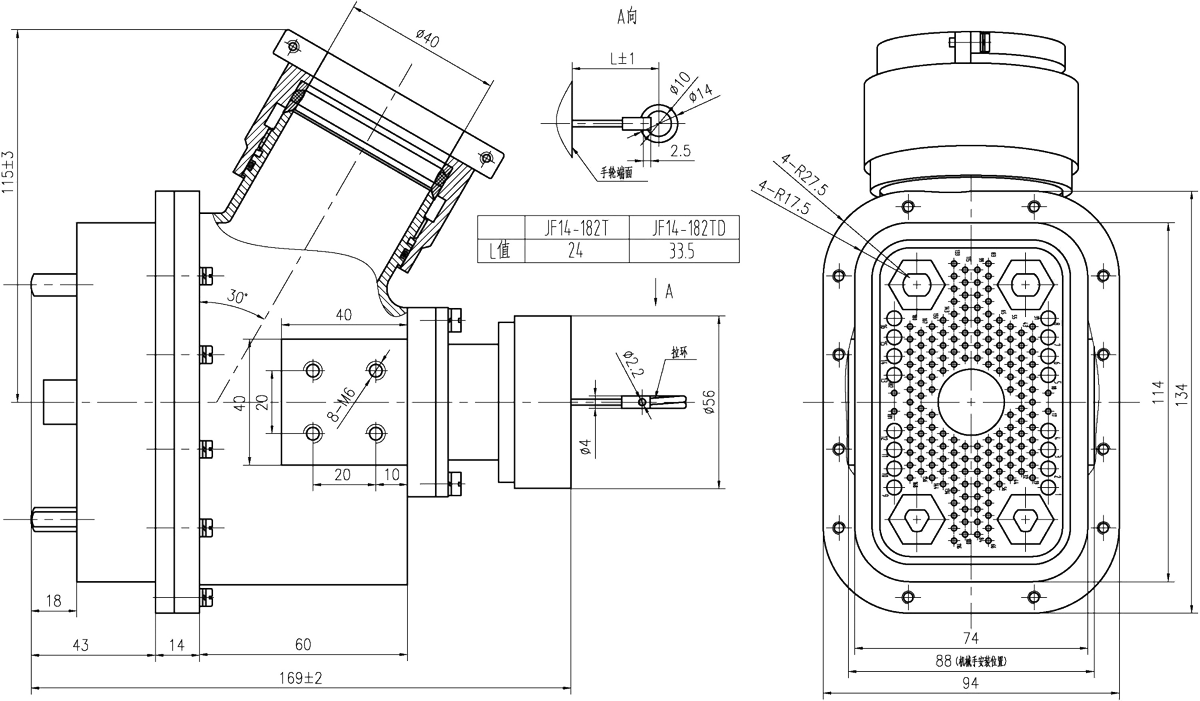

JF14-182T/TD Plug
 |

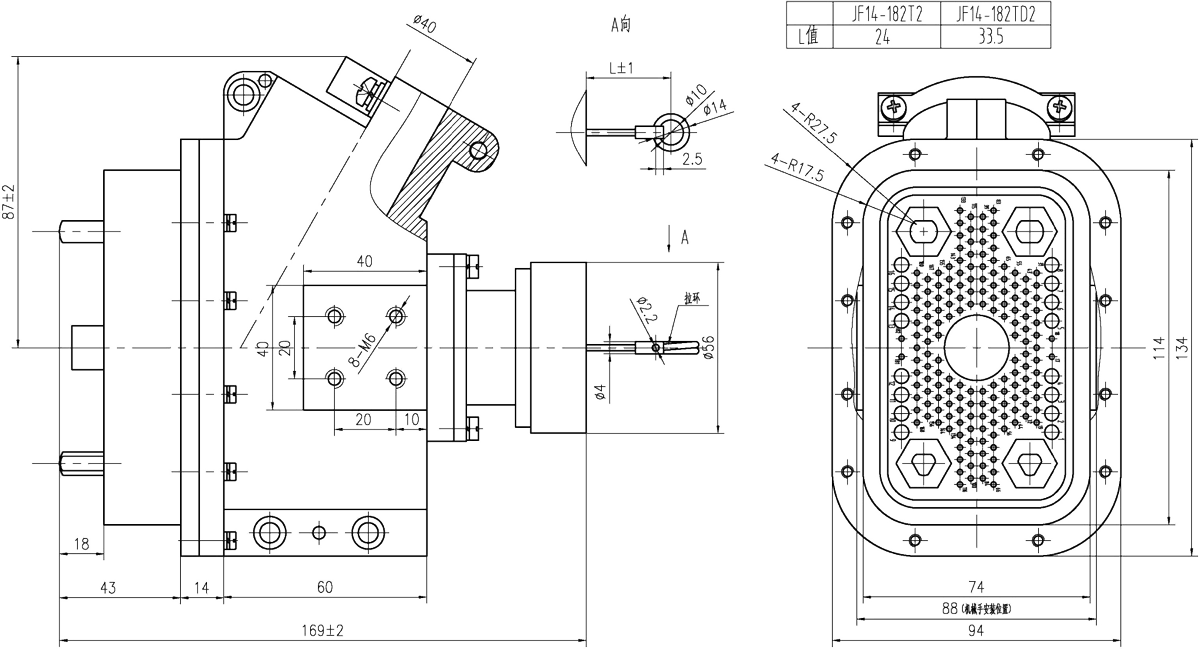

JF14-182T2/TD2 Plug
 |
JF14-182TDa Plug
 |

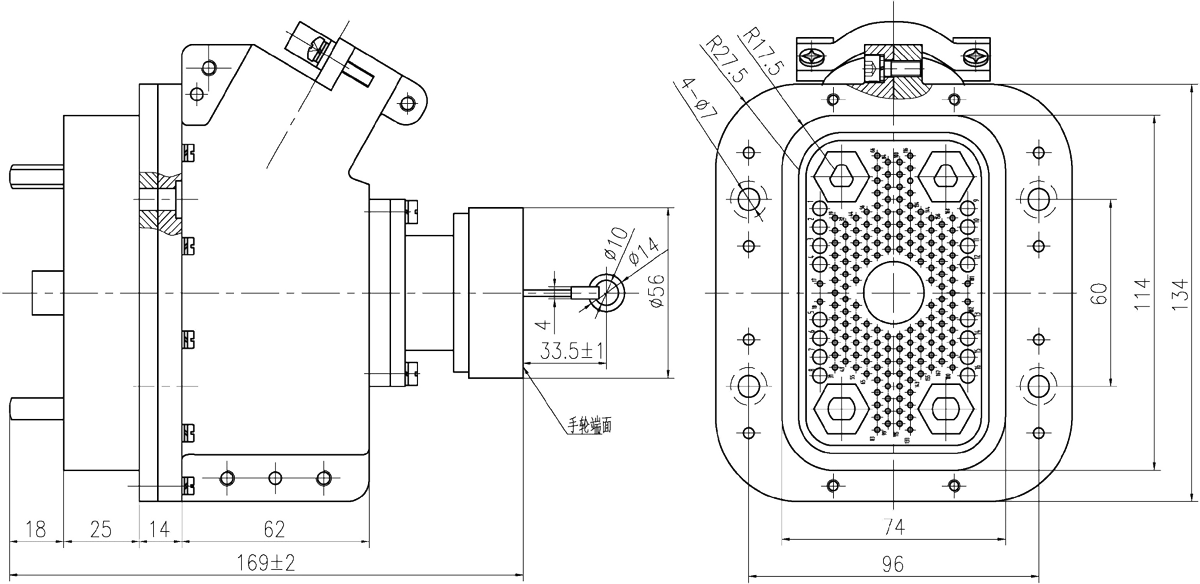

JF14-182TD2a Plug
 |

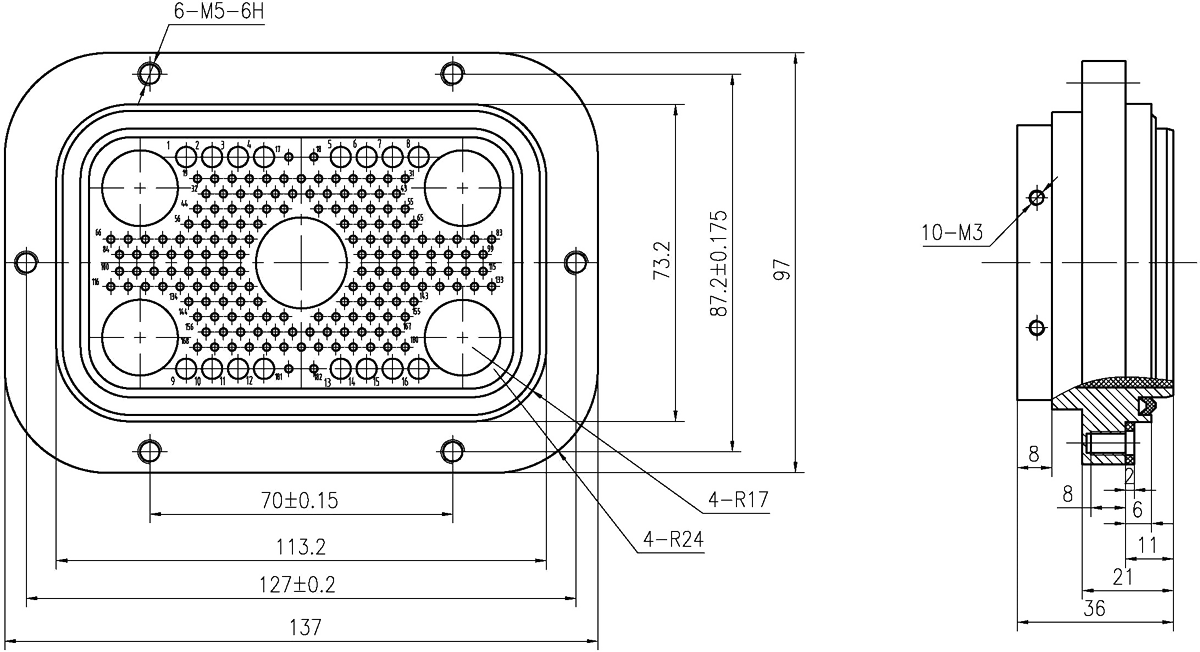

JF14-182Z1 Socket
 |
JF14-182ZM Socket
 |
JF14-182ZM3 Socket
 |
JF14-182 Dimension after Mating
 |
|
Dimension after Mating |
Sealing Gasket | L1 | L2 |
|
Plug mating with Z1 Socket |
Yes | 182 | 29 |
| Plug mating with ZM Socket | Yes | 200.5 |
29 |
| Plug mating with ZM3 Socket | No | 234.5 |
31 |
JF14-236T/TD/Ta Plug
 |
JF14-236T2/TD2/Tn Plug
 |
JF14-236Z1 Socket
 |
JF14-236Z1a Socket
 |
JF14-236ZM Socket
 |
JF14-236ZMa Socket
 |
JF14-236ZM3 Socket
 |

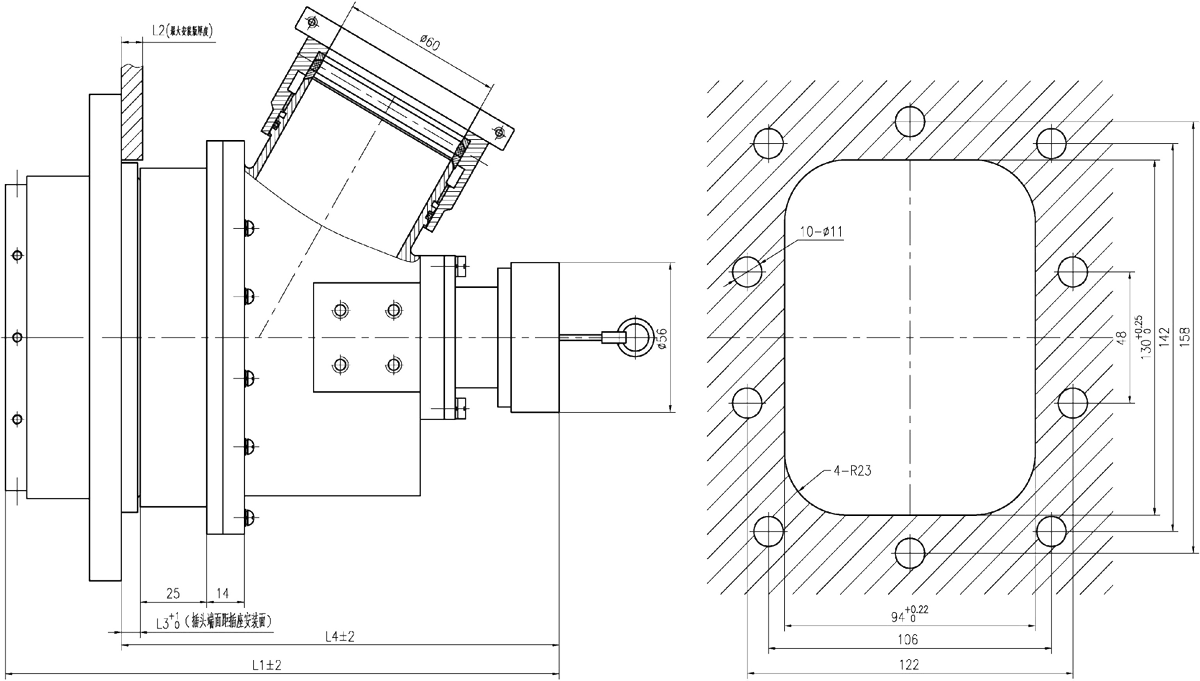

JF14-236 Dimension after Mating (1)
 |
|
Dimension after Mating |
L1 | L2 | L3 | L4 |
|
Plug with Z1a Socket |
196 | 31 | 6 | 157 |
| Plug with ZM Socket | 200.5 | 31 | 6 |
157 |
| Plug with ZMa Socket | 200.5 | 35 | 10 |
161 |
 |
|
Dimension after Mating |
L1 | L2 | L3 | L4 |
| Plug with Z1 Socket | 196 | 31 | 6 |
157 |
|
Plug with ZM3 Socket |
234.5 | 31 | 6 |
157 |
Backshells
|

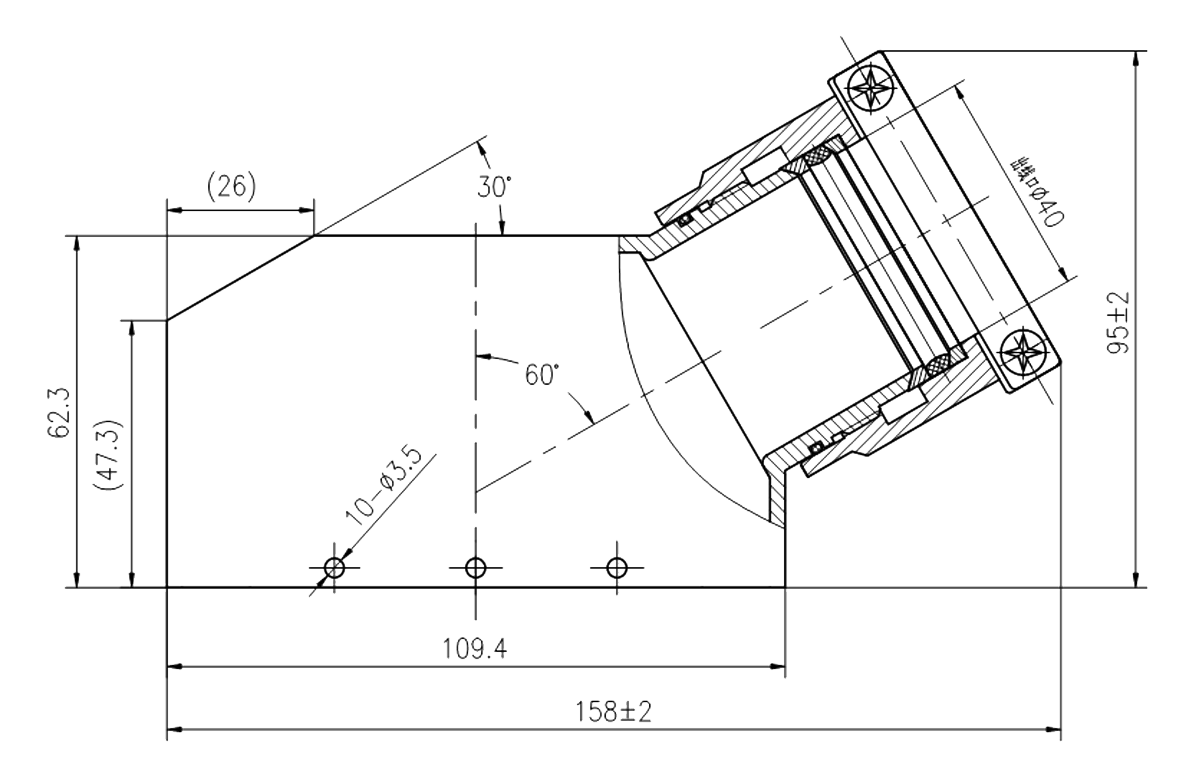

JF14-182-20 Socket Cable Cover
|

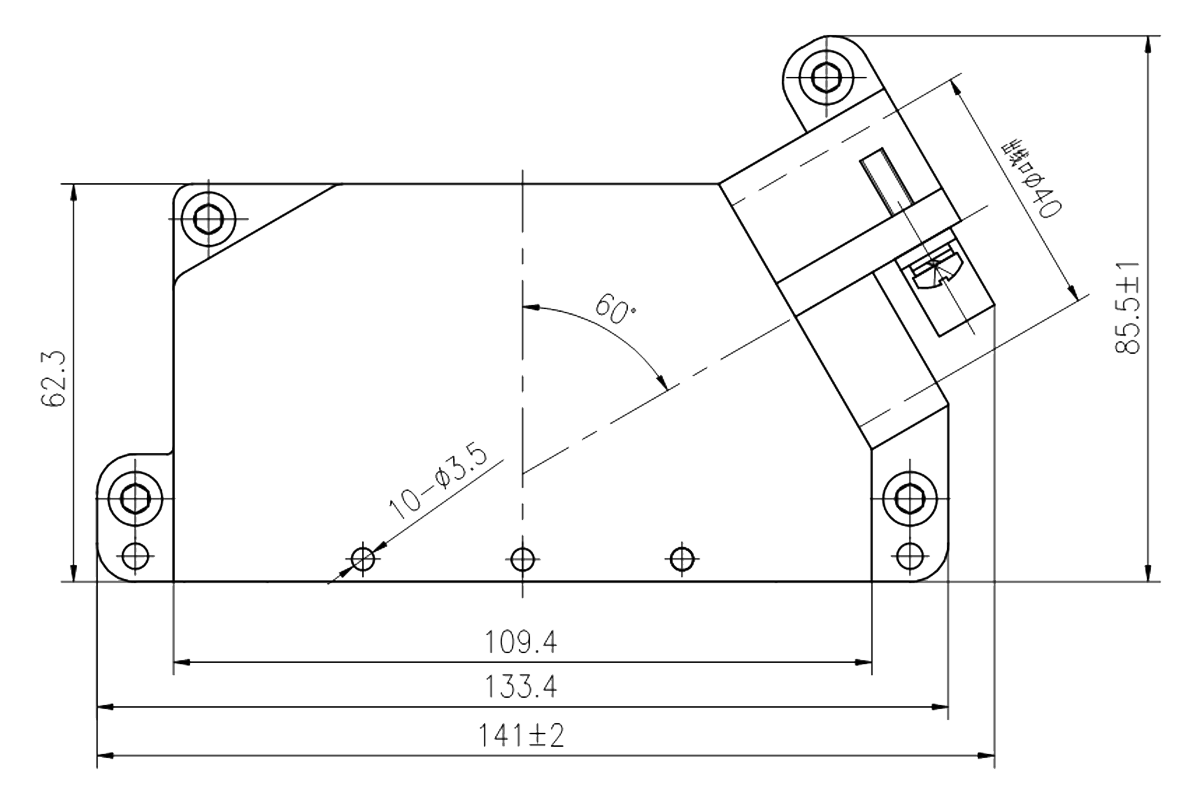

JF14-182-24 Socket Split Cable Cover
|

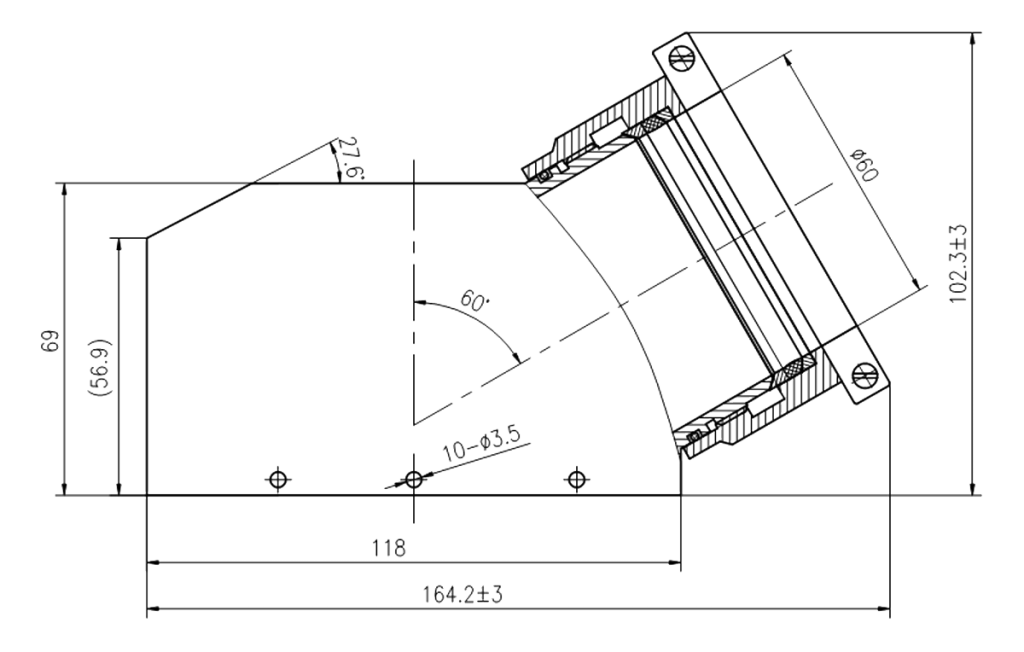

| JF14-236-05 Socket Cable Cover
|

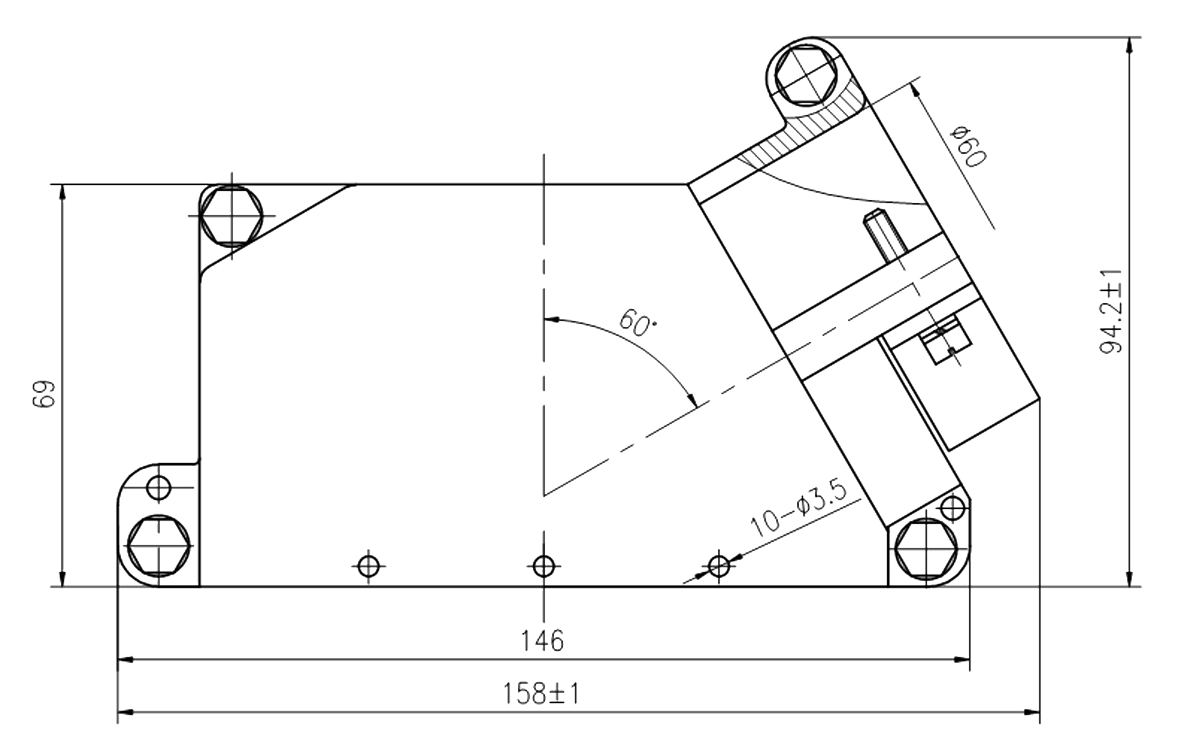

JF14-236-42 Socket Split Cable Cover
|
