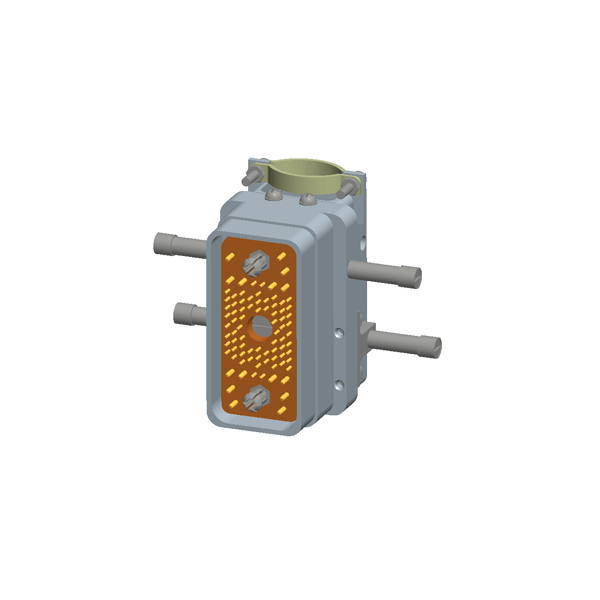

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Electroless Nickel Plating |
| Insulator | Thermoplastic Plastic |
| Rubber Gasket | Silicone Rubber |
| Contact | Gold-Plated Copper Alloy (Solder Cup) |
| Mechanical Life | 300 cycles
(200 cycles: connector mating and demating, 100 cycles: demating on the guide rails) |
| Shock | 11 ms Half-sine Wave, Peak Acceleration 490 m/s² |
| Quality Grade | J Grade |
| Operating Temperature | -55℃ ~ +125℃ |
| Salt Spray Test | 48 h |
| Relative Humidity | At 40℃ ± 2℃: 92% ~ 98% |
| Operating Pressure | 0.4 MPa ~ 6.67 MPa |
| Air Tightness | 0.4 MPa (Only 85 Pin) |
|
Product Specifications |
Mechanical Demating Force | Sinusoidal Vibration |
Random Vibration |
|
76 Pin |
60 N ~ 120 N | 10 Hz ~ 2000 Hz
Acceleration 200 m/s2 |
—— |
| 85 Pin | 150 N ~ 350 N | 2 Hz ~ 5.5 Hz
Equal Amplitude 12.7 mm 5.5 Hz ~ 200 Hz Constant Acceleration 14.7 m/s2 |
Power Spectral Density 0.1 G/Hz Total Acceleration RMS 11.6 G |
Electrical Ratings
Contact Resistance and Rated Current
|
Product Specifications |
76 Pin | 85 Pin | ||
| Contact Specifications | Φ0.8 | Φ1.6 | Φ1 |
Φ1.6 |
|
Number of Contacts |
66 | 10 | 70 | 15 |
| Contact Resistance | ≤5 mΩ | ≤3 mΩ | ≤5 mΩ |
≤3 mΩ |
|
Rated Current |
3 A | 15 A | 5 A |
15 A |
Insulation Resistance
|
Normal Temperature |
High Temperature | Humid Environment |
| ≥1000 MΩ | ≥500 MΩ |
≥50 MΩ |
Dielectric Withstand Voltage
|
Normal Temperature |
High Temperature | Humid Environment | Low Pressure |
| 1000 Vrms | 1000 Vrms | 500 Vrms |
200 Vrms |

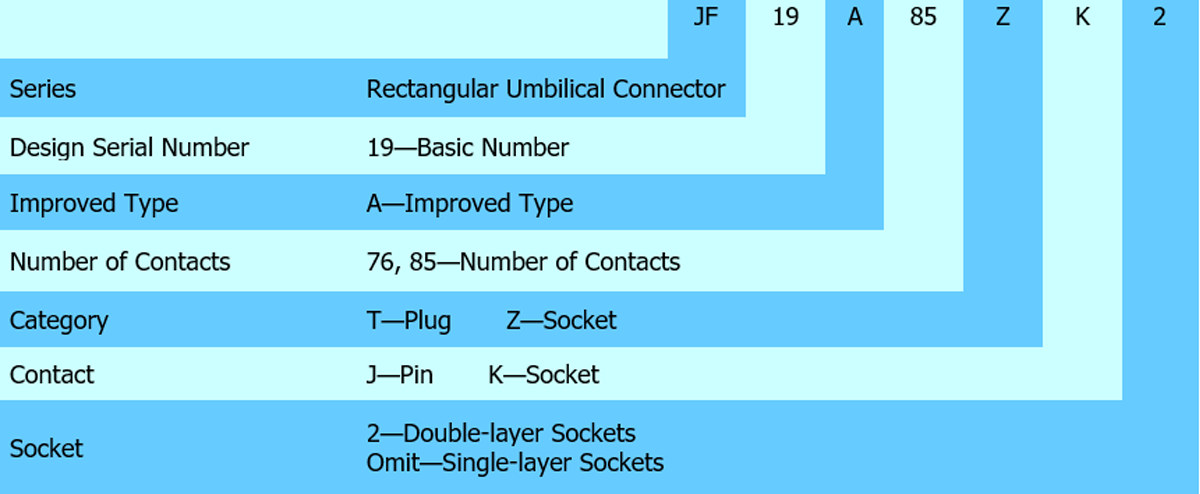

How to Order
Connector Specifications
|
Product Specifications |
Plug Type | Feature | Part Number of Socket | Feature |
| 76 Pin | JF19-76TJ | Guide Rail Umbilical Plug
(Single Cable Outlet at the rear) |
JF19-76ZK |
Guide Rail Umbilical Socket (Double Cable Outlet at the side) |
|
JF19A-76TJ |
Improved Guide Rail Umbilical Plug
(Single Cable Outlet at the side) |
JF19A-76ZK | Improved Guide Rail Umbilical Socket
(Double Cable Outlet at the side) |
|
| 85 Pin | JF19-85TJ | Guide Rail Umbilical Plug
(Single Cable Outlet at the side) |
JF19-85ZK2 |
Double-layer Guide Rail Umbilical Socket (Double Cable Outlet at the side) |
Guide Rail Assembly Specifications
|
Guide Rail Type |
Feature |
| JF19-76-01 |
Mating with JF19(A)-76 |
|
JF19A-76-01 |
|
|
JF19-85-01 |
Mating with JF19-85 |
JF19 Type Contact Arrangement (Front View of Socket Mating Surface)

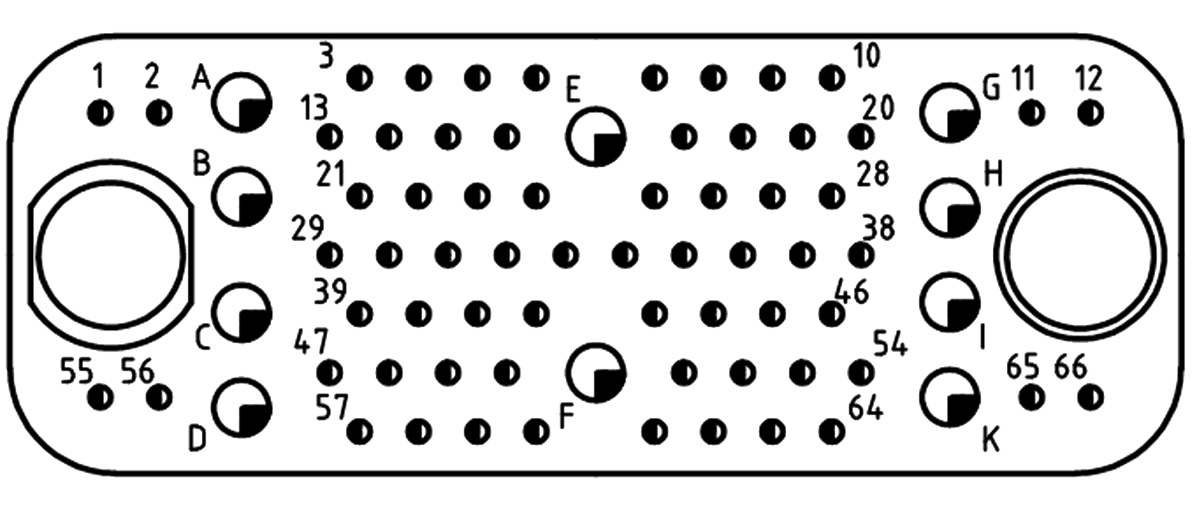

76 Pin Contact Diagram

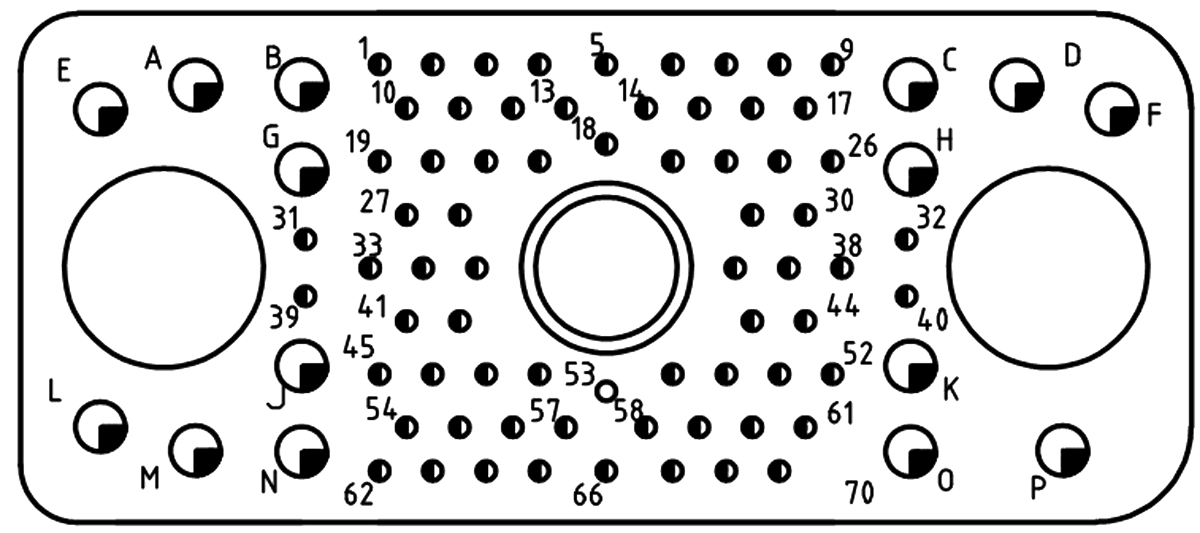

85 Pin Contact Diagram |
|
Symbol |
Contact Specifications | Number of Contacts | Contact Soldering Cup | |||
| 76 Pin | 85 Pin | Inner Diameter | Section Area |
Solderable Area |
||
 |
Φ0.8 mm |
66 | 70 | Φ1 mm | 0.79 mm2 | 0.55 mm2 |
 |
Φ1.6 mm | 10 | 15 | Φ1.8 mm | 2.54 mm2 |
1.78 mm2 |
Dimension
Guide Rail Umbilical Plug (JF19-85TJ)
 |
Guide Rail Umbilical Socket (JF19-85ZK2)
 |
Guide Rail Umbilical Plug (JF19-76TJ)
 |
Guide Rail Umbilical Plug (JF19A-76TJ)
 |
Guide Rail Umbilical Socket (JF19-76ZK)
 |
Guide Rail Umbilical Socket (JF19A-76ZK)
 |
Dimension after Mating
 |
Dimension after Mating
|
Plug Type |
Part Number of Socket | L1 | L2 | L3 | L4 (Locked State) | L4 (Before Mating) | Sealing Gasket |
| JF19-85TJ | JF19-85ZK2 | 14 mm | 4 mm | 60+2 0mm | 122+4 0mm | 132+4 0mm |
Yes |
|
JF19-76TJ |
JF19(A)-76ZK | 23 mm | 4 mm | 57+2 0mm | 95+4 0mm
(To the outlet)
(To the outlet) |
101.5+4 0mm
(To the outlet) |
No |
| JF19A-76TJ | JF19(A)-76ZK | 15 mm | 4 mm | 50+2 0mm | 88+4 0mm | 93.5+6 0mm |
No |
Panel Hole Dimensions
|
Plug Type |
Part Number of Socket | L5 | L6 | L7 | L8 | D1 | D2 |
| JF19-85TJ | JF19-85ZK2 | 35.2 mm | 69.8 mm | 44 ± 0.1 mm | 78 ± | R6 |
Φ4.5 |
|
JF19(A)-76TJ |
JF19(A)-76ZK | 28.4 mm | 64.4 mm | 28 ± 0.1 mm | 70 ± 0.1 mm | R7 |
Φ3.5 |
Guide Rail Assembly
Guide Rail Assembly (JF19-85-01)
 |
Guide Rail Assembly (JF19-76-01)
 |
Guide Rail Assembly (JF19A-76-01)
 |
