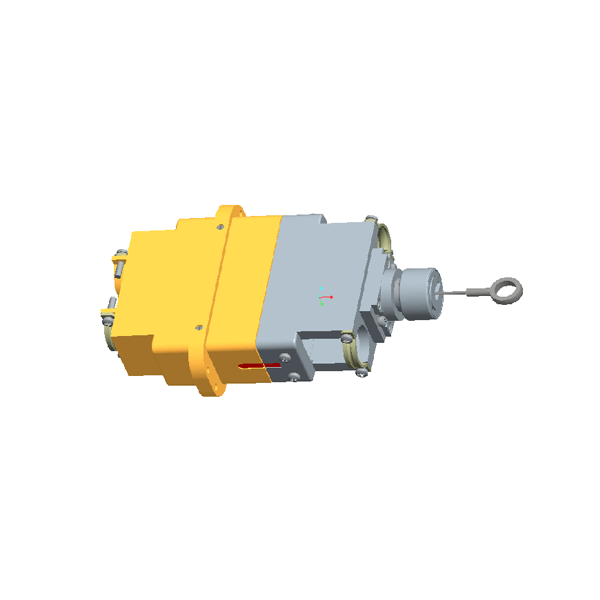

Specifications
| Shell | Aluminum Alloy, Brass (JF22A-142ZK) |
| Shell Finishing | Electroless Nickel Plating |
| Insulator | FX-502 Plastic |
| Contact | Gold-Plated Copper Alloy (Solder Cup)
Crimp (JF22A-142ZK) |
| Mechanical Life | 1000 cycles[1], 500 cycles[2] |
| Mechanical Demating Force | 80 N ~ 200 N[1]
160 N ~ 350 N[2] |
| Sinusoidal Vibration | 7 Hz ~ 14 Hz: Dual Amplitude 8 mm
14 Hz ~ 35 Hz: Acceleration 10 g 35 Hz ~ 47 Hz: Dual Amplitude 3 mm 47 Hz ~ 2000 Hz: Acceleration 20 g |
| Random Vibration | Power Spectral Density 0.32 G²/Hz[1]
Power Spectral Density 0.2 G²/Hz[2] |
| Shock | 1200 m/s2 [1], 980 m/s2 [2] |
| Acceleration | 490 m/s2[1], 250 m/s2[2] |
| Quality Grade | J Grade |
| Operating Temperature | -55℃ ~ 125℃ |
| Relative Humidity | At 40℃ ± 2℃: 92% ~ 98% |
| Air Tightness[1] | 2 MPa |
| Flameproof[2] | 800℃, 700 s |
| Operating Pressure | 0.1 MPa ~ 4×10-3 Pa |
| Rain Test[1] | Rainfall 5 mm/min |
Electrical Ratings
Contact Characteristic
|
Contact Diameter |
Rated Operating Current | Characteristic Impedance | Contact Resistance (Before Life) | Number of Contacts | |
| 64 |
142 |
||||
|
8#Coaxial |
– | 75 Ω | – | 2 | 2 |
| Ф0.77 mm | 3 A | – | ≤15 mΩ | – |
92 |
|
Ф1 mm |
5 A | – | ≤7 mΩ | 62 | 36 |
| Ф1.6 mm | 13 A | – | ≤5 mΩ | – |
8 |
|
Ф3.2 mm |
40 A | – | ≤3 mΩ | – | 4 |
| Shielding |
Less than 100MHz, ≥ 60 dB |
||||
Insulation Resistance
|
Code |
Normal Temperature | High Temperature | High Temperature【2】(800℃) | Humid and Heat |
| JF22-64 | ≥1000 MΩ | ≥50 MΩ | – |
≥50 MΩ |
|
JF22A-142 |
≥3000 MΩ | ≥500 MΩ | ≥5 MΩ |
≥100 MΩ |
Dielectric Withstand Voltage (50 Hz)
|
1 atm |
High Temperature | Humid | Low Pressure |
| 1000 Vrms | 500 Vrms | 250 Vrms |
200 Vrms |
How to Order
Eg: JF22-64ZM3: This indicates a JF22 type 64 pin triple-layer sealed socket.
Plug and Socket Specifications
|
Quality Grade |
Plug Type | Feature | Part Number of Socket | Feature |
| J Grade | JF22-64TJ | Dual Cable Outlets | JF22-64ZM3 |
Sealed Socket |
|
JF22A-142TJ |
Dual Cable Outlets | JF22A-142ZK |
Flameproof Layer |
JF22 Series Contact Arrangement
JF22-64
 |
JF22A-142
 |
Contact Crimp
|
Contact Specifications |
Diameter | Inner diameter of socket | Outer diameter of socket | Adaptive Wires Section Area | Adaptive American Standard Cable
AWG |
Adaptive Wires Insulation Outer Diameter |
Removal Tool |
|
22D# |
Φ0.77 mm | 0.8 mm | 1.23 mm | 0.08 mm2
0.13 mm2 0.21 mm2 0.33 mm2 |
28
26 24 22 |
0.76 mm ~ 1.37 mm | M81969/14-01 |
| 20# | Φ1 mm | 1.1 mm | 1.78 mm | 0.21 mm2
0.33 mm2 0.52 mm2 |
24
22 20 |
1.02 mm ~ 2.11 mm |
M81969/14-10 |
|
16# |
Φ1.6 mm | 1.7 mm | 2.60 mm | 0.52 mm2
0.82 mm2 1.31 mm2 |
20
18 16 |
1.65 mm ~ 2.77 mm | M81969/14-03 |
|
10# |
Φ3.2 mm | 3.40 mm | 4.65 mm | 3.0 mm2
4.8 mm2 |
10 | 3.42 mm ~ 4.12 mm |
M81969/14-05 |
8#Coaxial Contact Crimp
|
Contact Type |
Military Specification Number for Crimping Tools | Corresponding Locator Number | |
| 8#Dual Coaxial | Inside | M22520/2-01 |
K709 |
|
Middle |
M22520/5-01 | Y631 | |
|
Outside |
|||
Dimension
Plug (JF22-64TJ)
 |
Socket (JF22-64ZM3)
 |

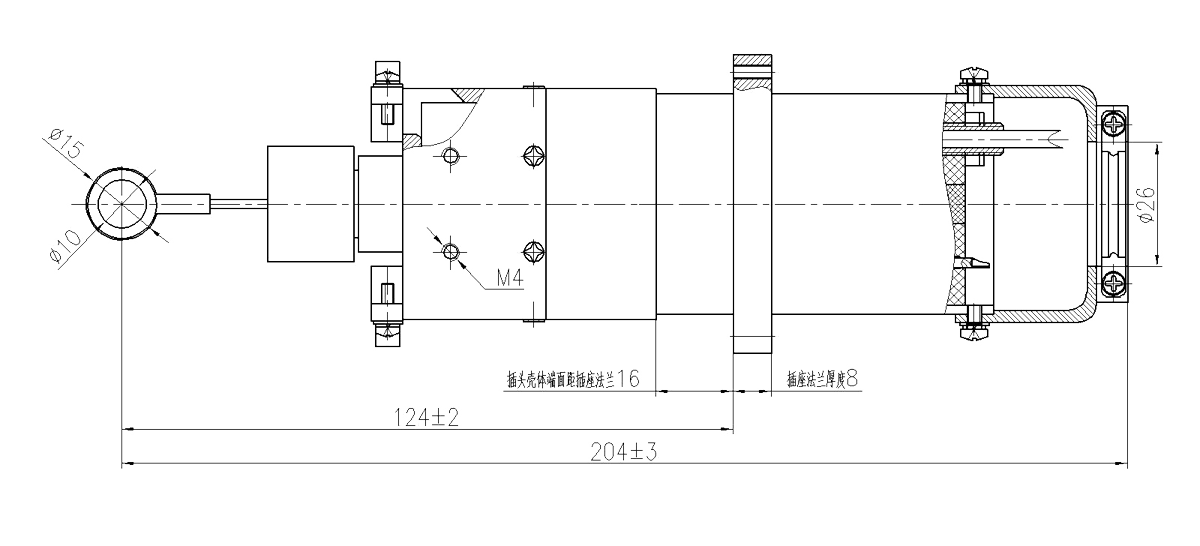

Dimension after Mating (JF22-64)
 |

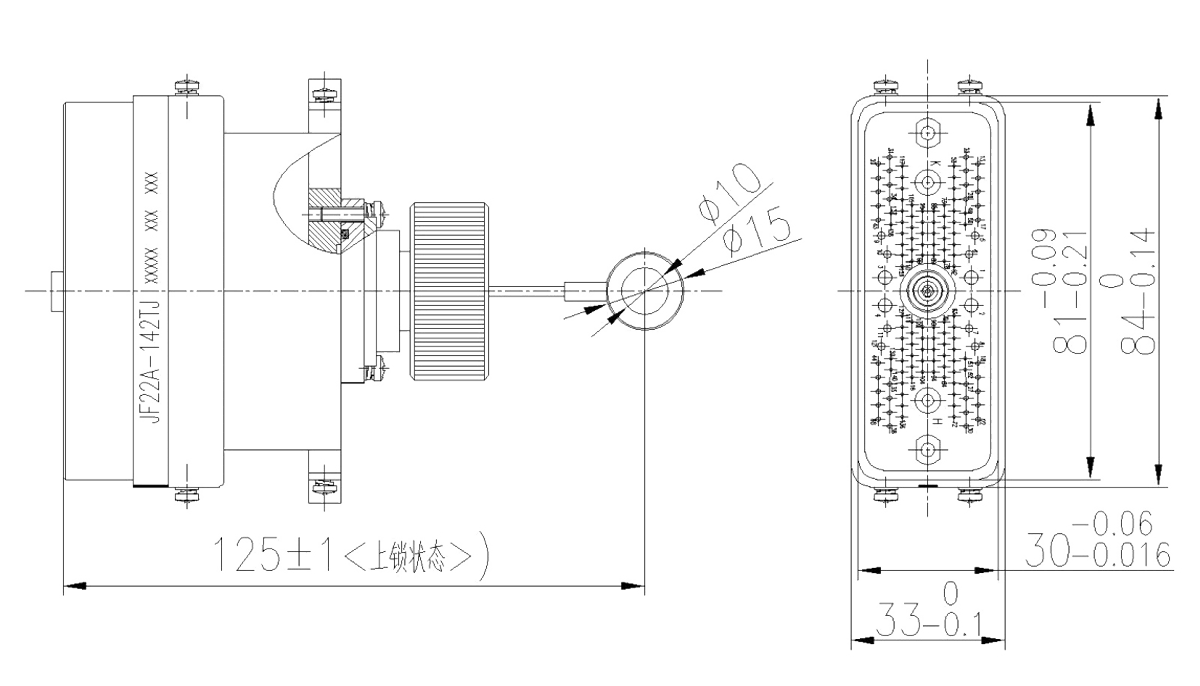

Plug (JF22A-142TJ)
 |

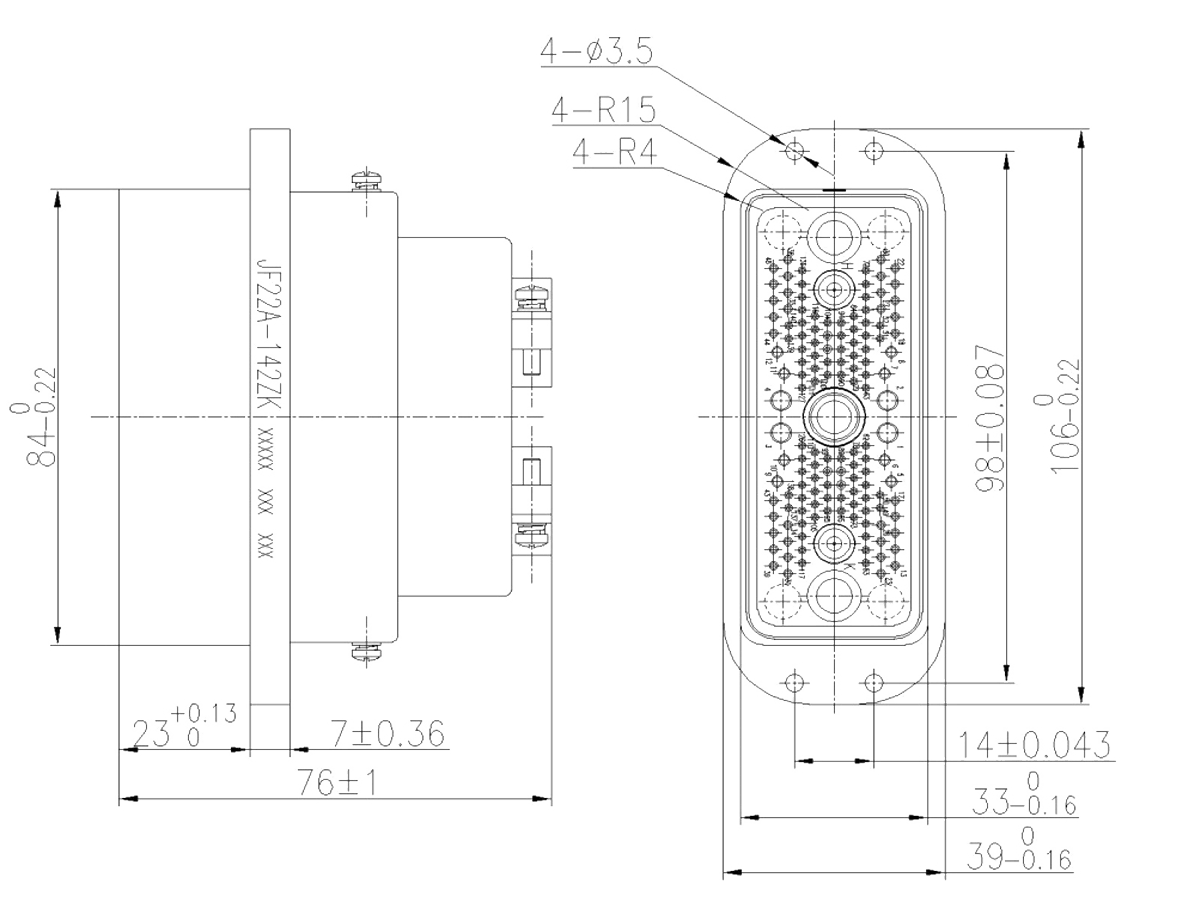

Socket (JF22A-142ZK)
 |

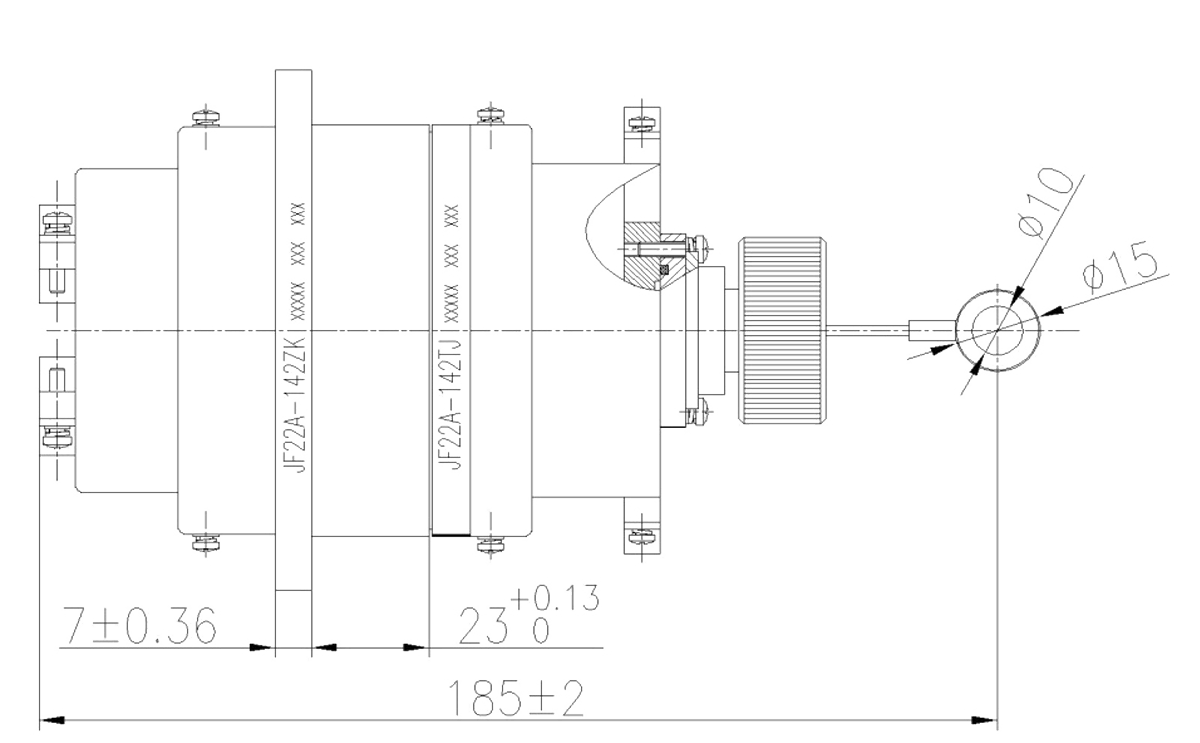

Dimension after Mating (JF22A-142)
 |
